FUTEK LLB300 50,000lb High Capacity Load Cell FREE SHIPPING

LLB300

50,000lb High Capacity Load Cell

-

USED AND UNABLE TO TEST SO BEING

SOLD AS-IS FOR PARTS / REPAIR

NO RETURNS

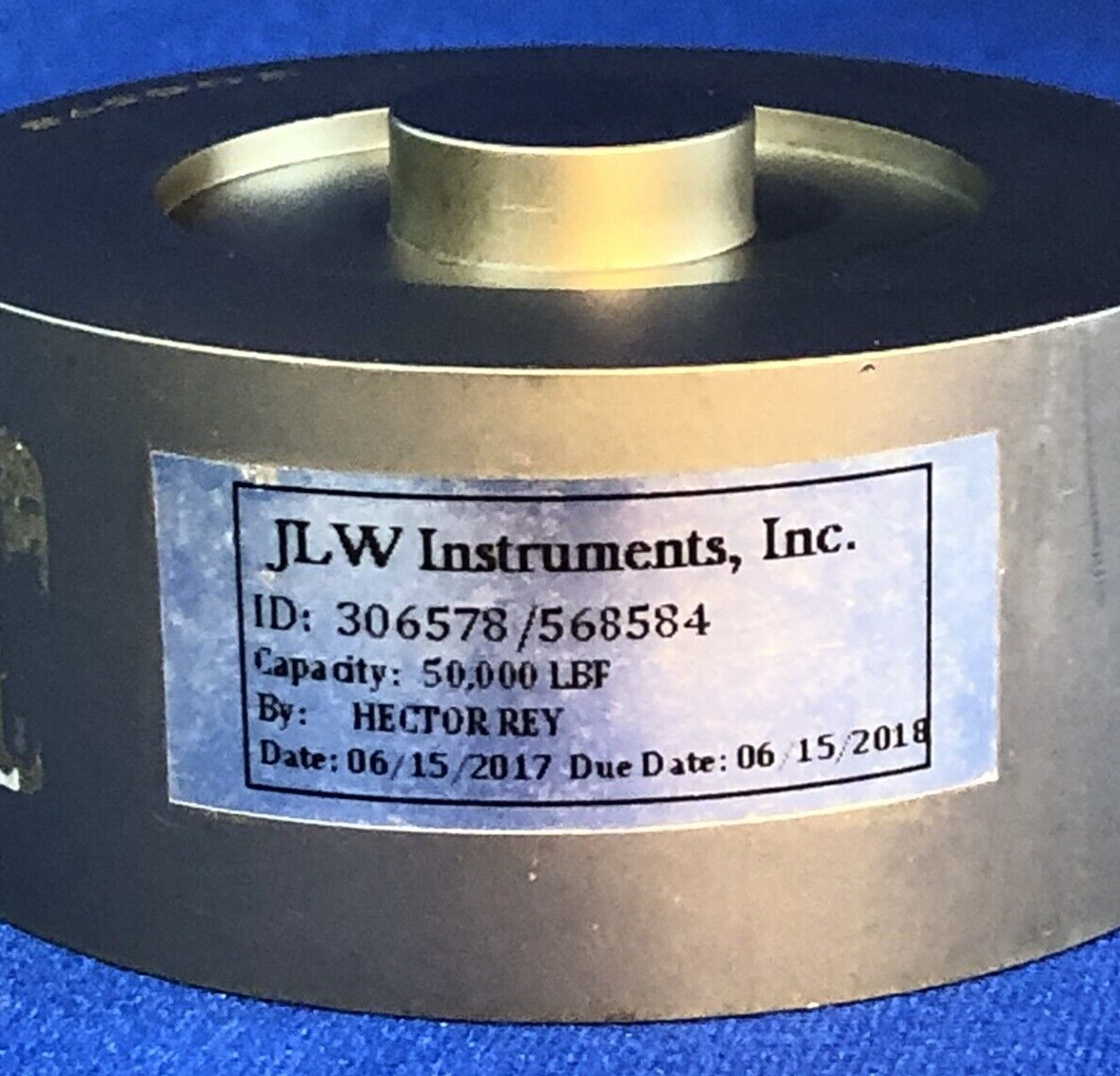

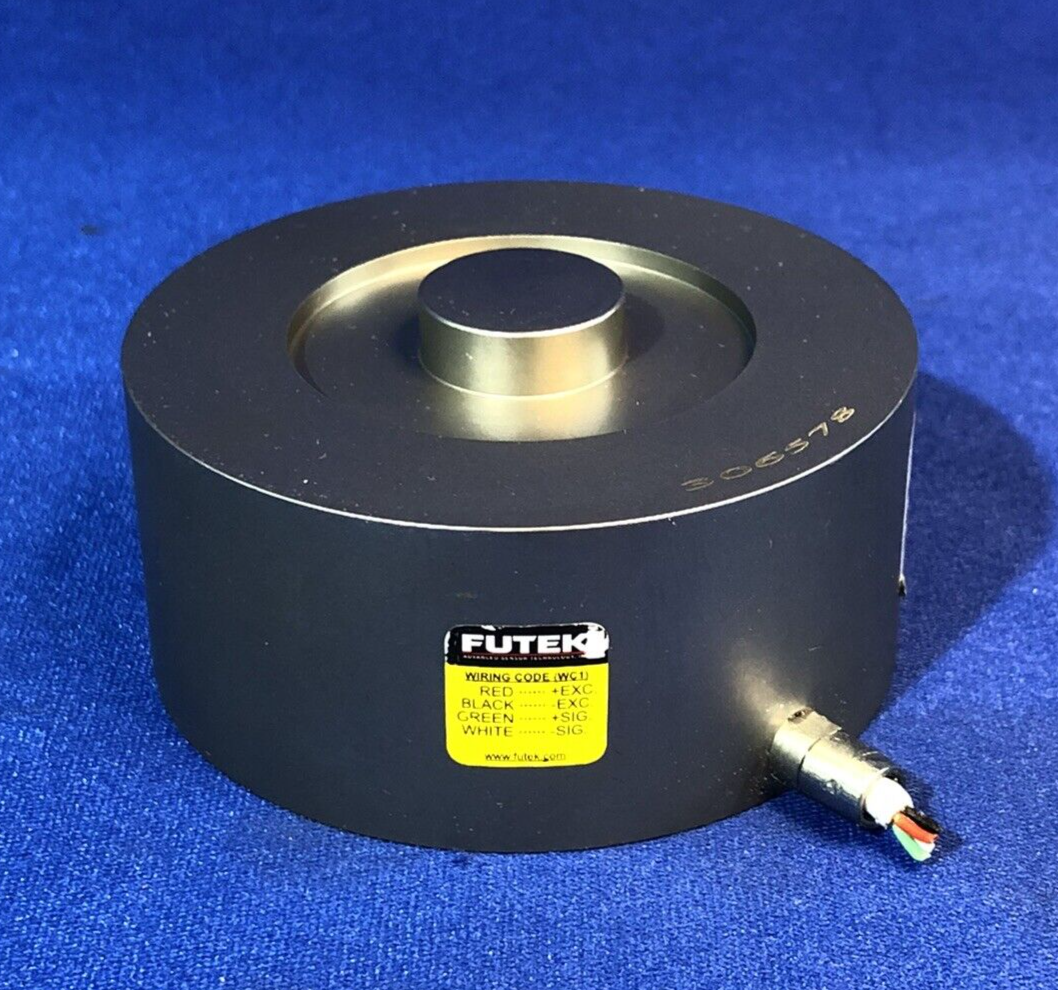

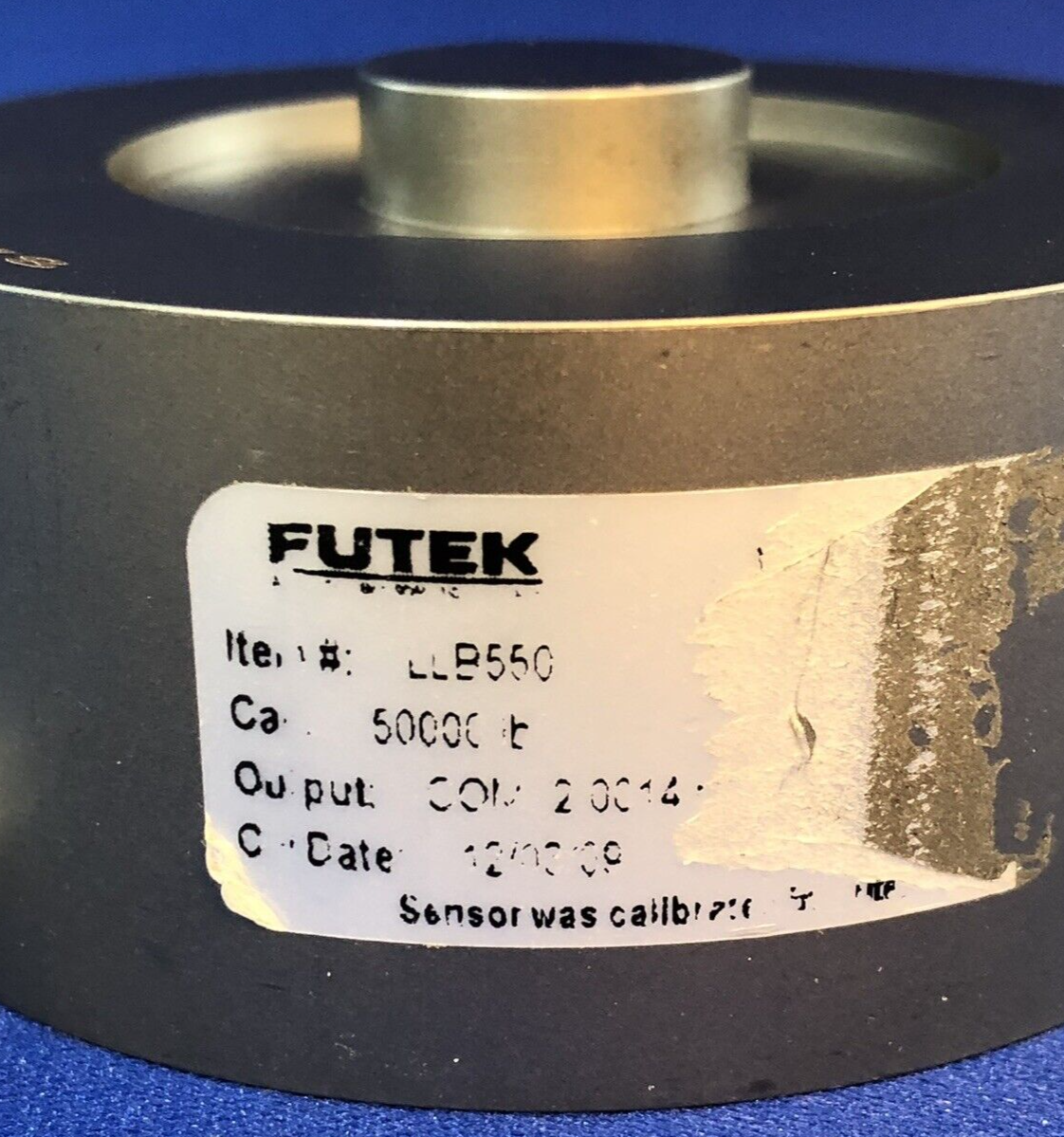

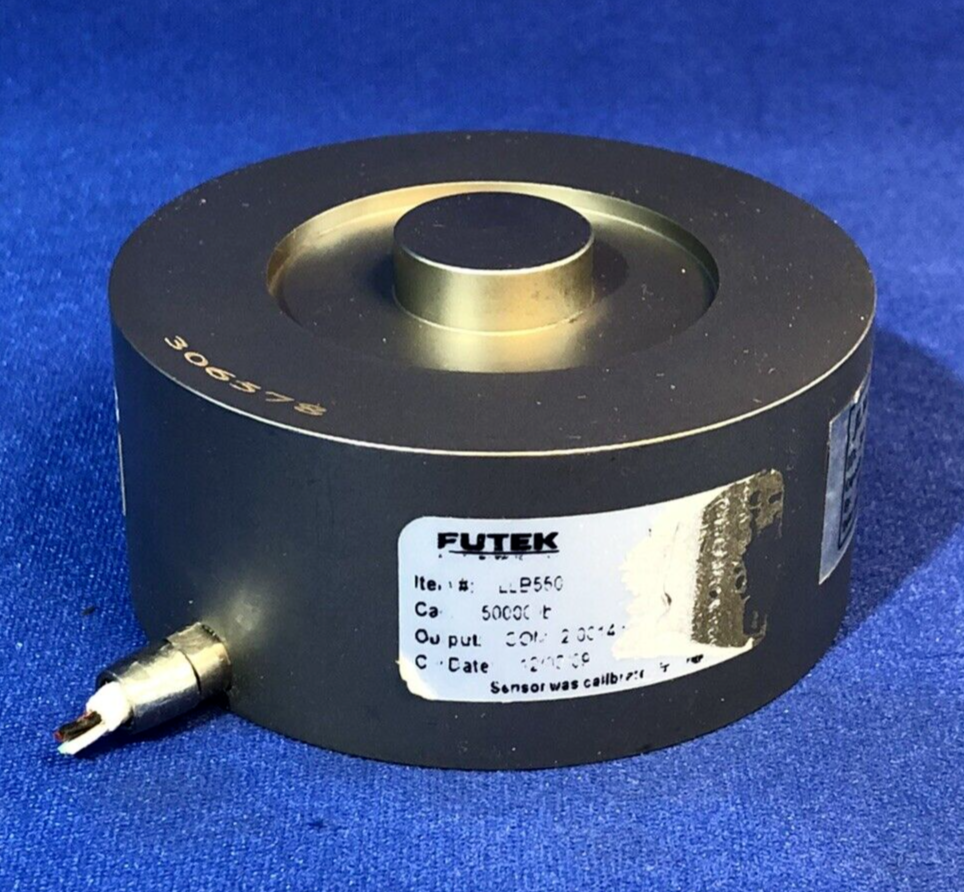

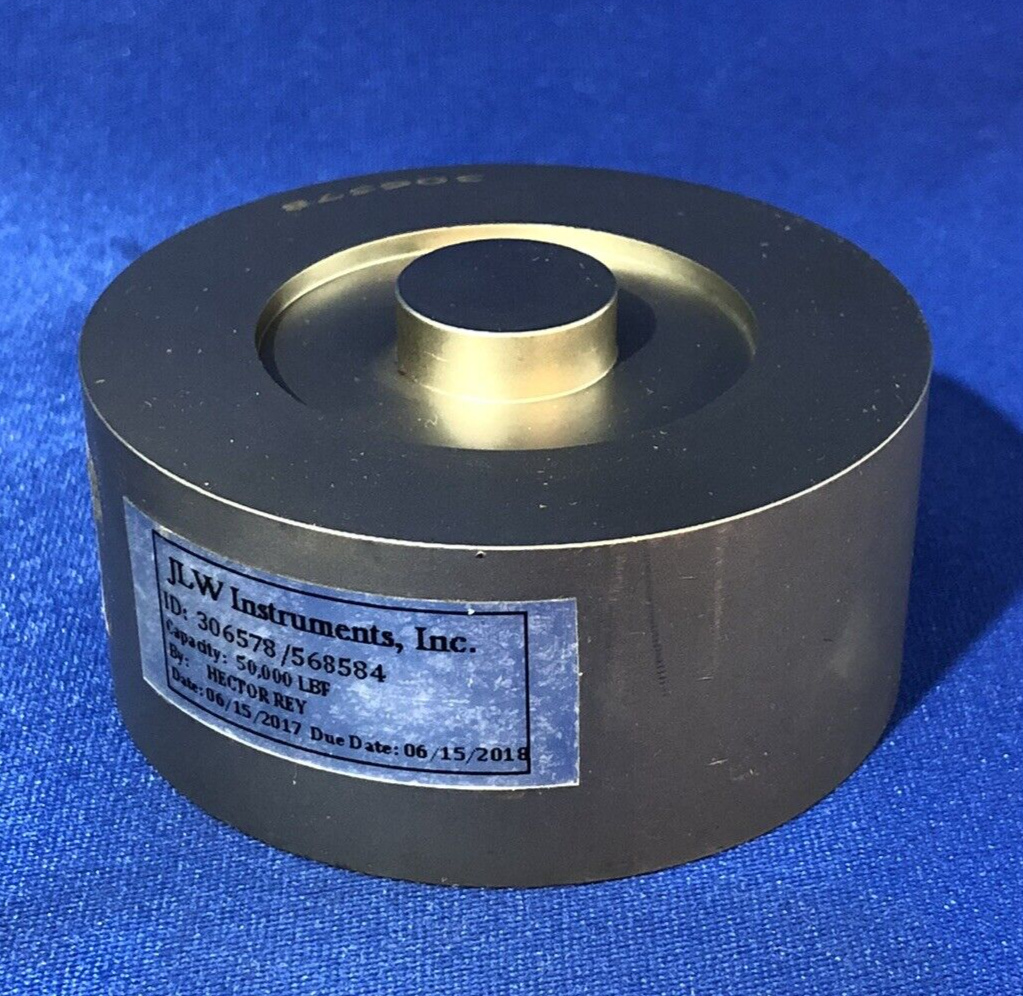

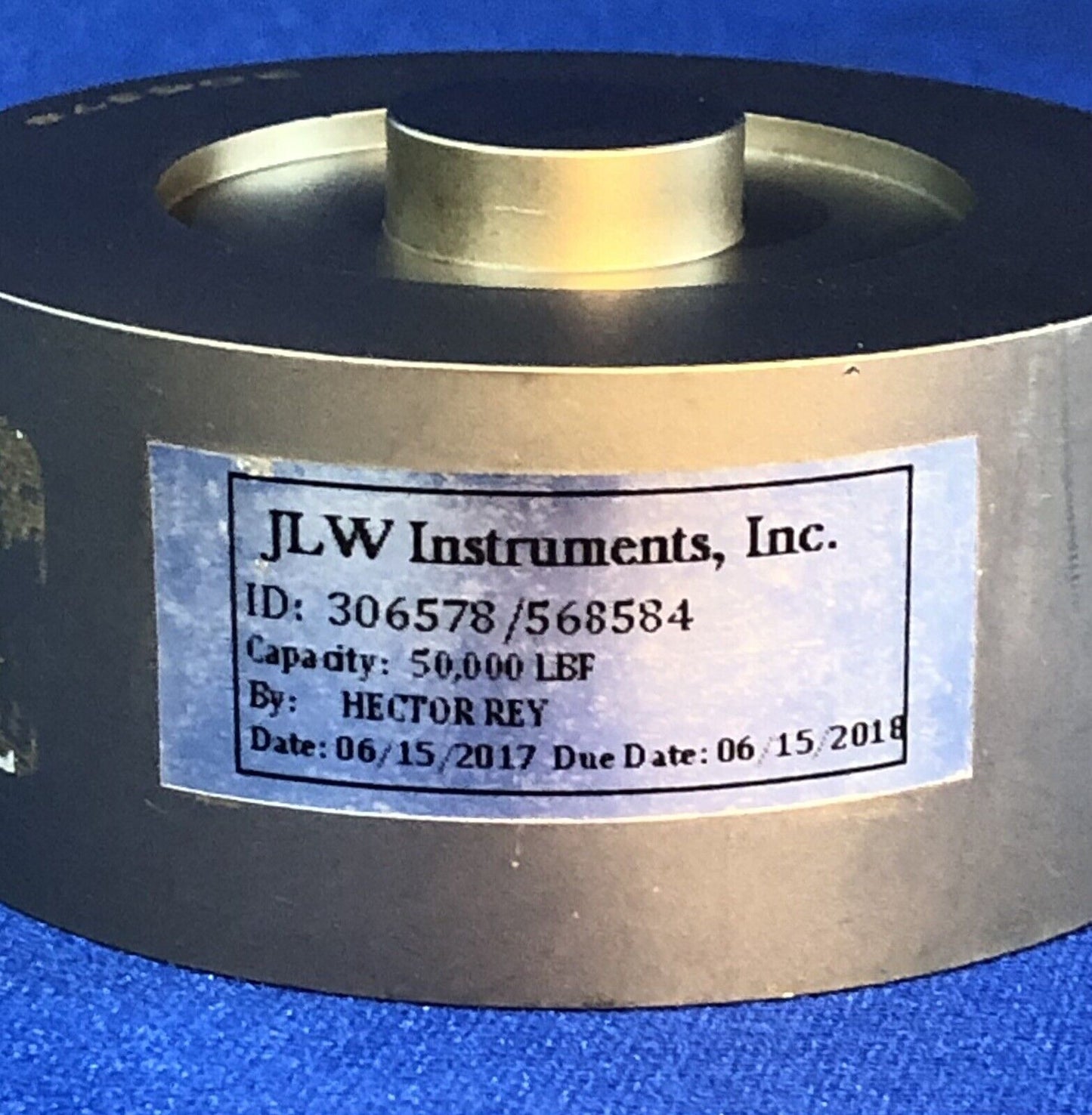

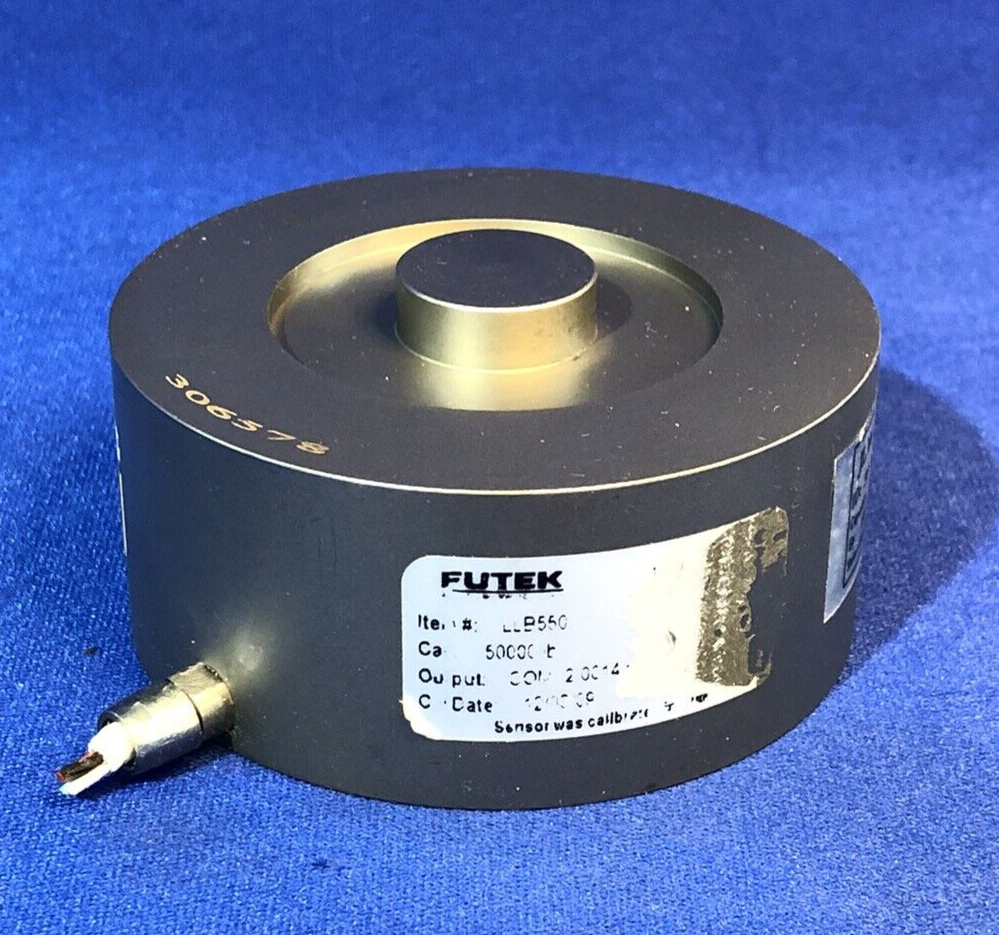

FUTEK LLB300

  50,000lb High Capacity Load Cell

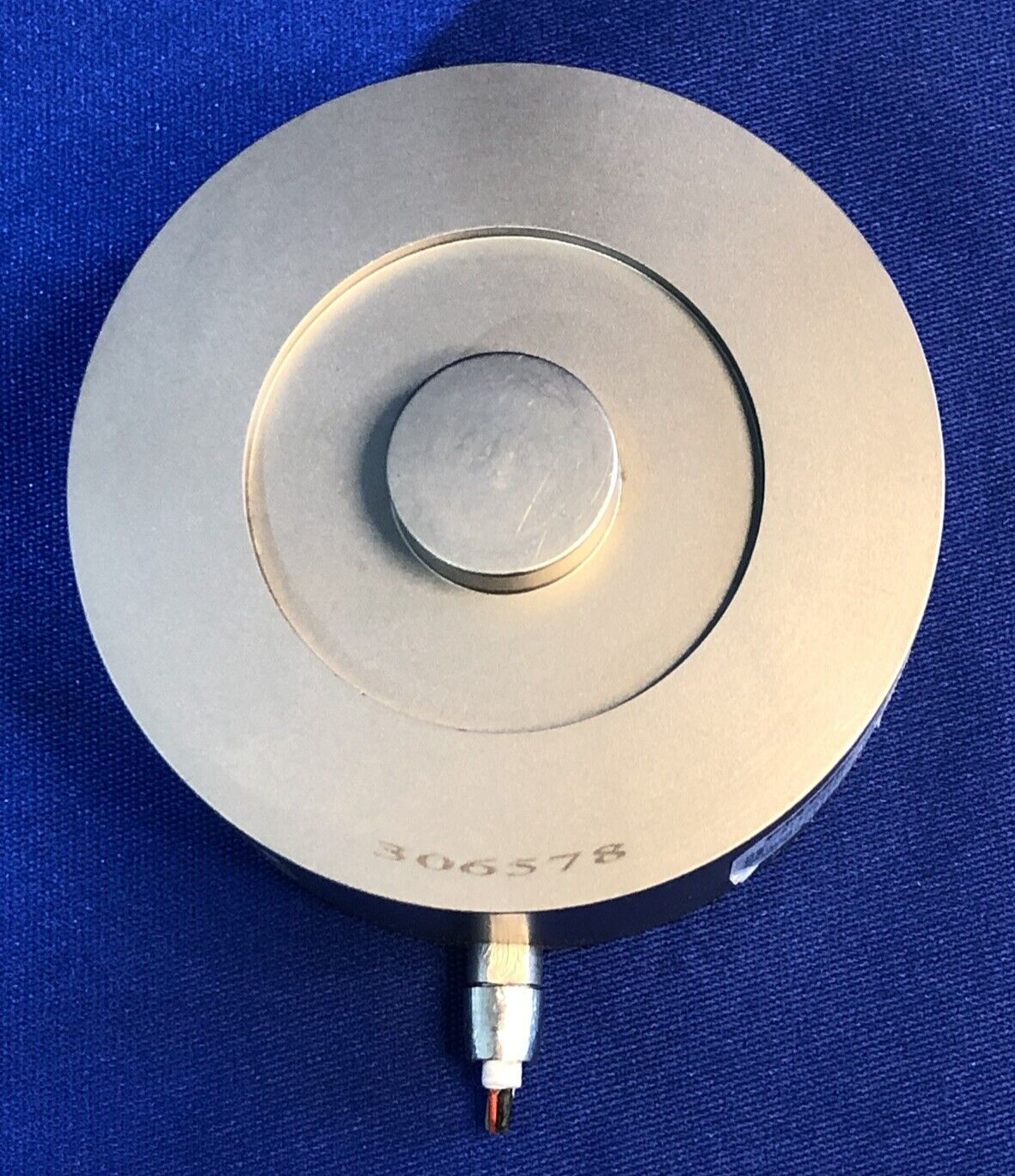

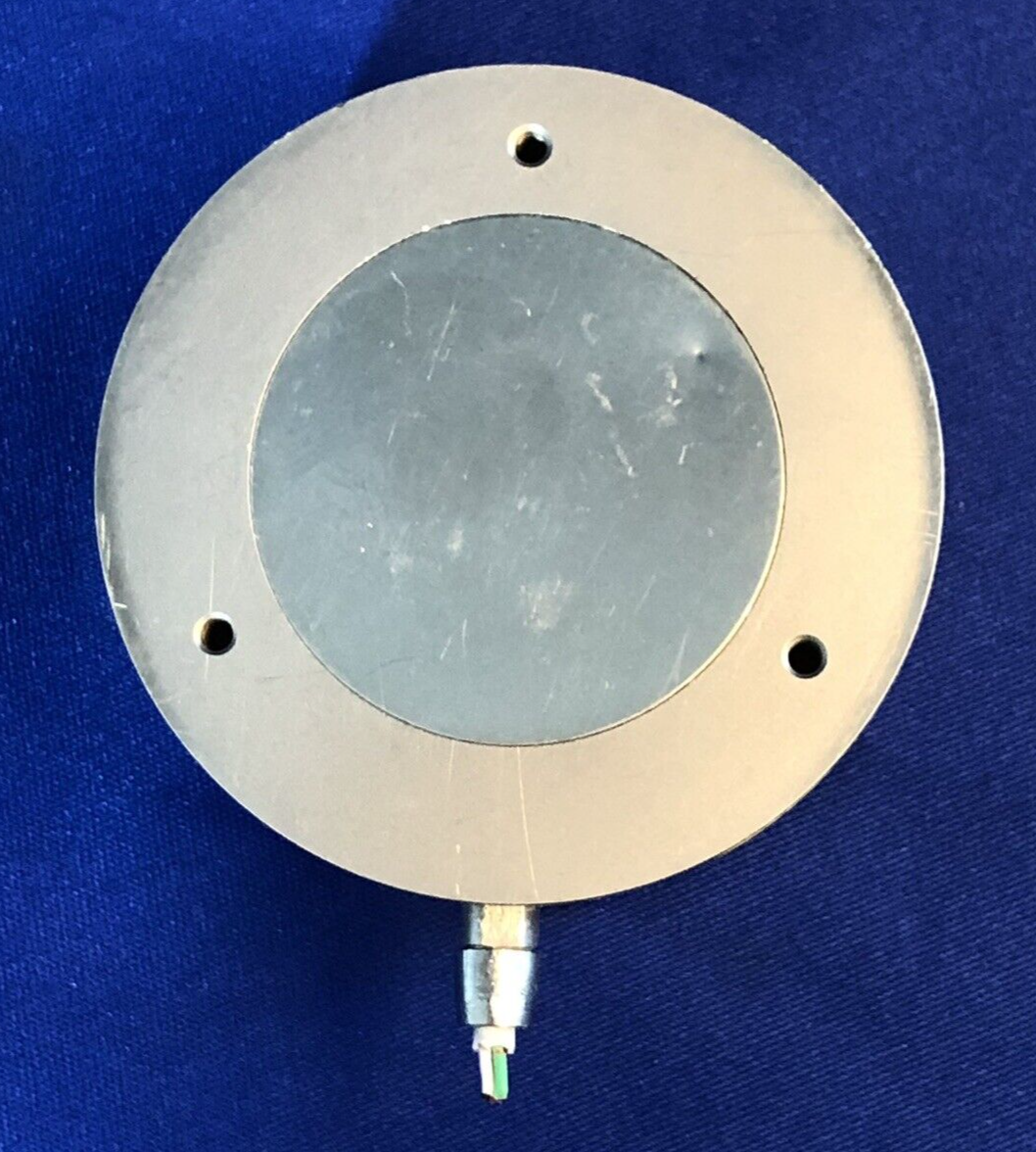

With a package that stands at 2.98”  [75.7mm] in diameter and 1.5” [38.1mm] in height, the LLB550 Load Button Load Cell is an extraordinarily accurate sensor that punches well above its size with a capacity of 50,000lbs [22680kg]. This diverse and durable sensor solution features three mounting holes built for press or inline compression applications, such as measuring loads on a turbine shaft or gauging forces on a CNC workpiece.

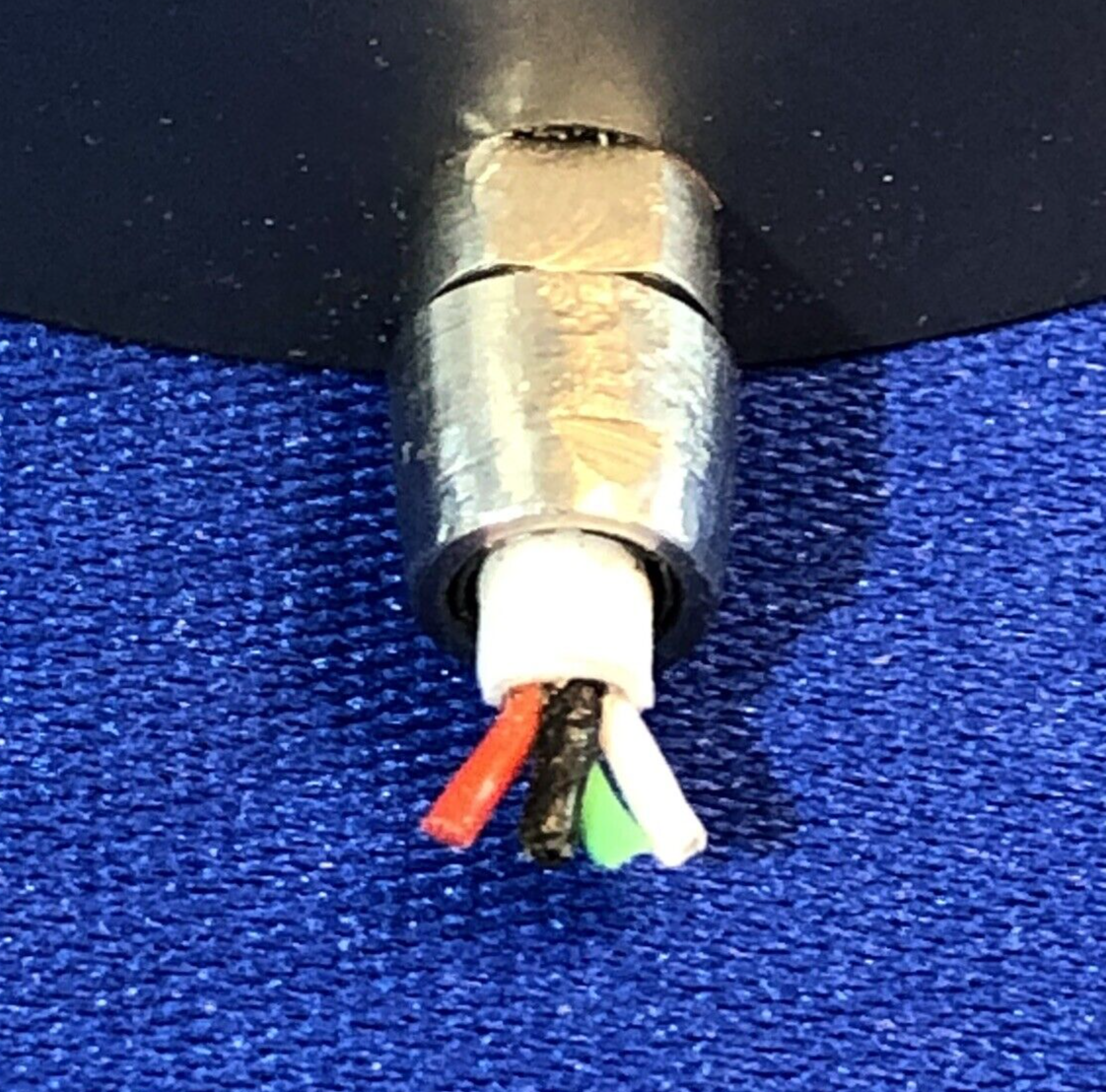

Features   -  Ultra low deflection   -  Robust strain relief   -  17-4 PH stainless-steel construction   -  For use in compression   -  Utilizes metal foil strain gauge technology   -  Includes bottom mounting provisions

Specifications   CHANNEL MIN TYP MAX UNIT Calibration Excitation 1   10   Vdc Shunt Calibration 1   100   kOhm Excitation 1 1   18 Vdc Input Resistance 1   700   Ohms nom. Insulation Resistance 1 500     Mohms @ 50 Vdc Safe Overload 1     150 % of R.O. Capacity 1     50000 lbs Hysteresis 1 -0.25   0.25 % of R.O. Nonlinearity 1 -0.25   0.25 % of R.O. Nonrepeatability 1 -0.1   0.1 % of R.O. Output Resistance 1   700   Ohms nom. Rated Output 1   2   mV/V nom. Compensated Temperature 1 60   160 F Operating Temperature 1 -60   200 F Temperature Shift Span 1 -0.005   0.005 % of Load/F Temperature Shift Zero 1 -0.005   0.005 % of R.O./F Zero Balance 1 -3   3 % of R.O.

Additional Info

  https://media.futek.com/content/futek/files/pdf/productdrawings/llb550.pdf
