Martel Electronics
Martel BetaGauge II Exia Pressure Calibrator Kit (Tektronix 06-0074) SHIPPED
Martel BetaGauge II Exia Pressure Calibrator Kit (Tektronix 06-0074) SHIPPED
Regular price
$460.75
Regular price
Sale price
$460.75
Unit price
/
per
Couldn't load pickup availability
Martel
BetaGauge II Exia
Pressure Calibrator Kit
PN# Tektronix 06-0074
WHY THIS IS BEING SOLD AS-IS :

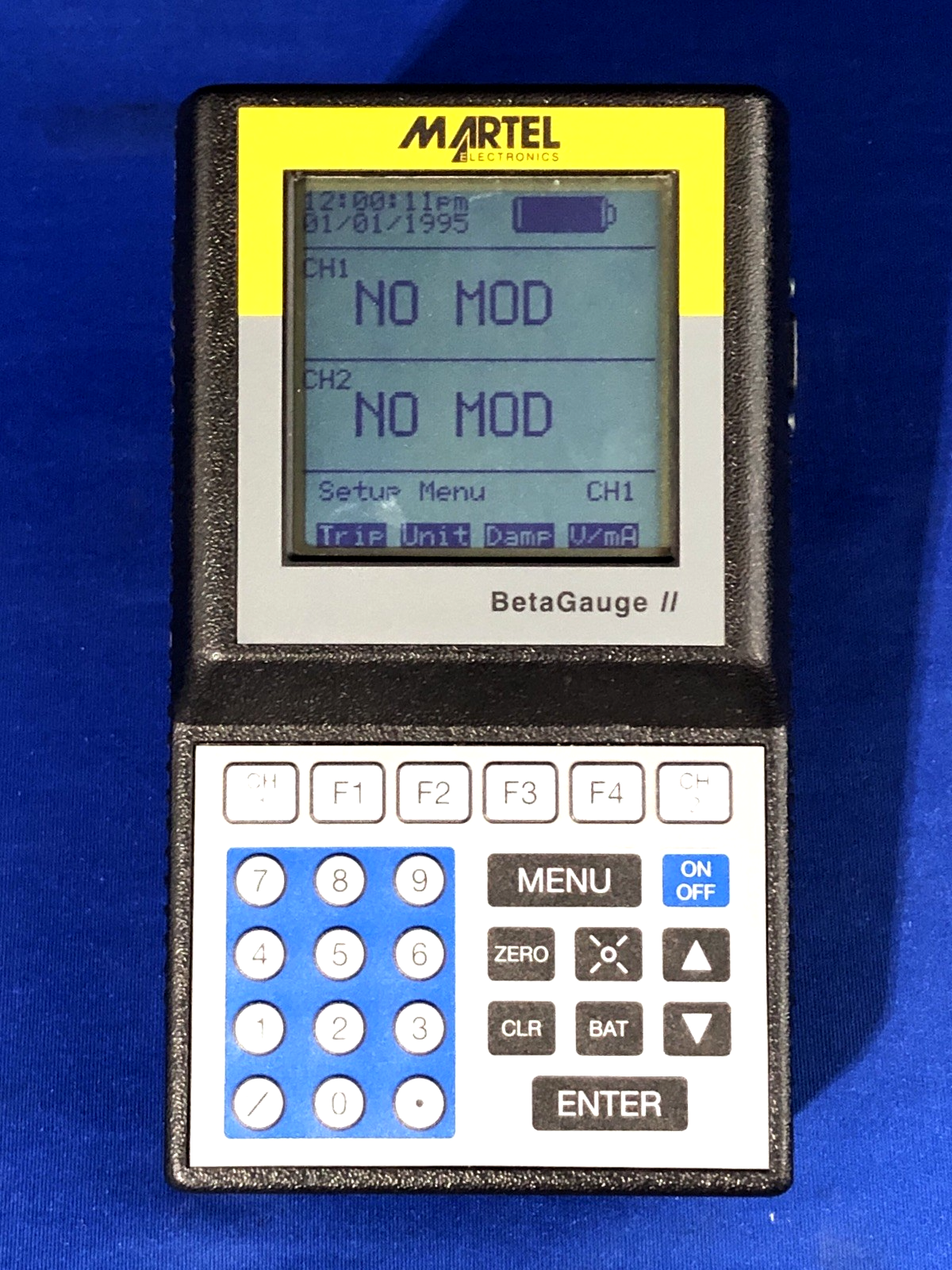

This kit came in from one of our local manufacturing clients. Unit is in very good physical condition and powers up normally. Battery appears to be charging with included AC power supply. However since we cannot test any further we cannot guarantee full functionality/accuracy therefore it is being
SOLD AS-IS / NO RETURNS
BetaGauge II Exia Pressure Calibration Kit

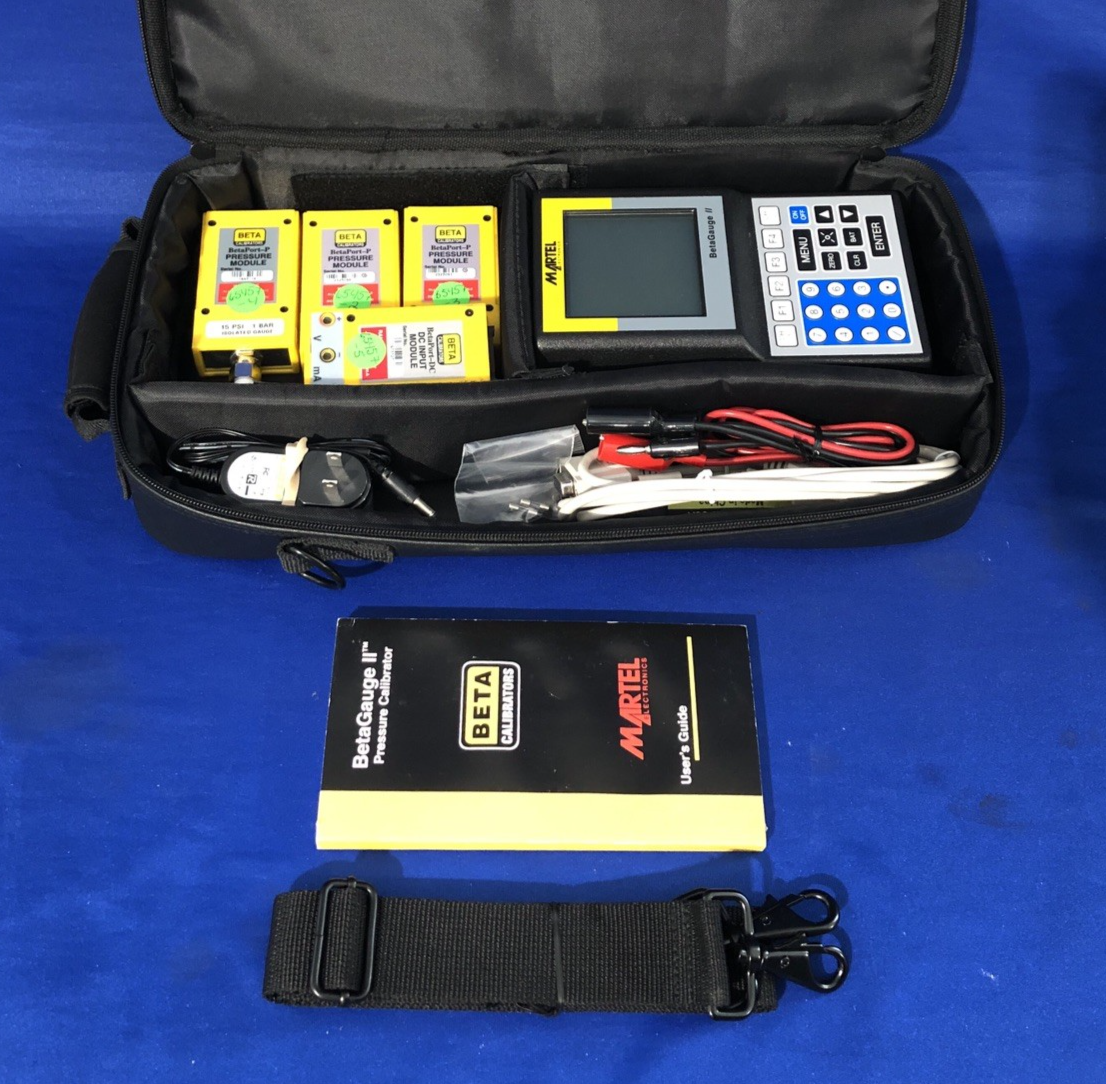

Listing includes the following:

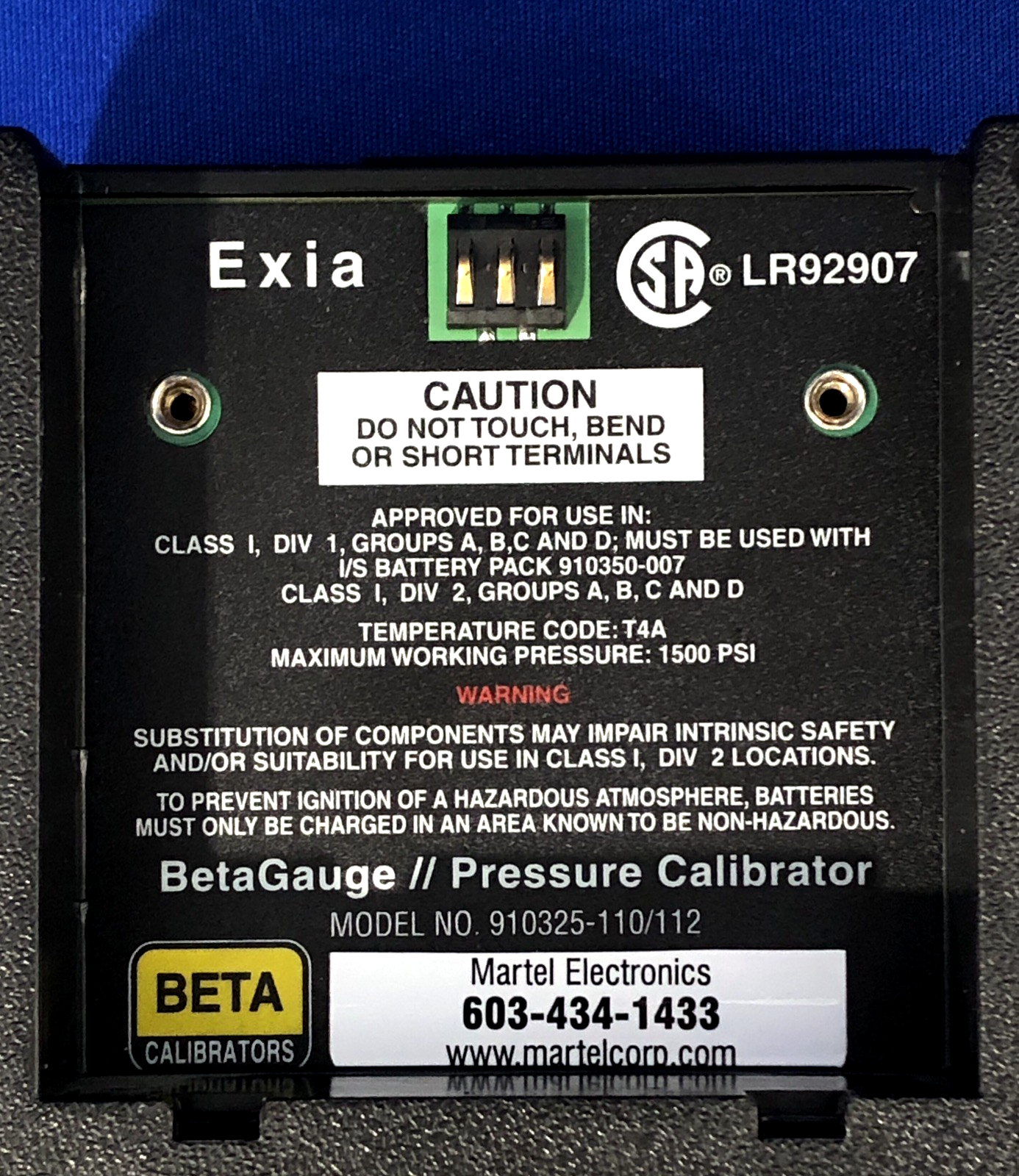

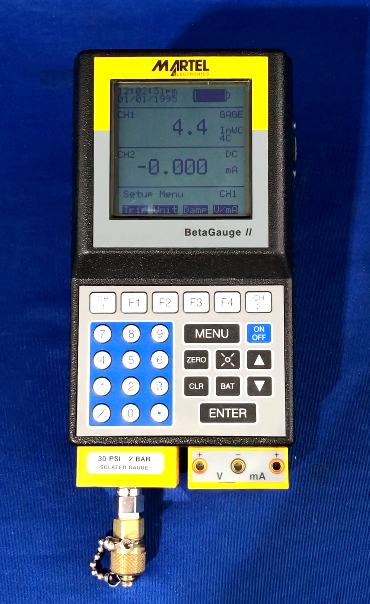

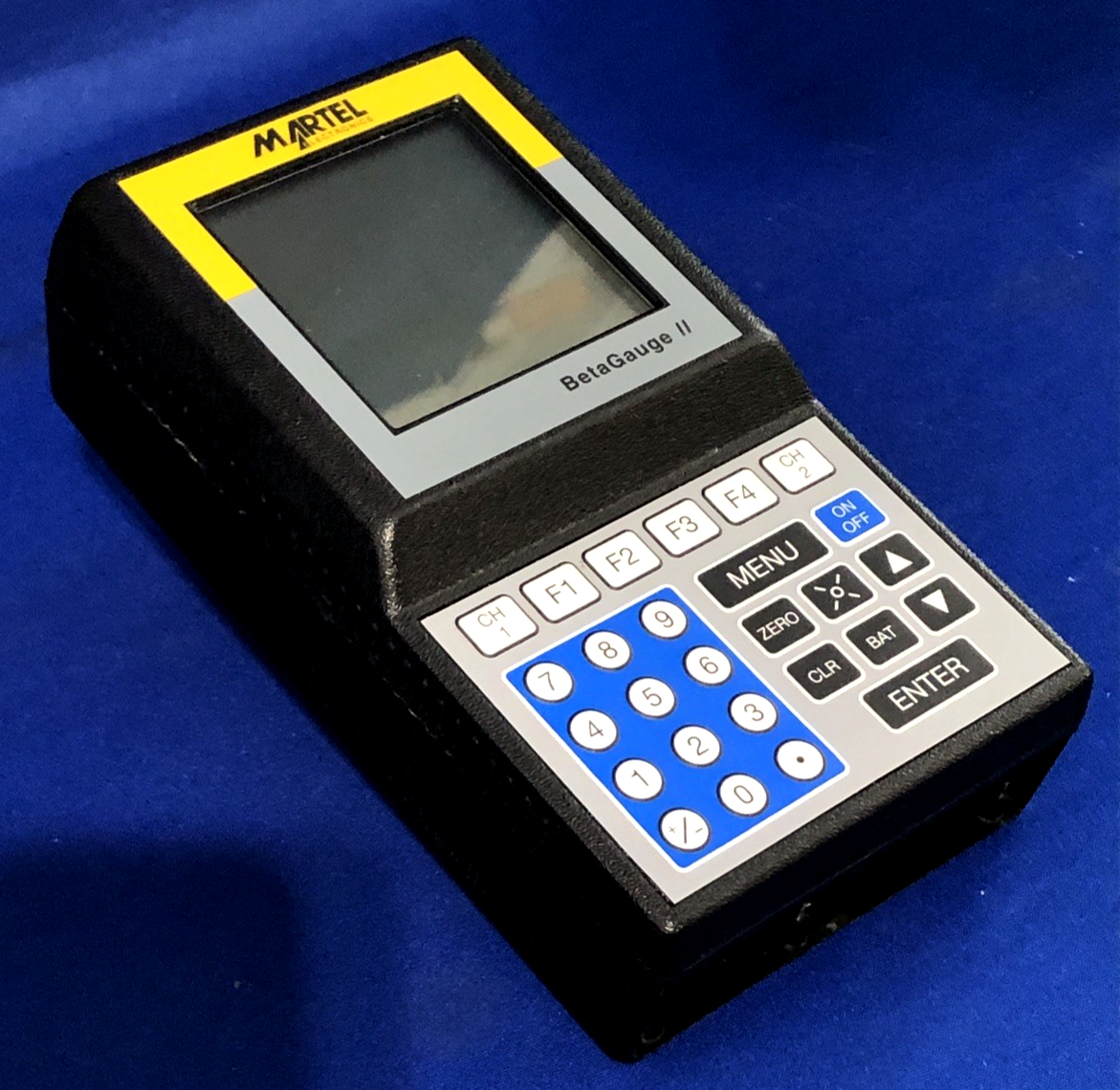

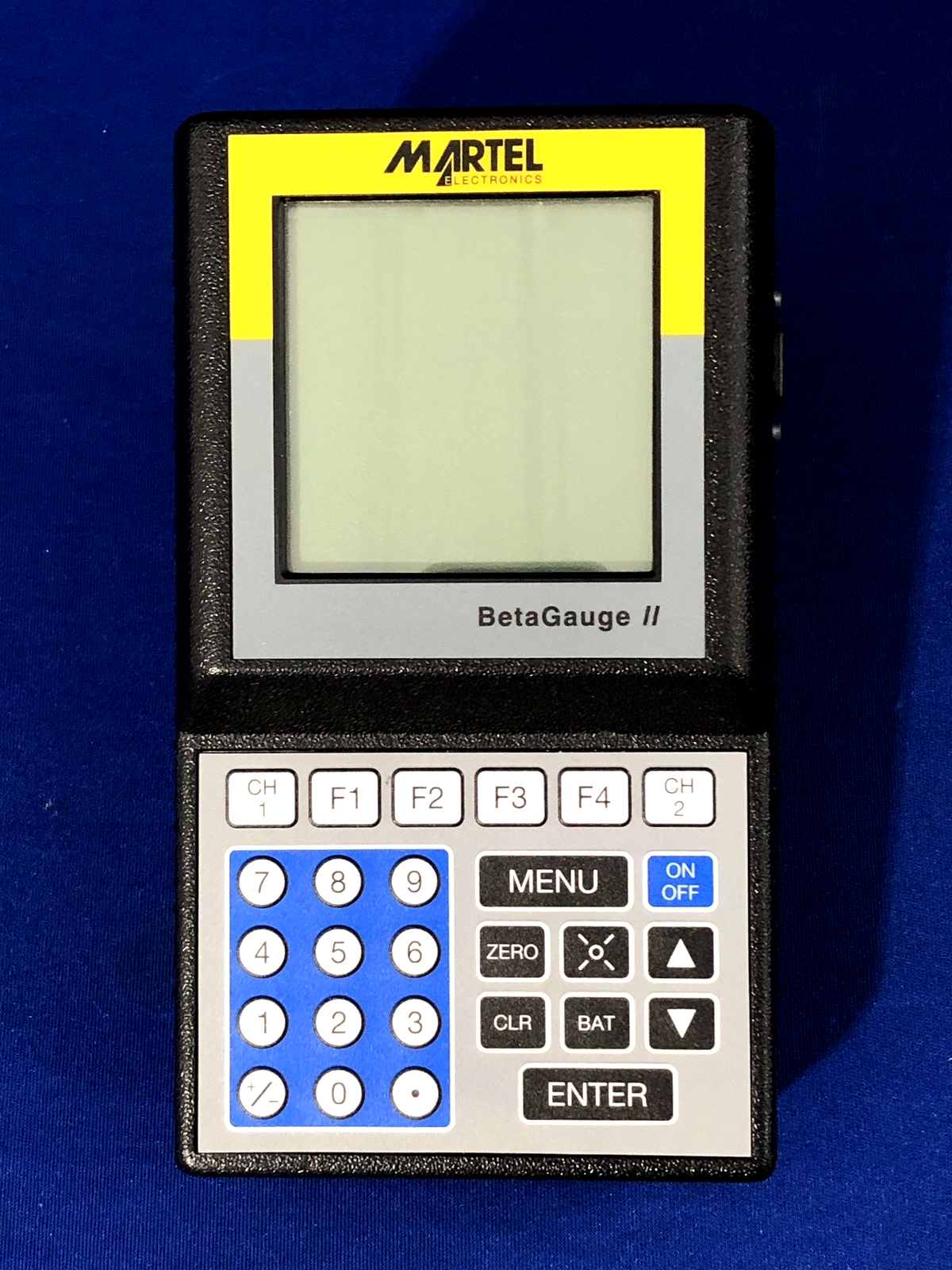

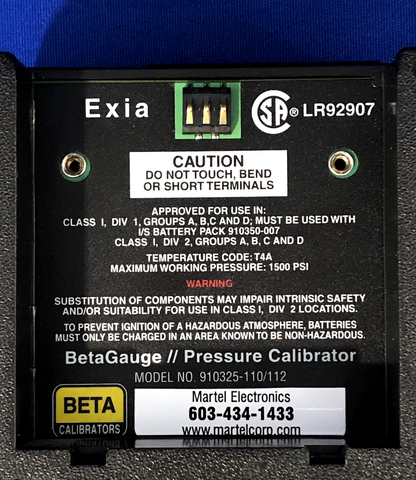

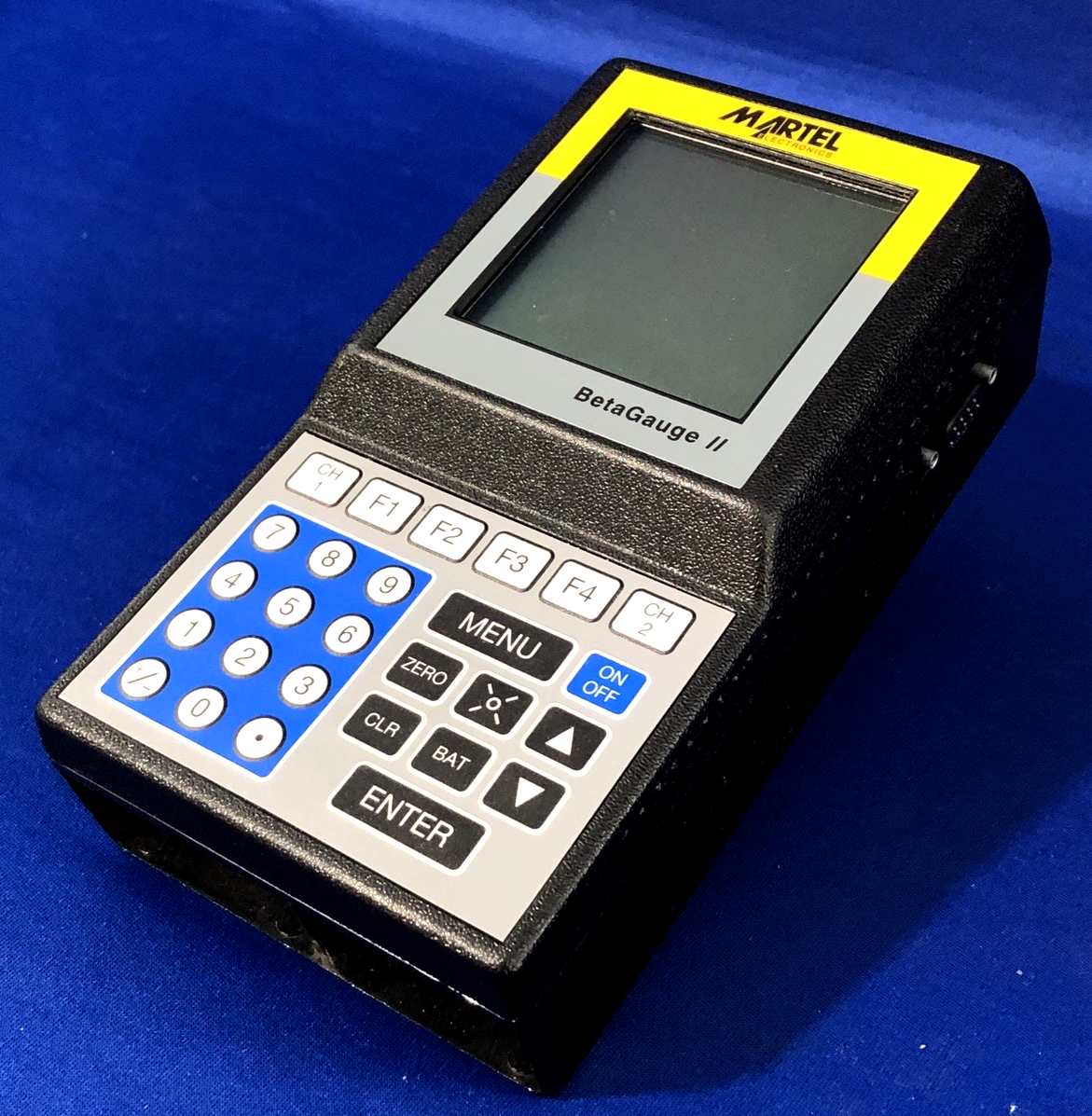

Betagauge II Calibration Unit

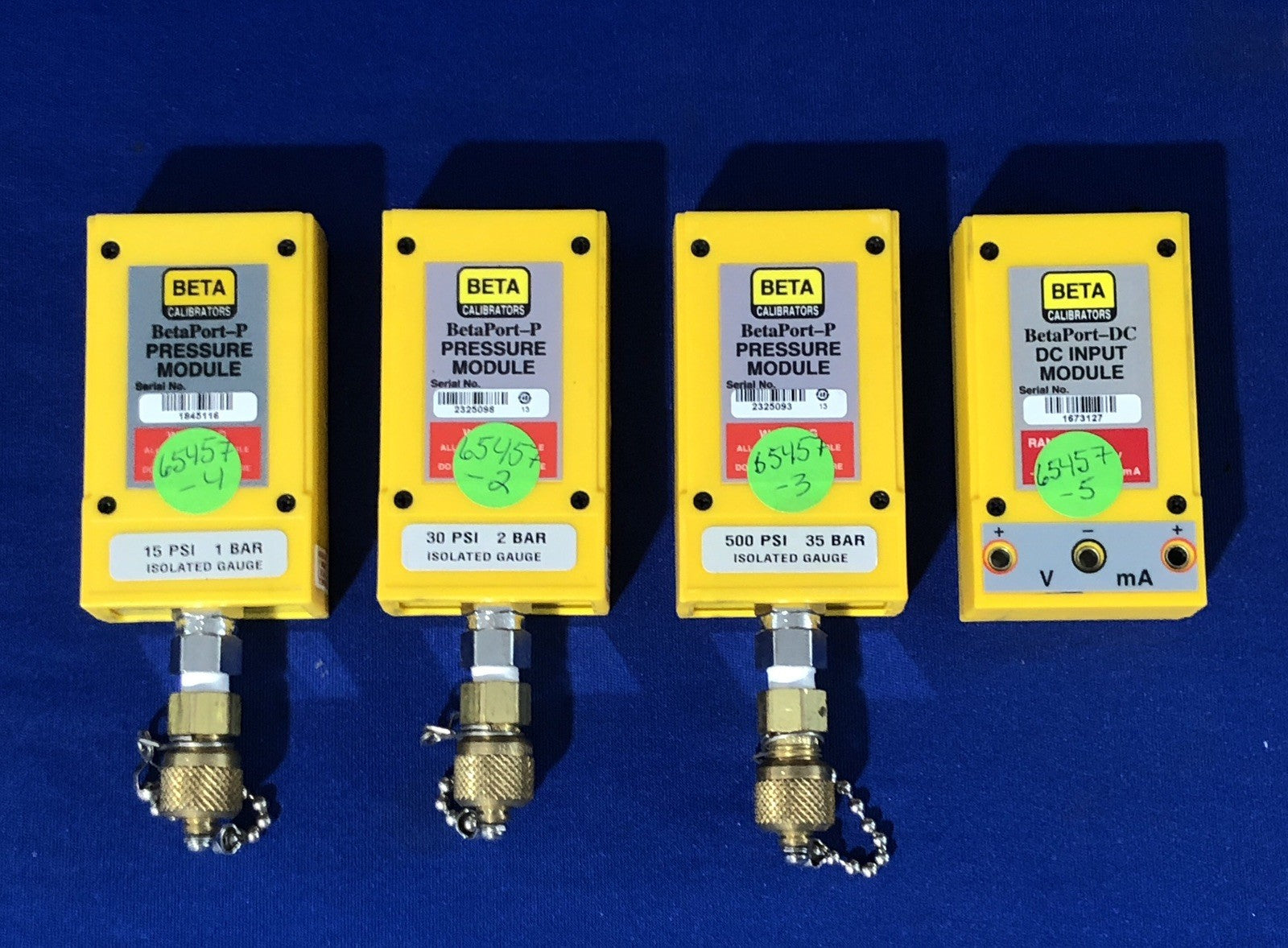

BetaPort-DC Input Module
BetaPort-P 15psi/1bar Pressure Module
BetaPort-P 30psi/2bar Pressure Module
BetaPort-P 500psi/35bar Pressure Module

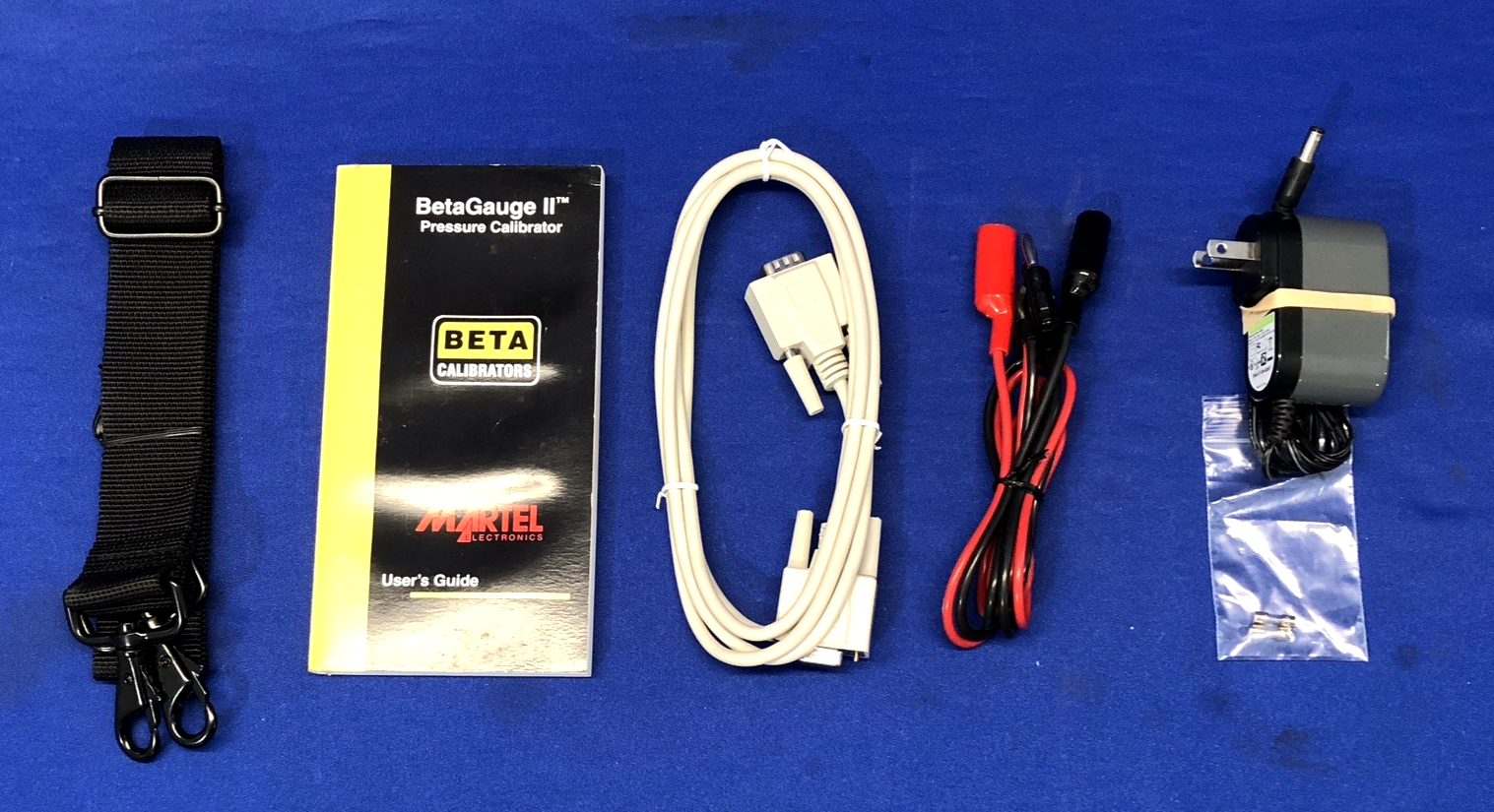

Data cable
Test leads

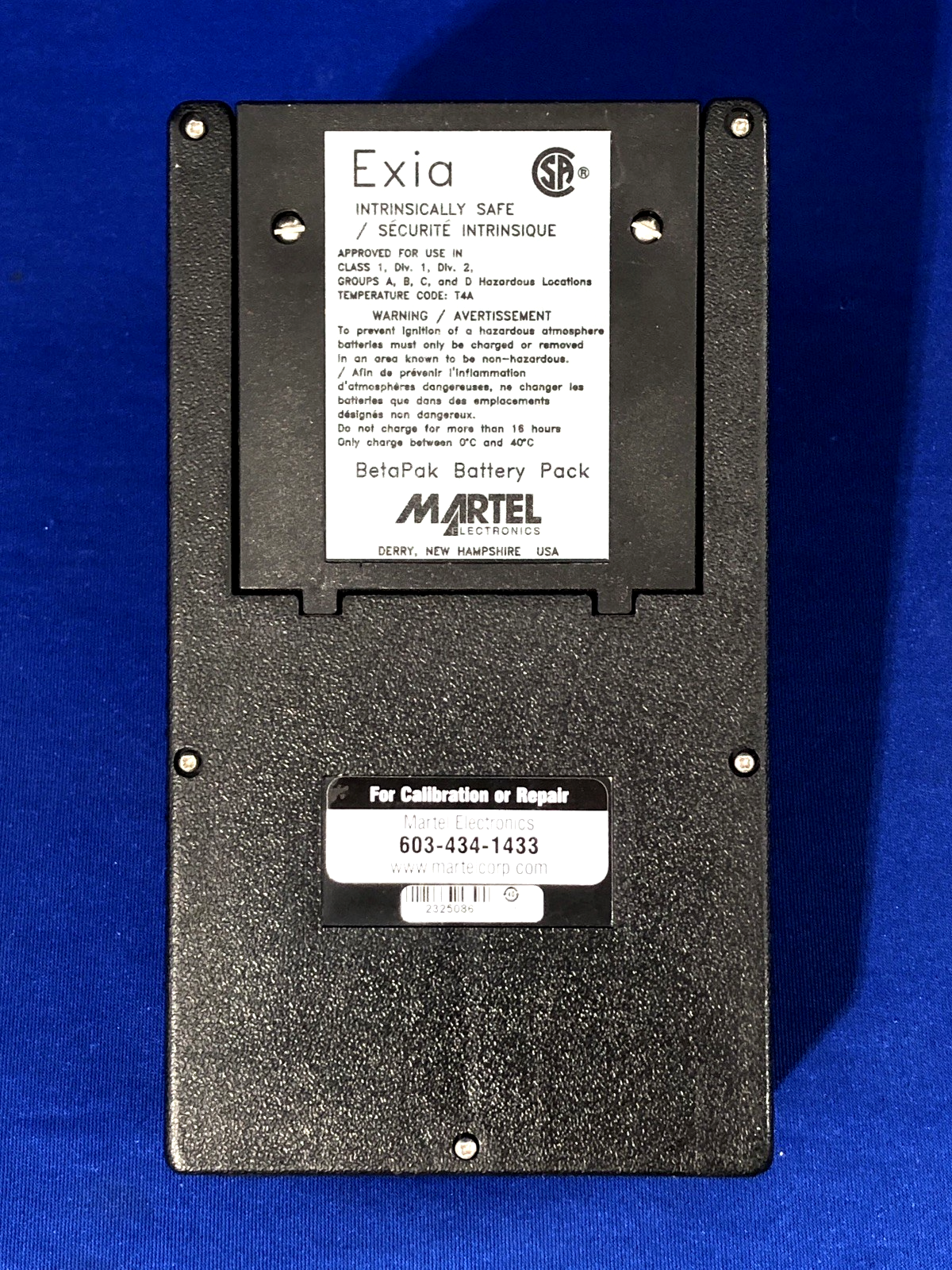

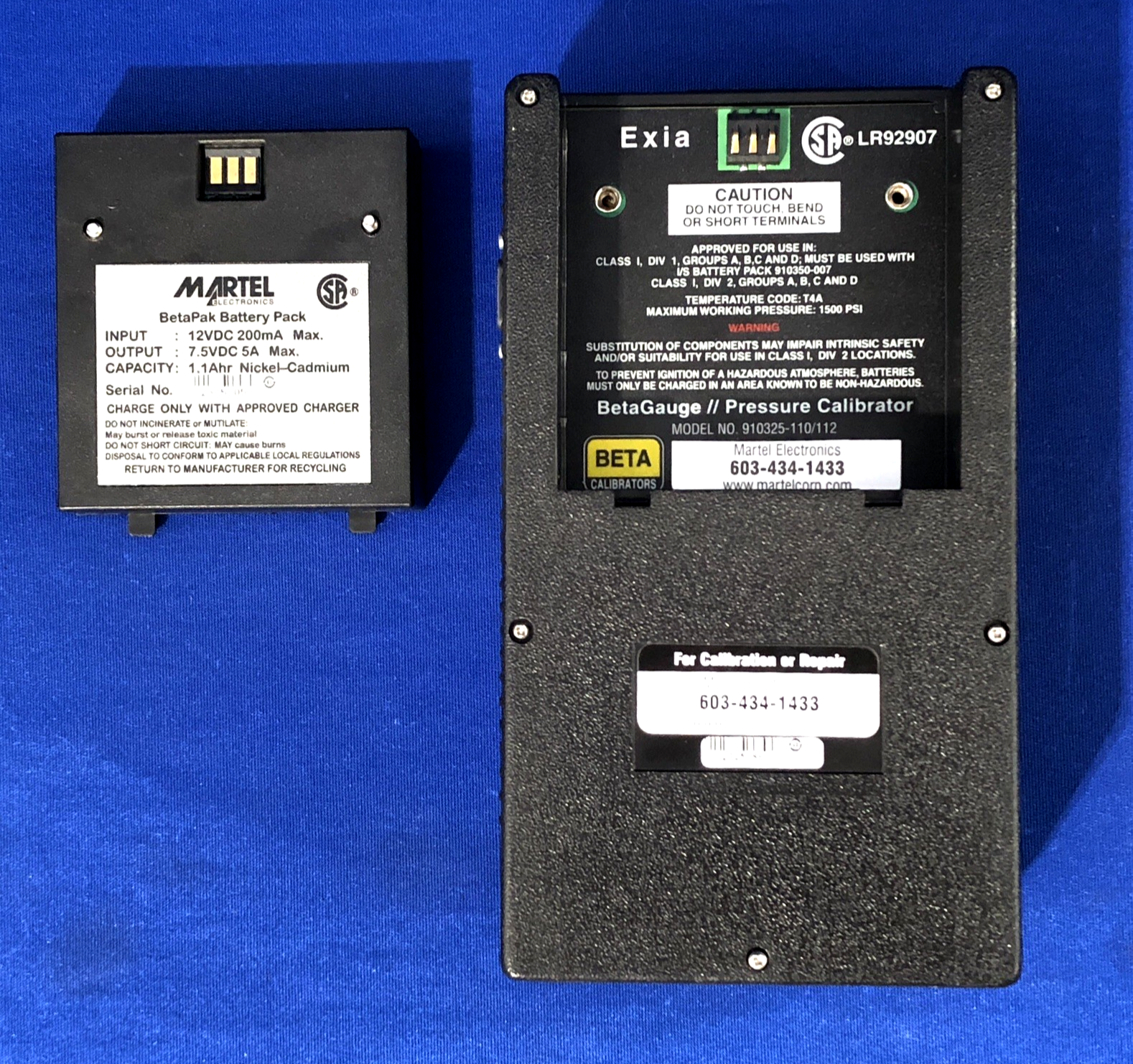

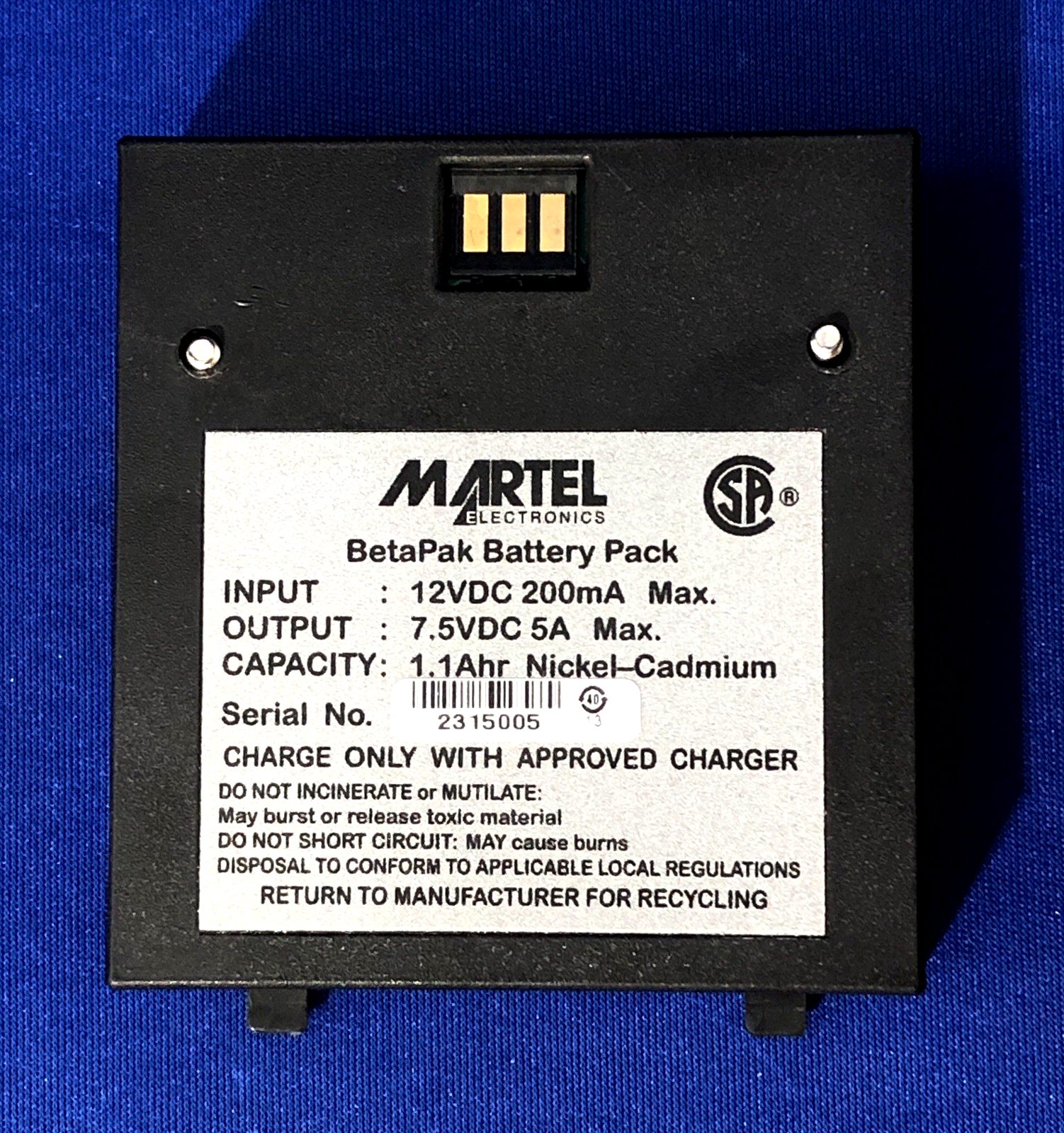

Battery
AC power adapter
Spare fuses
Case w/ shoulder strap
The Modular Pressure Calibrator is unmatched by any device in its price range. For the majority of its available ranges, it has a typical pressure accuracy of 0.025% full-scale and an electrical accuracy of ±0.01%. That makes it four times more precise than the instruments it is used to calibrate, including 0.10% accuracy smart pressure transmitters. Even so, the modular pressure calibrator is priced competitively, with other pressure calibrators. The closest pressure calibration devices more accurate are far more expensive - lab instruments not intended for field use, such as quartz gauges used to calibrate other calibrators. Yet, remarkably, best of class accuracy is but one of the many reasons for specifying the modular pressure calibrator.
Pressure
a. Gauge, Vacuum, Absolute, Compound, and Differential Standard Ranges:
±0.025% FS (0°C to 50°C) for six months
b. Gauge Extended Ranges:±0.035% FS (0°C to 50°C) for six months
c. Accuracy for ranges with thermal and pressure hysteresis is:± (Accuracy% FS + Hysteresis in PSI)
Electrical
±0.01% FS + ±0.01% Rdg (15°C to 35°C) for 12 months
ENVIRONMENTAL
Temperature
-20°C to 50°C (operating)
-30°C to 50°C (storage with batteries)
-30°C to 70°C (storage without batteries)
Relative Humidity
0 to 95% non-condensing
Effects
a. Pressure: none over the operating temperature
b. Electrical: ±0.002% Range/°C outside 15°C to 35°C
Overpressure (without damage or calibration effects)
a. 0-15 psi* 400% of sensor range
b. 30-250 psi 300% of sensor range>
c. 300-10,000 psi 150% of sensor
Alarm Trip Detect
Wet contact input, 48 Vdc max.
Damping Factor
Programmable 1.0 to 5 sec response time for all inputs (running
average)
Display
128 X 128 pixel LCD with LED backlight; two inputs simultaneously displayed with maximum of 5 digits resolution
Power Supply
a. Rechargeable NiCad external battery pack: 6 V, 1.0 Ah, 10 hours nominal operation time at 25°C; extra battery packs available; battery charger (trickle) standard
b. Charging: 16 hours maximum; fast charge battery optional, 90 min. charge time Circuit Protection: Voltage and current input protected for connection to 120 Vac
Pressure Connections
1/8" FNPT 316SS
Electrical Connections
Standard banana jack on 3/4" centers
Weight
< 1.5 kg with carrying case and accessories (typical)
Size
4.3" x 7.5" x 2.4" (110 mm x 190 mm x 60 mm)
* Includes only what is shown in pictures
* If applicable, the current registration, calibration, licensing, software, programming, or preventative maintenance has probably expired on this unit by now. Buyer may need to reset or register this device, purchase licensing and/or software prior to configuration & usage
* Please note that items are NOT included unless listed in writing or pictured such as: passwords, reset, device registration, programming, Unlock/Access/Key codes, software, drivers, speed controllers, power supplies, manuals, cords, brackets, adapters, etc.
The Modular Pressure Calibrator is unmatched by any device in its price range. For the majority of its available ranges, it has a typical pressure accuracy of 0.025% full-scale and an electrical accuracy of ±0.01%. That makes it four times more precise than the instruments it is used to calibrate, including 0.10% accuracy smart pressure transmitters. Even so, the modular pressure calibrator is priced competitively, with other pressure calibrators. The closest pressure calibration devices more accurate are far more expensive - lab instruments not intended for field use, such as quartz gauges used to calibrate other calibrators. Yet, remarkably, best of class accuracy is but one of the many reasons for specifying the modular pressure calibrator.
Pressure | a. Gauge, Vacuum, Absolute, Compound, and Differential Standard Ranges: ±0.025% FS (0°C to 50°C) for six months b. Gauge Extended Ranges:±0.035% FS (0°C to 50°C) for six months c. Accuracy for ranges with thermal and pressure hysteresis is:± (Accuracy% FS + Hysteresis in PSI) |
Electrical | ±0.01% FS + ±0.01% Rdg (15°C to 35°C) for 12 months |
ENVIRONMENTAL | |
Temperature | -20°C to 50°C (operating) -30°C to 50°C (storage with batteries) -30°C to 70°C (storage without batteries) |
Relative Humidity | 0 to 95% non-condensing |
Effects | a. Pressure: none over the operating temperature b. Electrical: ±0.002% Range/°C outside 15°C to 35°C |
Overpressure (without damage or calibration effects) | a. 0-15 psi* 400% of sensor range b. 30-250 psi 300% of sensor range> c. 300-10,000 psi 150% of sensor |
Alarm Trip Detect | Wet contact input, 48 Vdc max. |
Damping Factor | Programmable 1.0 to 5 sec response time for all inputs (running average) |
Display | 128 X 128 pixel LCD with LED backlight; two inputs simultaneously displayed with maximum of 5 digits resolution |
Power Supply | a. Rechargeable NiCad external battery pack: 6 V, 1.0 Ah, 10 hours nominal operation time at 25°C; extra battery packs available; battery charger (trickle) standard b. Charging: 16 hours maximum; fast charge battery optional, 90 min. charge time Circuit Protection: Voltage and current input protected for connection to 120 Vac |
Pressure Connections | 1/8" FNPT 316SS |
Electrical Connections | Standard banana jack on 3/4" centers |
Weight | < 1.5 kg with carrying case and accessories (typical) |
Size | 4.3" x 7.5" x 2.4" (110 mm x 190 mm x 60 mm) |
