Bogen

Bogen Power Vector VMIX Mixer / Pre-amplifier

Bogen Power Vector VMIX Mixer / Pre-amplifier

Regular price $220.50
Regular price Sale price $220.50
Sale Sold out

-

Bogen

VMIX Power Vector

Mixer / Pre-Amp


USED / TESTED

REMOVED FROM LOCAL SCHOOL

MINOR COSMETIC WEAR FROM TYPICAL USE


* includes only what is shown in pictures
-


Bogen VMIX

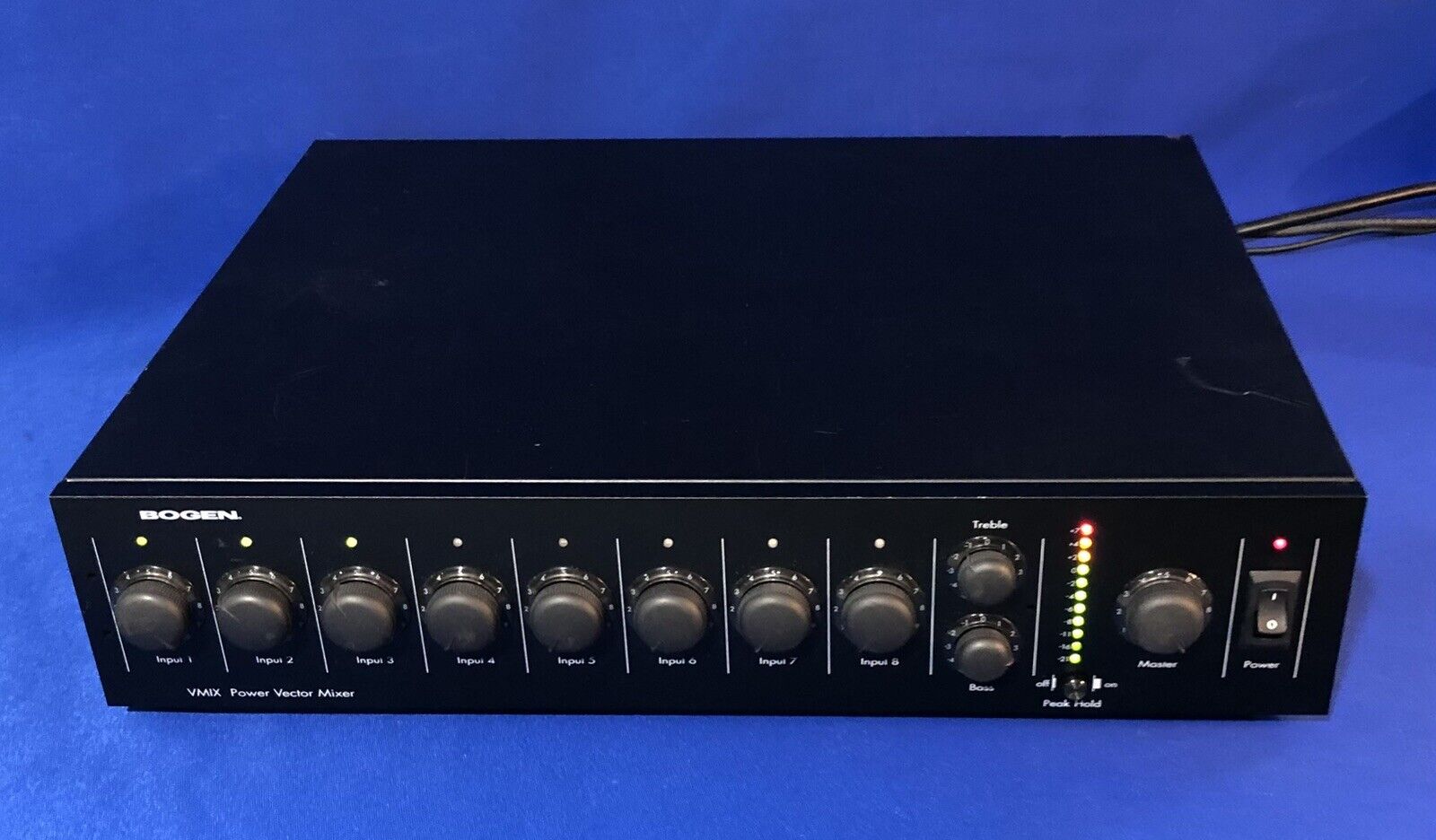

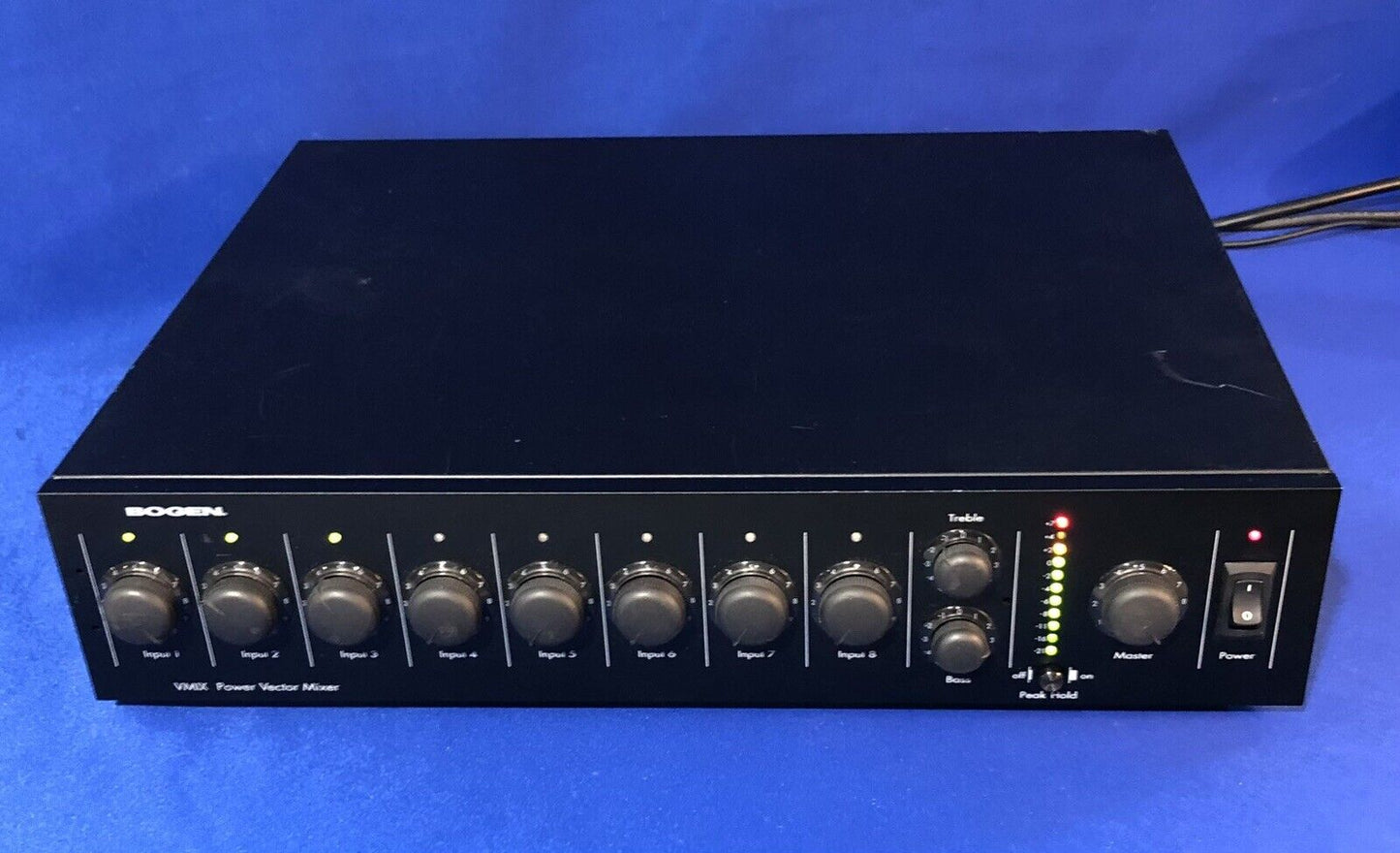

Bogenʼs VMIX Power Vector Mixer is an 8-channel mixer/pre-amplifier, offering a wide variety of operational features and functions for superior audio performance. Eight module bays accept plug-in input modules, allowing up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status, and an 11-segment LED output level meter that monitors output signal level. In addition, the VMIX has a motorized master volume control (that can be controlled using a remote control panel, RVCP, sold separately), bass and treble control, Avg/Peak switch, unbalanced output jack, and balanced output terminal. Optional security covers prevent tampering of settings. The VMIX can be used for various applications including foreground music, background music, and paging. For large applications, several VMIX units can be bridged together.

Features:

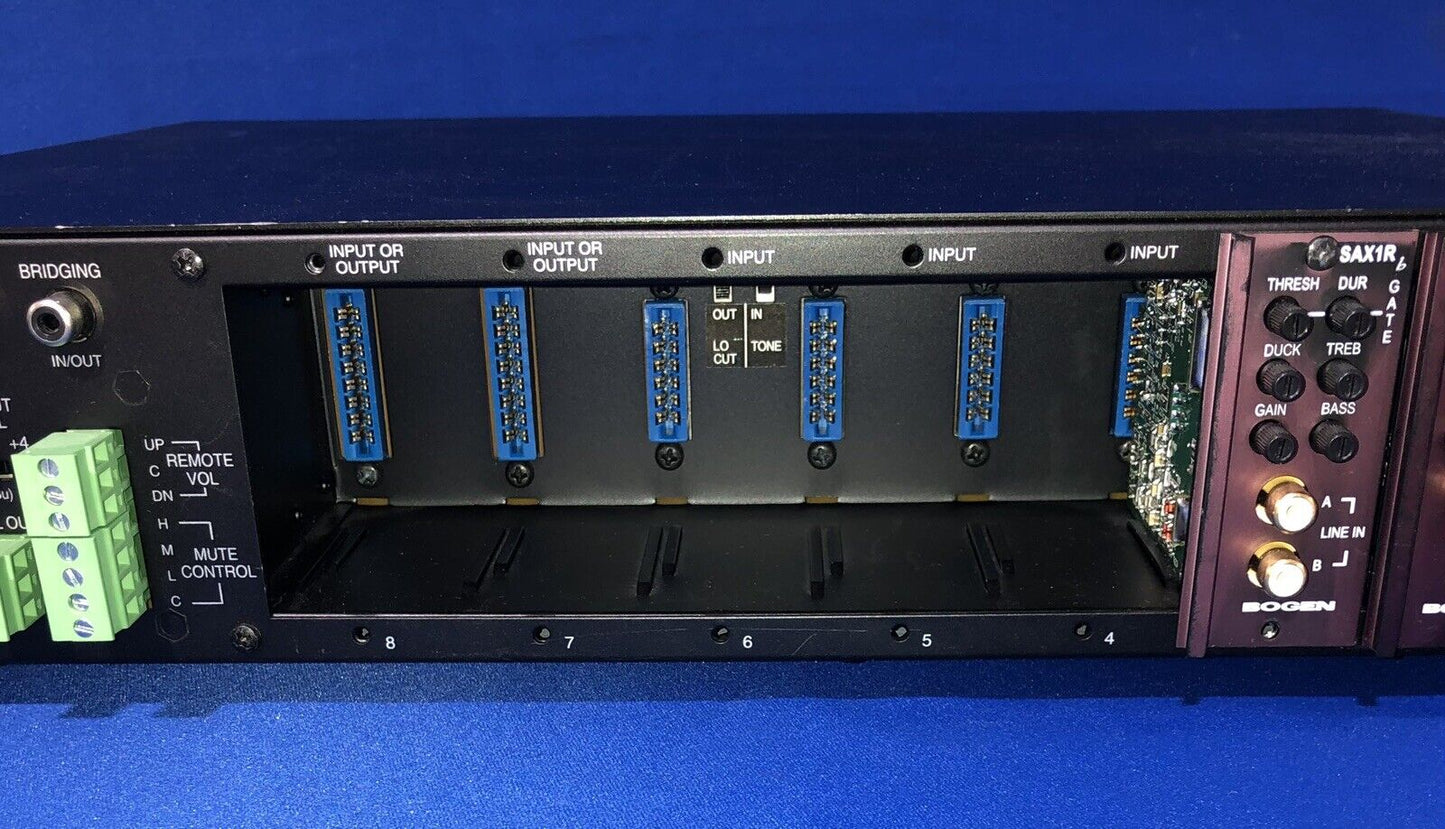

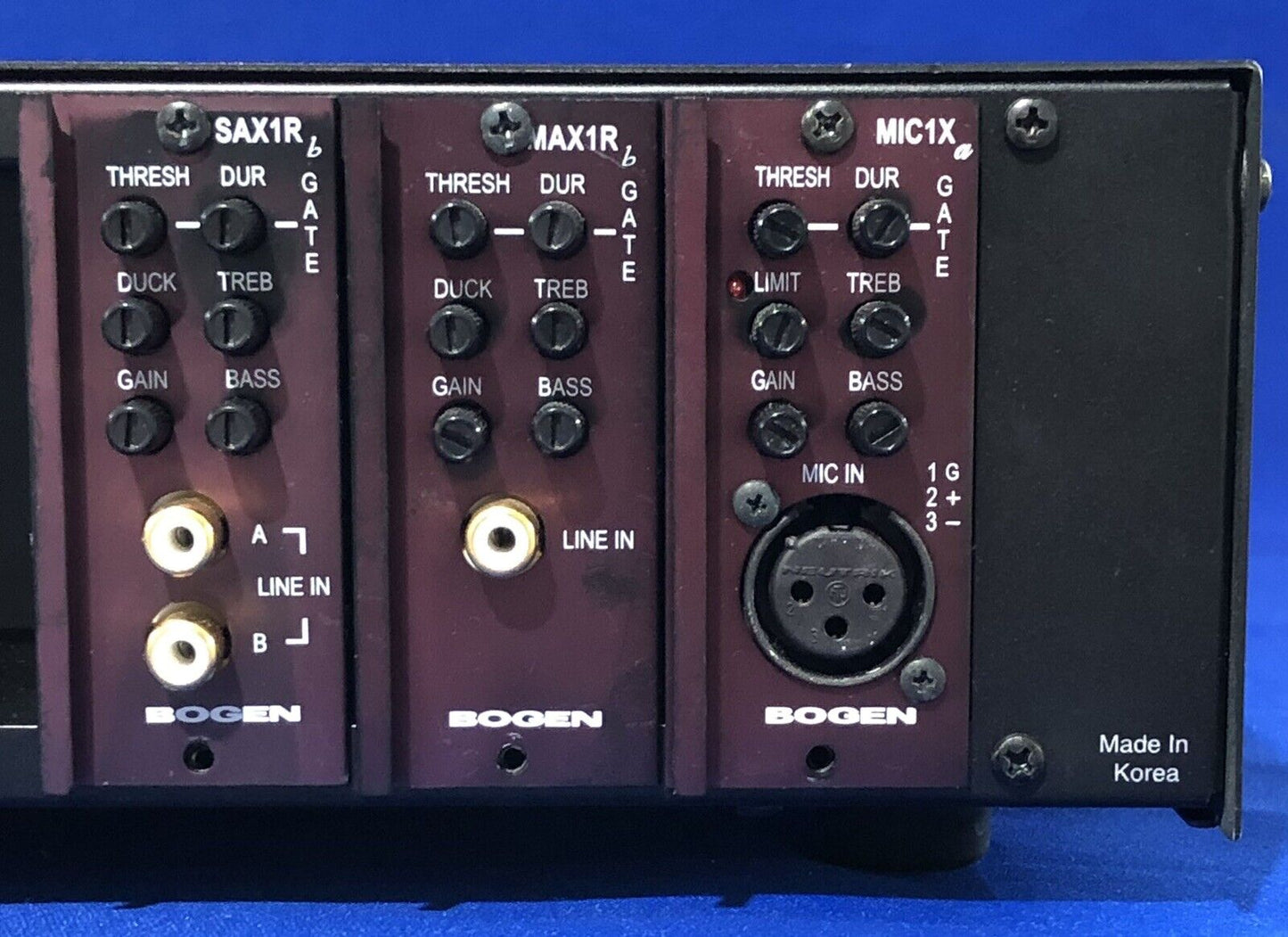

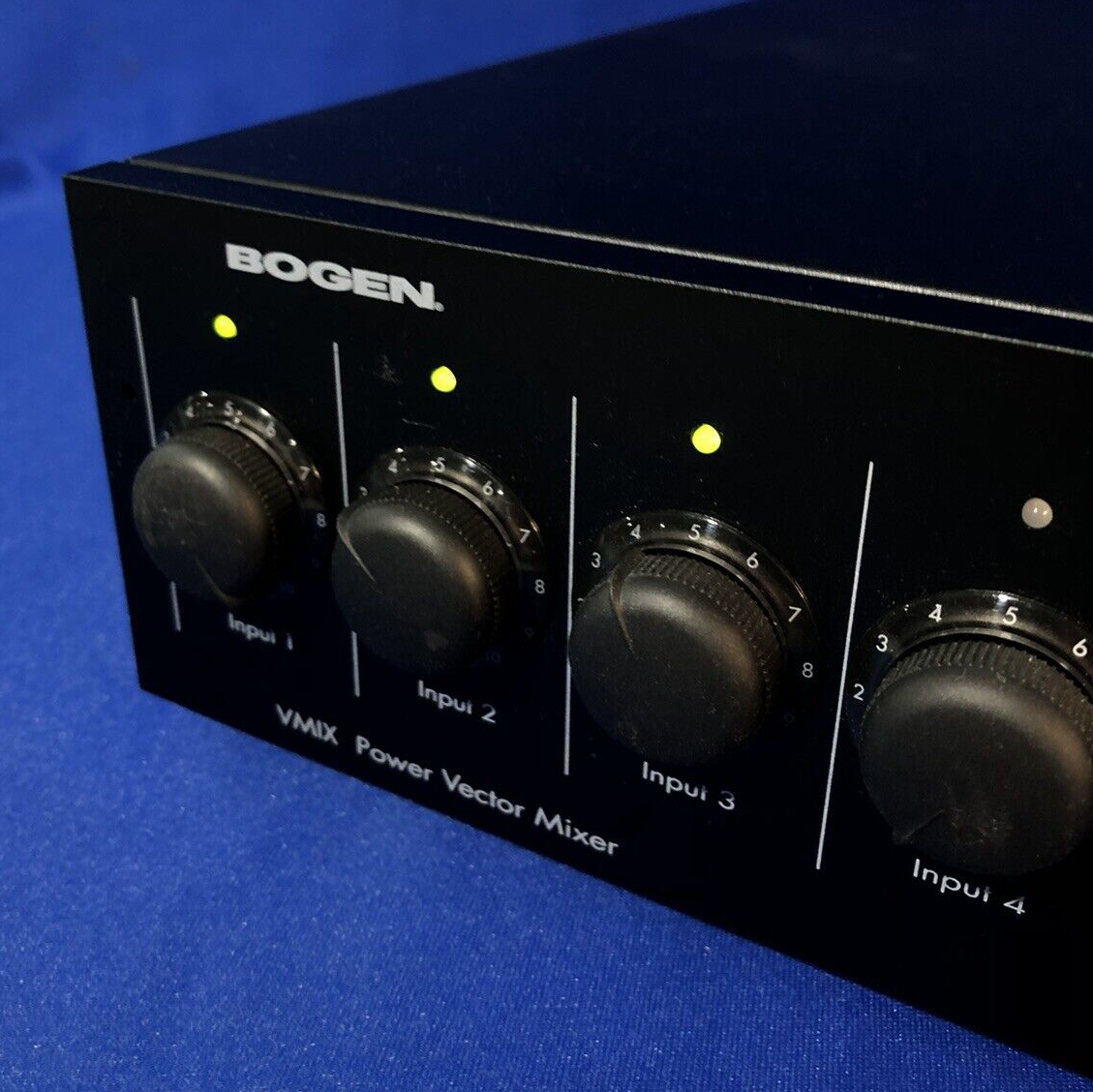

    8 input module bays; each with independent volume controls
    2 module bays capable of handling signal-processing plug-in output modules
    4 levels of priority between modules
    Motorized master volume control; remotely operated (with RVCP Remote Volume Control Panel, sold separately)
    LED signal/clip indicator for each channel
    Bass and treble controls

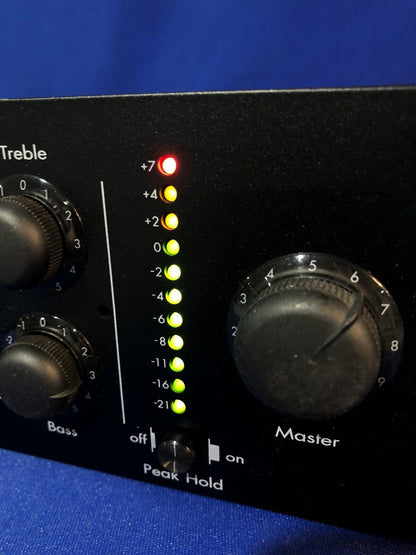

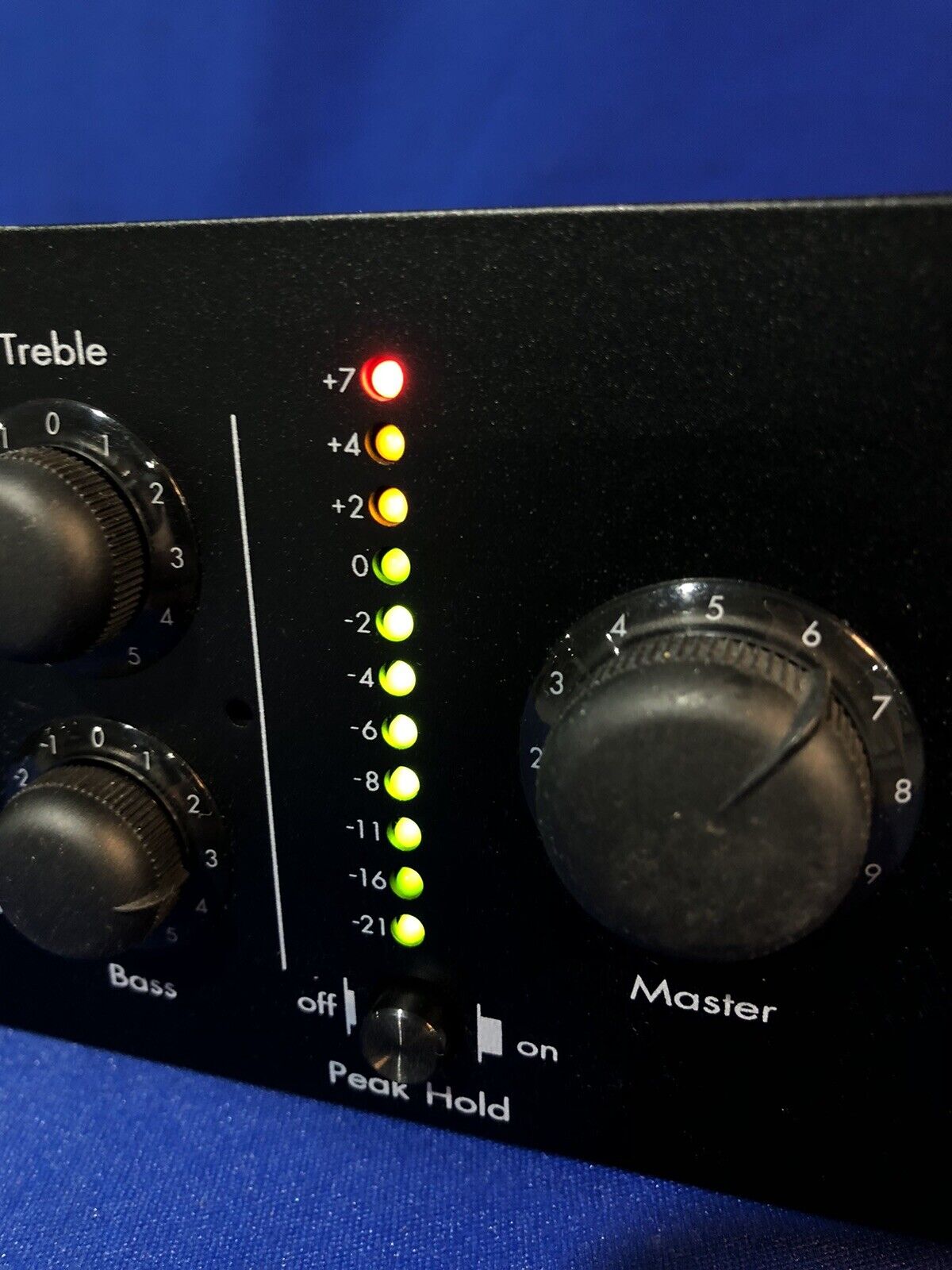

    11-segment LED output level meter monitors the output level of the mixer with Avg/Peak switch

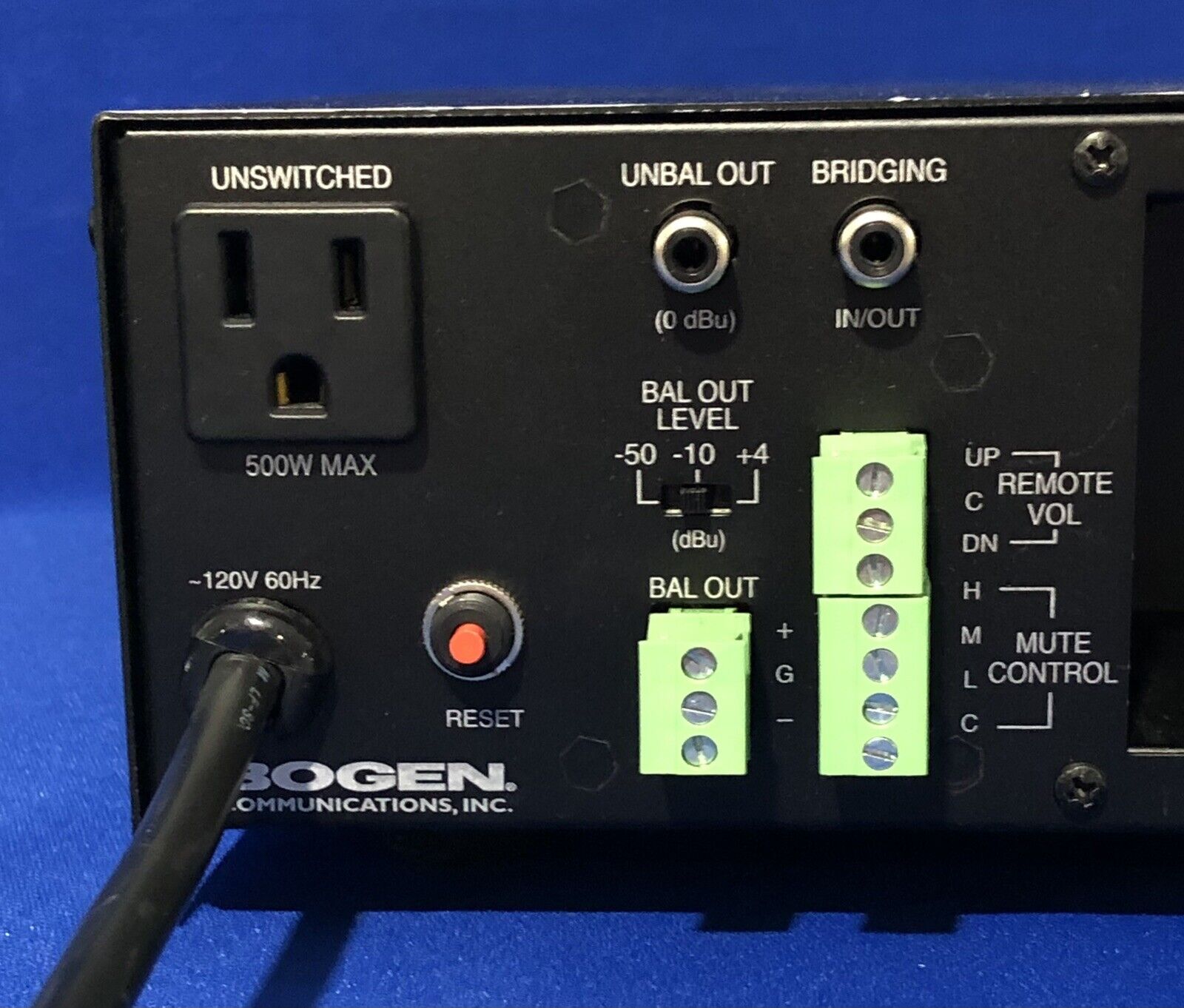

    Balanced transformer-isolated output
    Balanced output signal level switch (-50, -10, and +4 dBμ)
    Unbalanced signal output jack

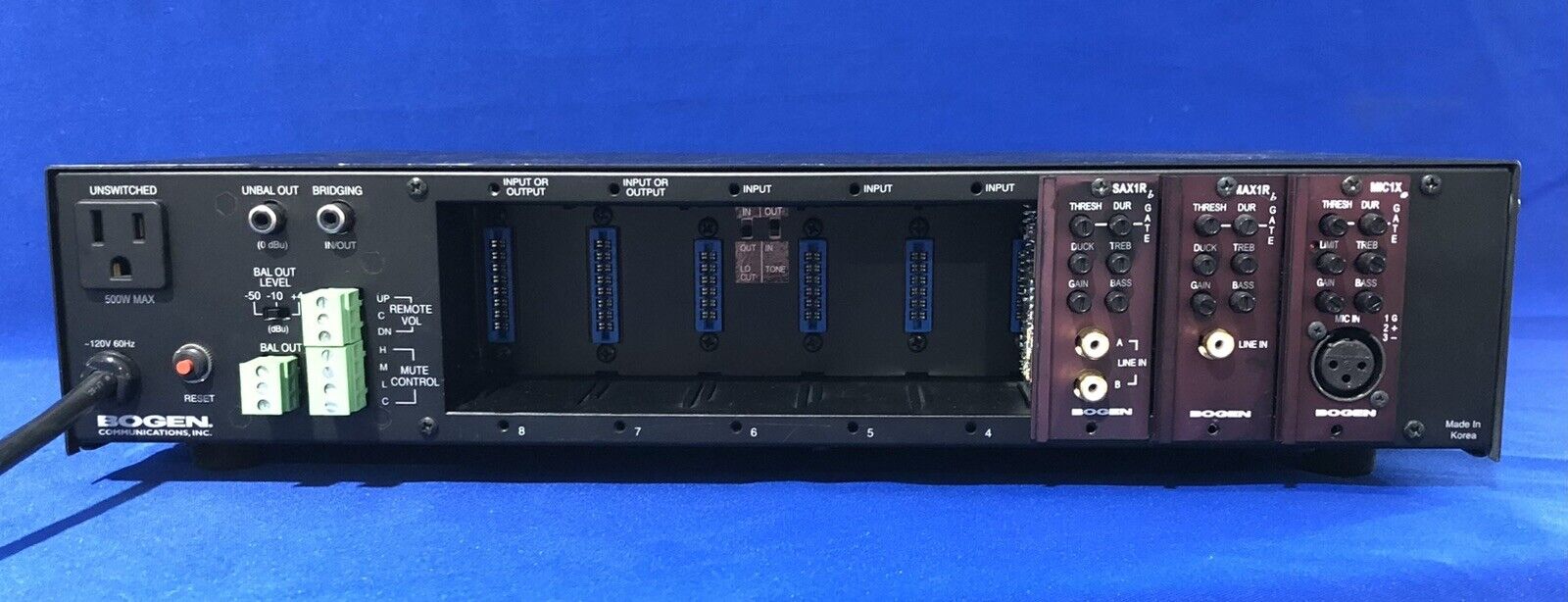

    Join multiple Power Vector mixers together using bridging jack and mute terminals
    125 Hz Low-cut feature (switch located in module bay 6)
    Tone control bypass switch (located in module bay 6)
    Rack mountable (rack mounting kit RPK87, sold separately)

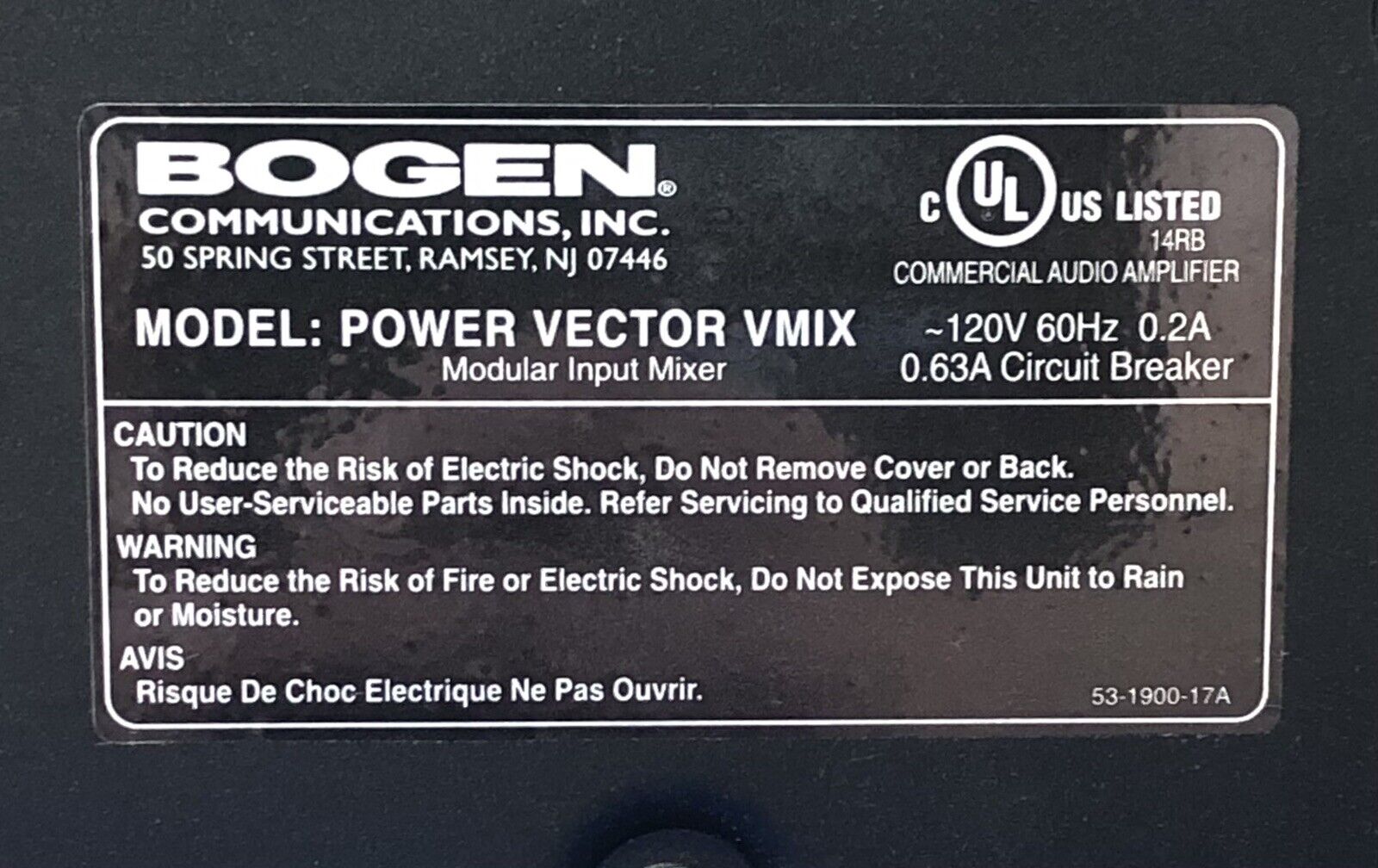

    Resettable circuit breaker
    Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment

Additional Info:
  https://www.bogen.com/product/mixers/power-vector-mixerpre-amplifier-vmix
  https://www.bogen.com/sites/default/files/2021-01/vmix_specsheet.pdf
