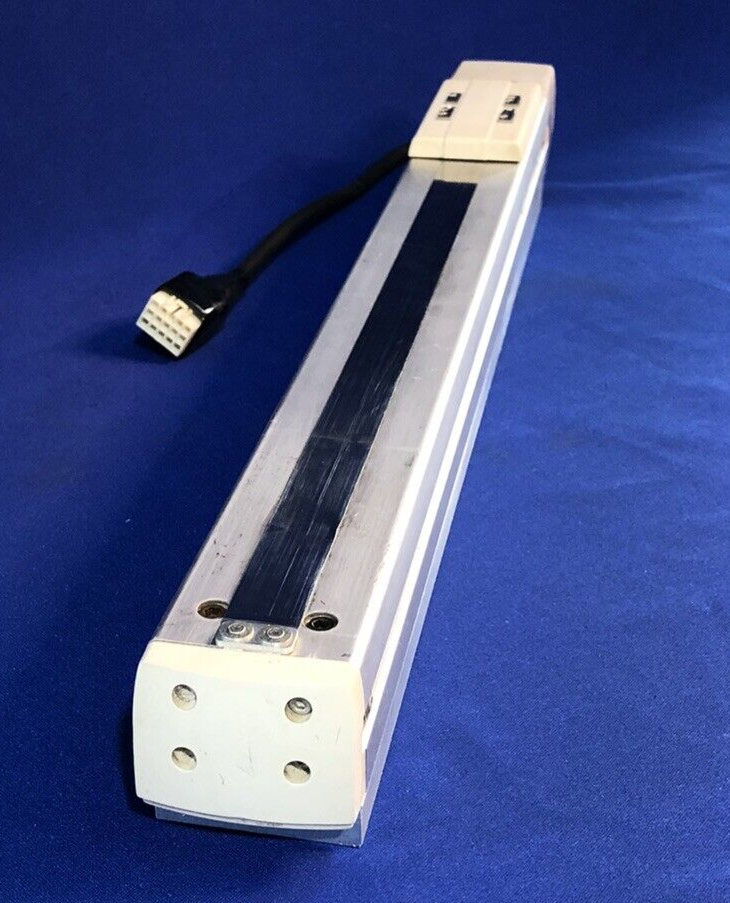

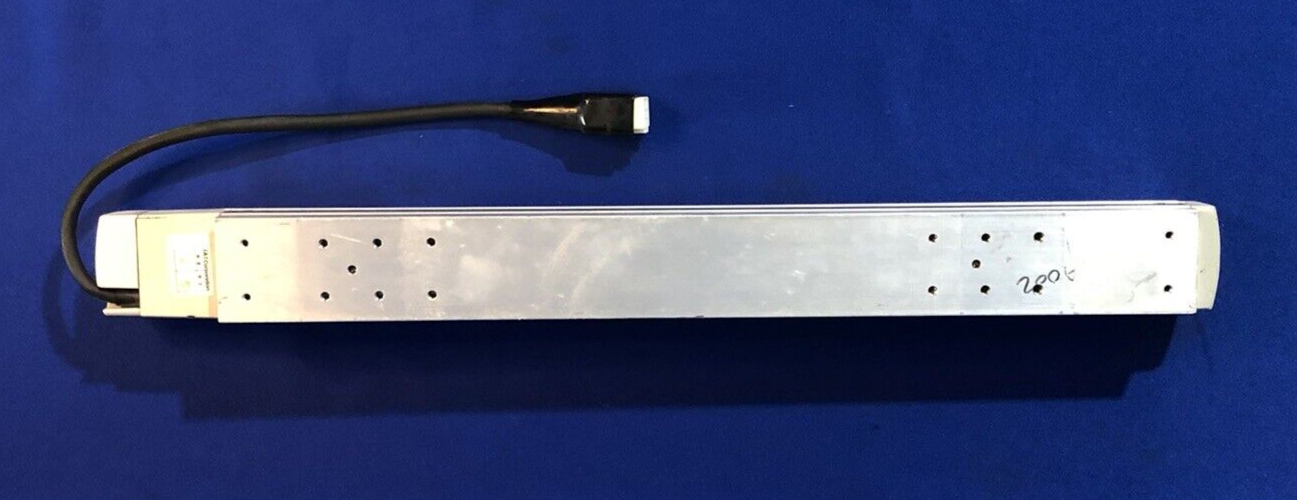

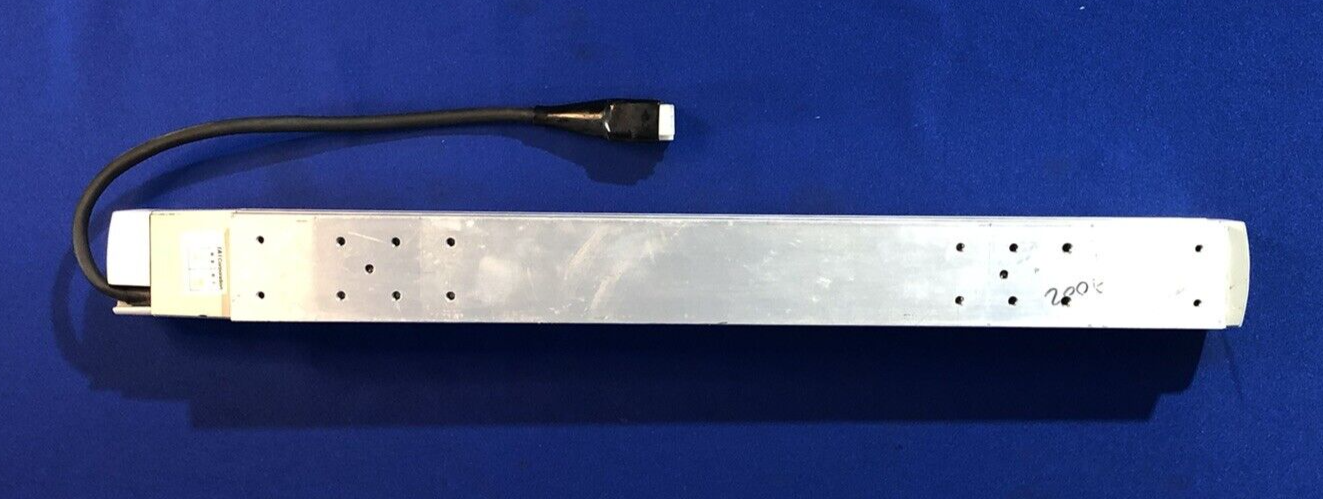

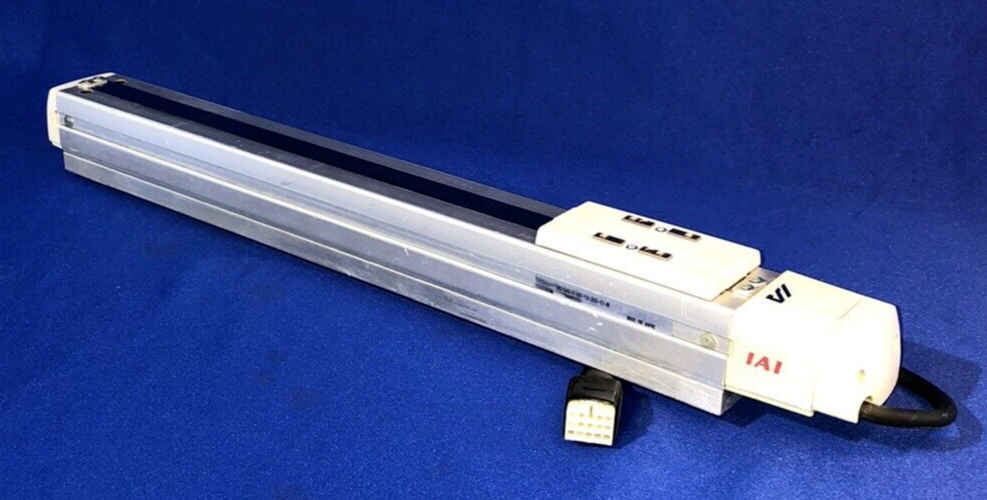

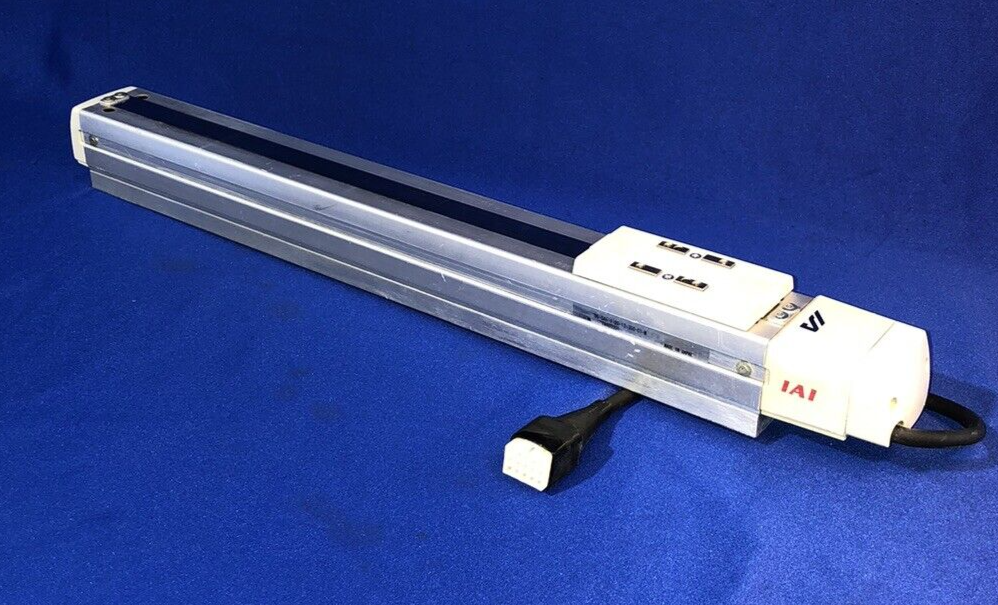

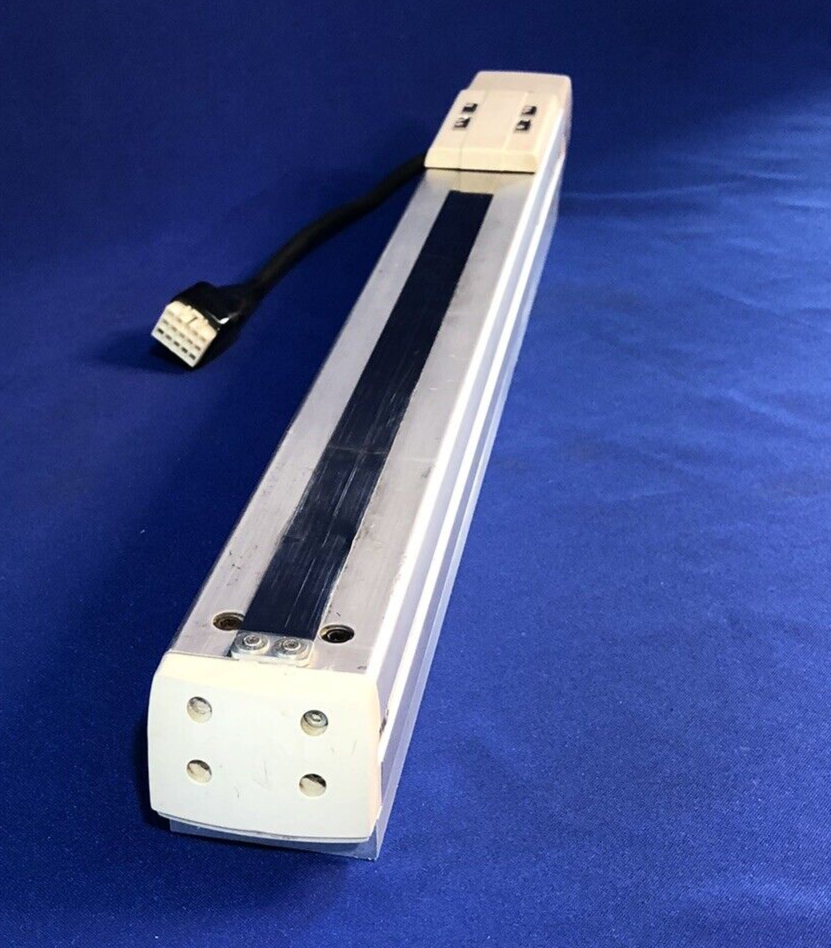

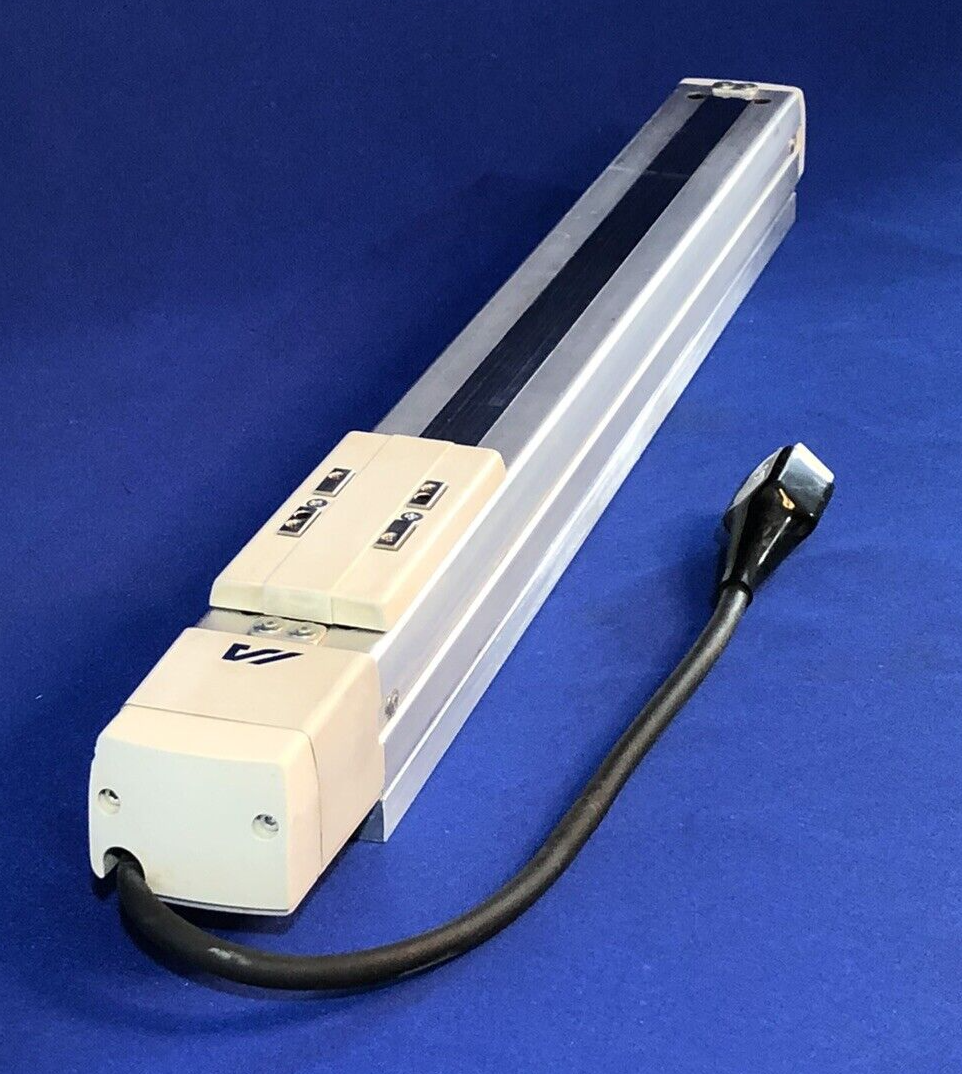

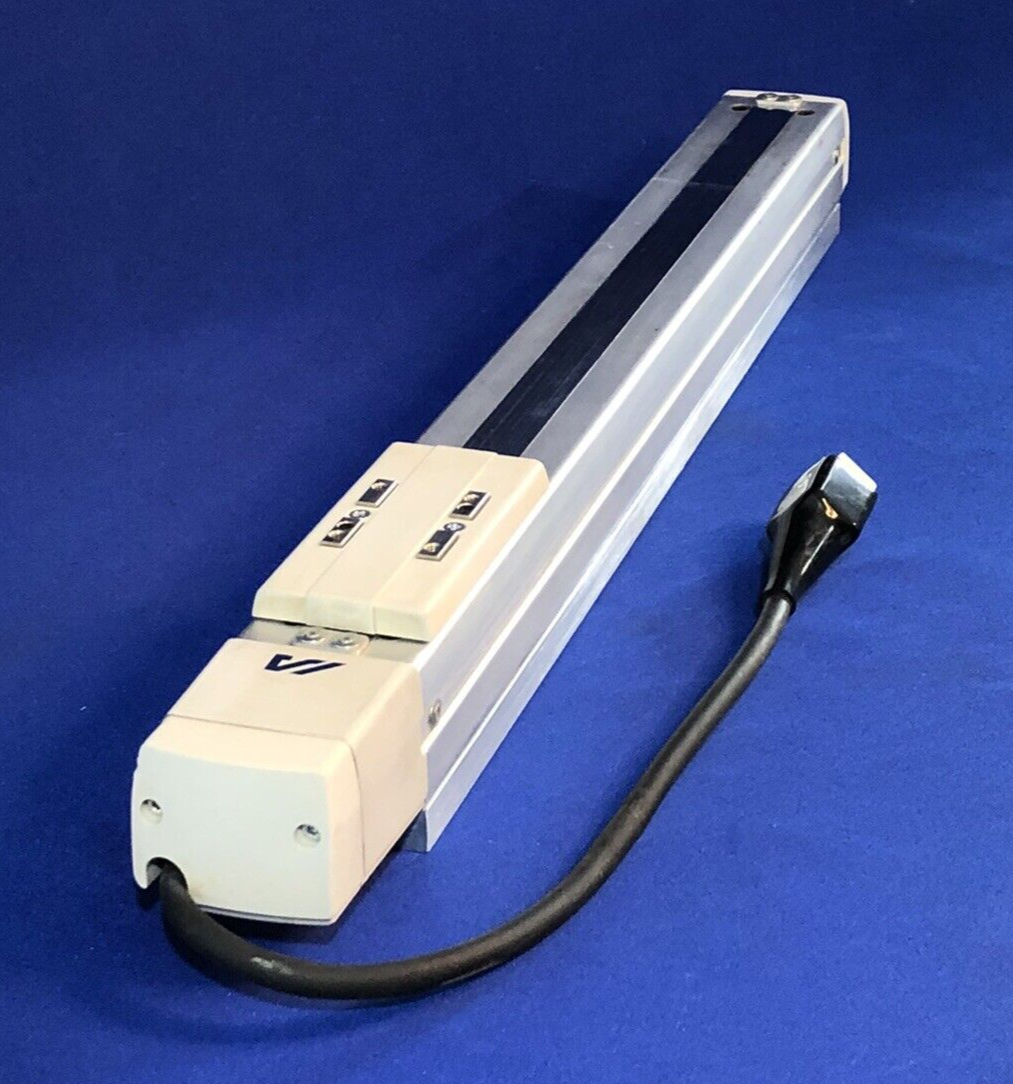

IAI Robotic Linear Actuator / Slide DS-SA5-I-20-12-350-C1-M
IAI Robotic Linear Actuator / Slide DS-SA5-I-20-12-350-C1-M
Regular price
$198.00
Regular price
Sale price
$198.00
Unit price
/
per
-
IAI Automation
Robotic Linear Actuator / Slide

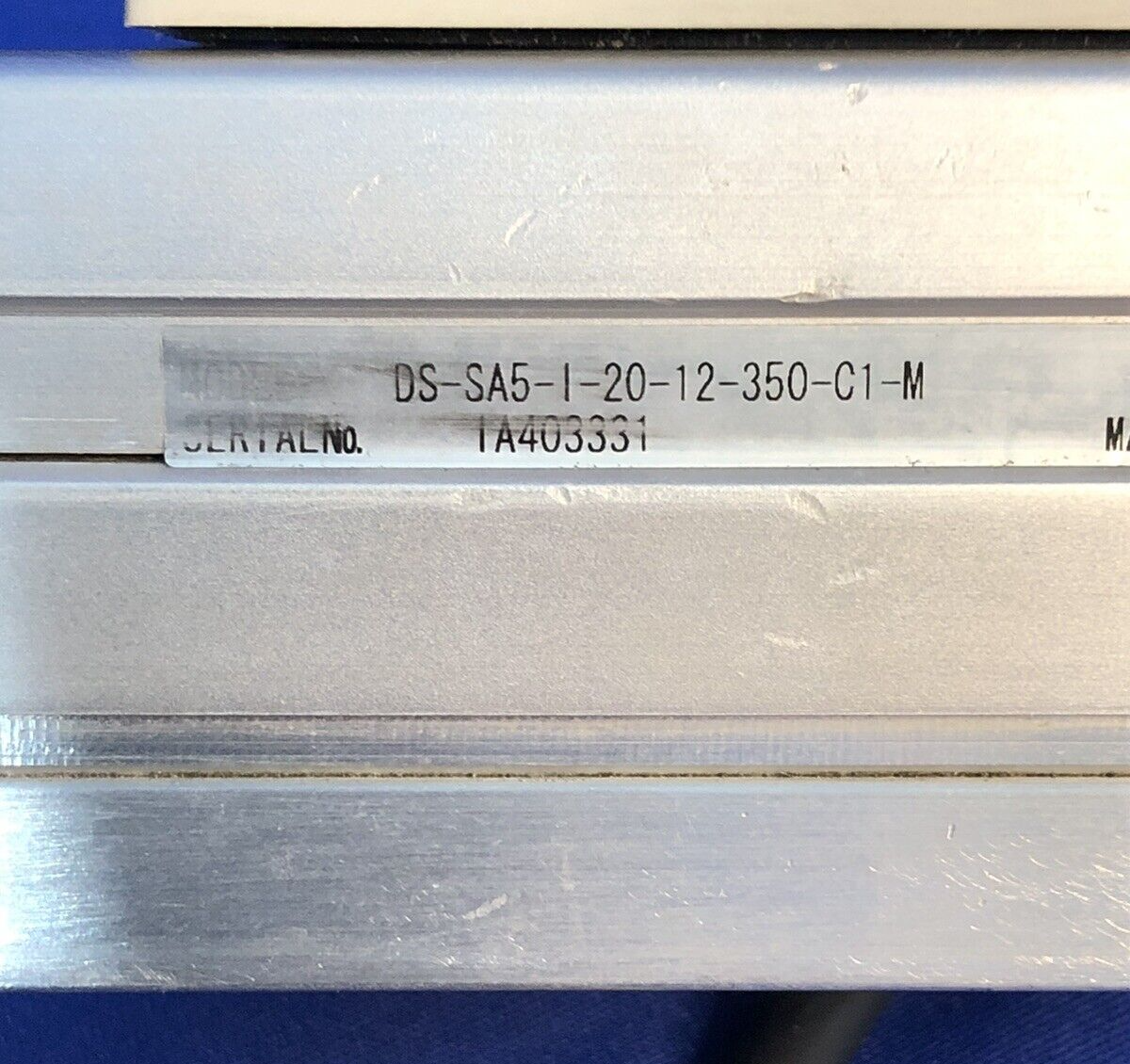

DS-SA5-I-20-12-350-C1-M
-
USED / UNTESTED
350mm STROKE LENGTH !!!
-
REMOVED FROM LOCAL SCHOOL LAB
UNABLE TO TEST THEREFORE BEING
SOLD AS-IS FOR PARTS / REPAIR
NO RETURNS
IAI Robotic Linear Actuator / Slide
DS-SA5-I-20-12-350-C1-M
Actuator Specifications:
Actuator Specifications:
Speed (ballscrew lead) | Low | Medium | High |
Maximum Horizontal Payload: | 8 kg 17.6 lbs |
8 kg 17.6 lbs |
4 kg 8.8 lbs |
Maximum Vertical Payload: | 4 kg 8.8 lbs |
2 kg 4.4 lbs |
1 kg 2.2 lbs |
Maximum Speed: | 200 mm/sec 7.9 in/sec |
400 mm/sec 15.7 in/sec |
800 mm/sec 31.5 in/sec |
Maximum Thrust: | 6.7 kgf 65.7 N |
3.4 kgf 33.3 N |
1.7 kgf 16.7 N |
Stroke Lengths: | Stroke Length: 350 mm / 13.78 in |
||
Motor: | 20W AC Servo | ||
Encoder: | Incremental / Absolute | ||
Repeatability: | ±0.02mm (±0.0008") | ±0.05mm (±0.002") | |
Option: | Low, Medium or High speed | ||
Design Life: | 5000 km at maximum rated speed, acceleration, payload, and moment. Reductions in any of these factors will significantly extend actuator life. | ||
Minimum Speed: | 1 mm/sec | ||
Option: | NM: Reverse Home Position | ||
All speed, payload, and thrust values shown vary based on ballscrew lead selection, either H, M, or L (high, medium, and low speeds).
Additional Info:
https://www.iai-automation.com/en/home.html
https://www.intelligentactuator.com/pdf/manuals/Dynamic_Series_IAI-065C-4.pdf
All speed, payload, and thrust values shown vary based on ballscrew lead selection, either H, M, or L (high, medium, and low speeds).
