Raytec RAYMAX 50 Series Semi-Covert Low Light Illuminator

Raytec RAYMAX

RM50 Semi-Covert Low Light Illuminator

TESTED

GOOD CONDITION

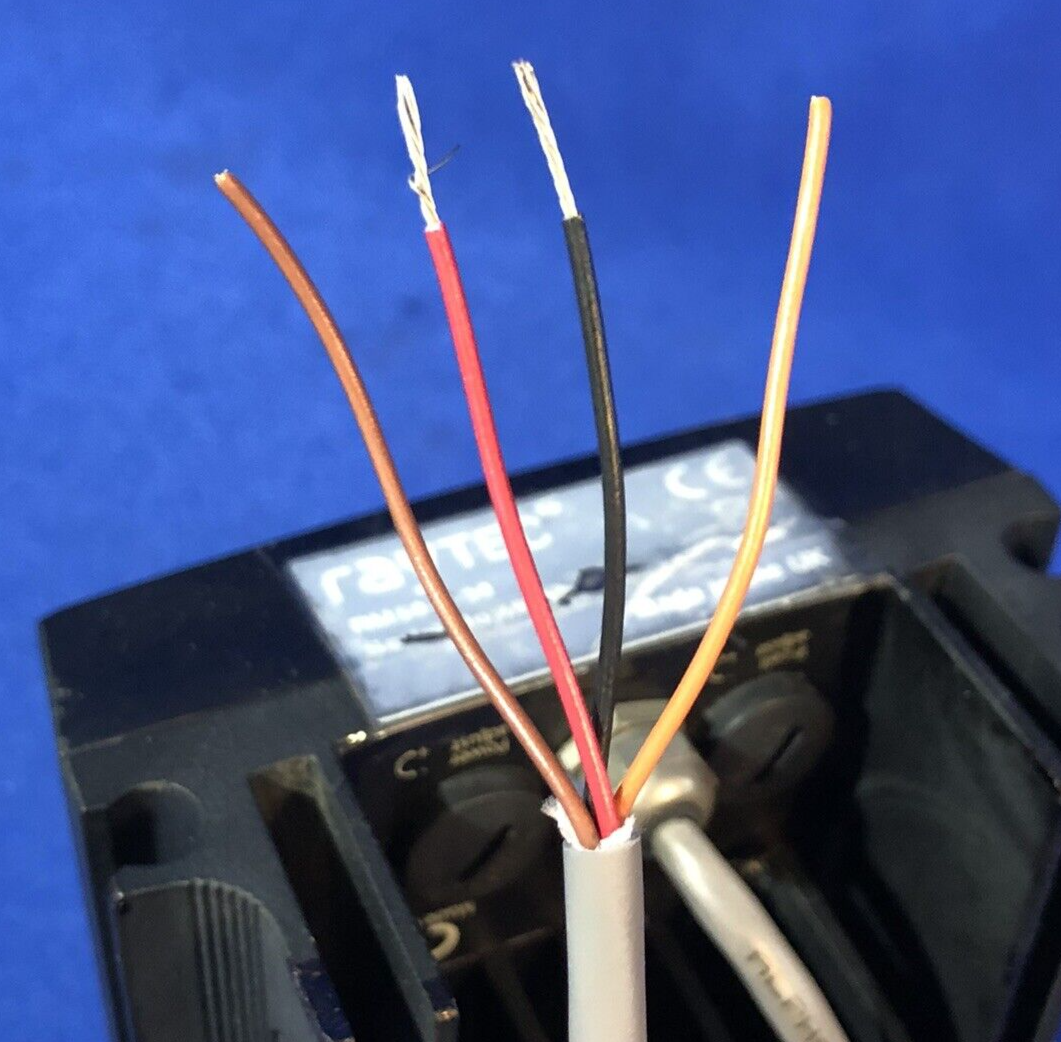

REQUIRES 12/24V AC/DC

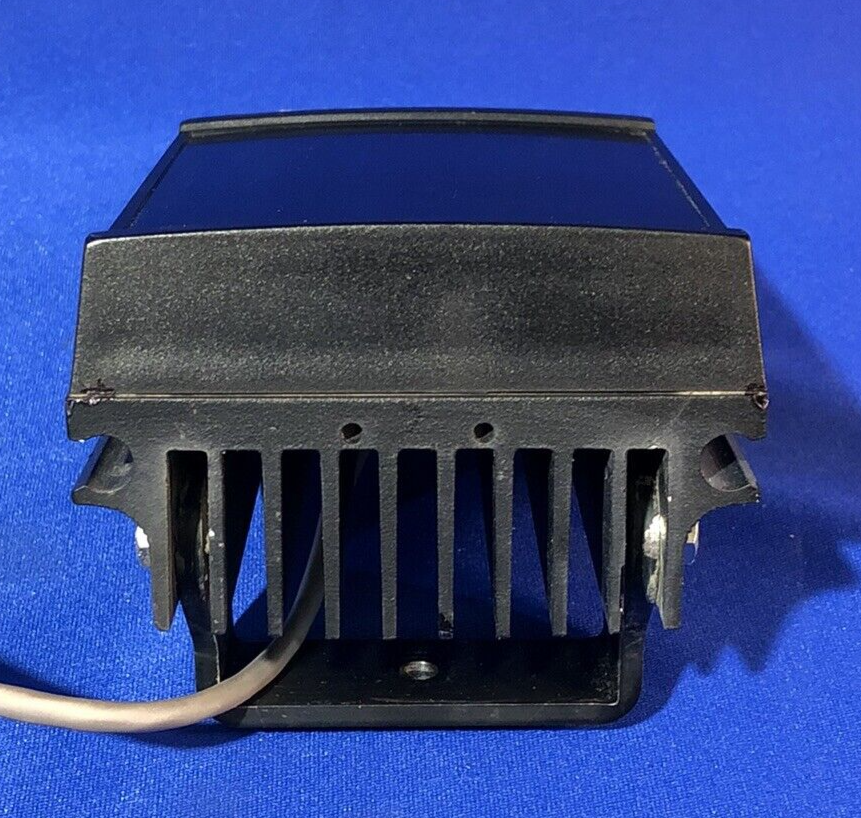

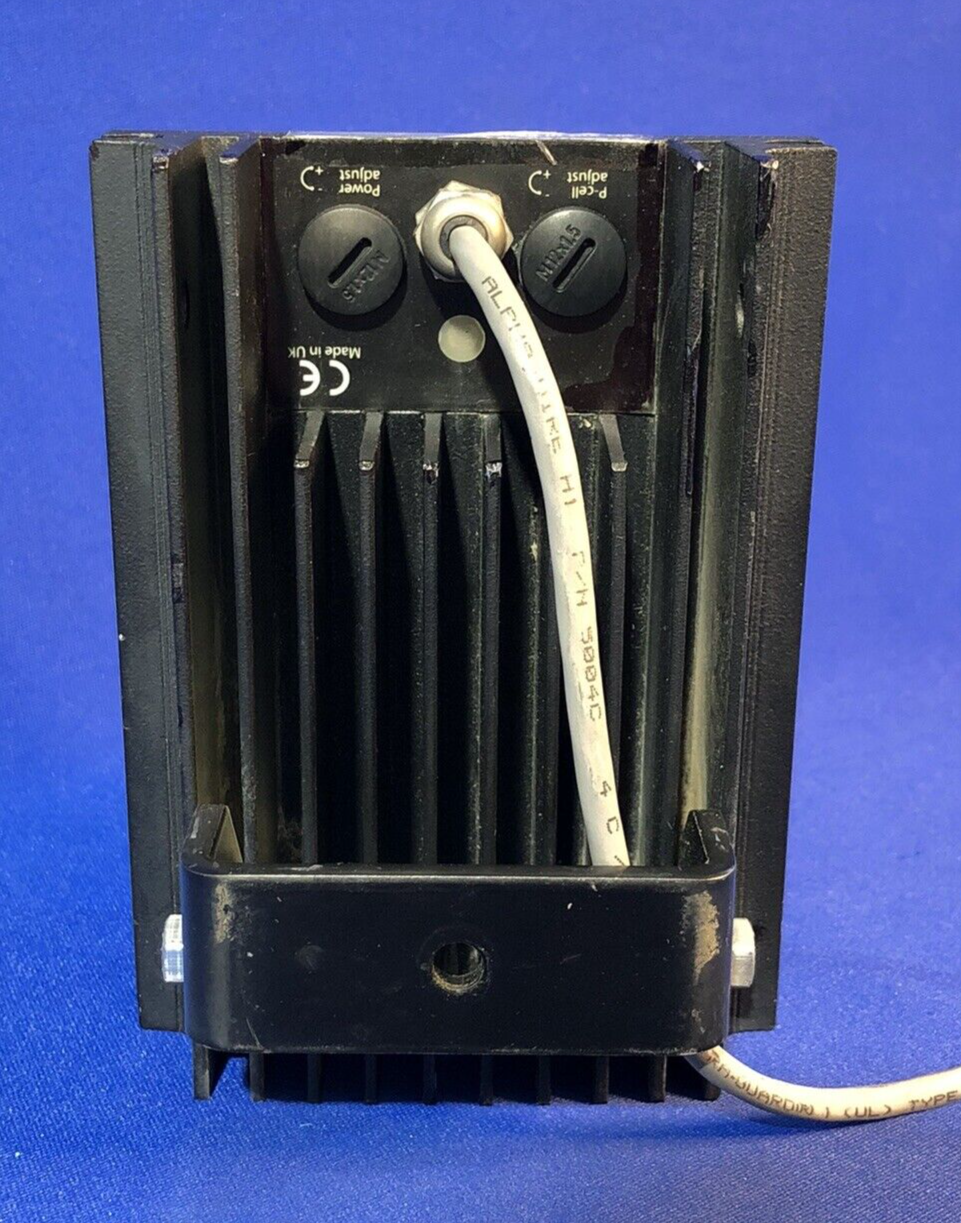

INCLUDES U-MOUNT BRACKET

-

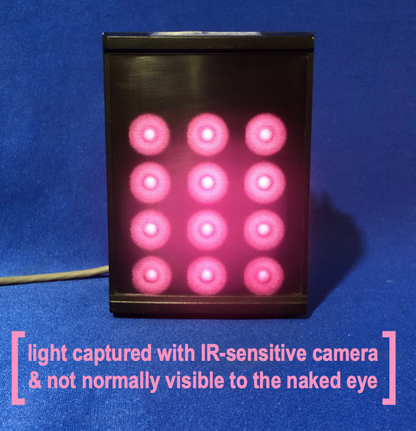

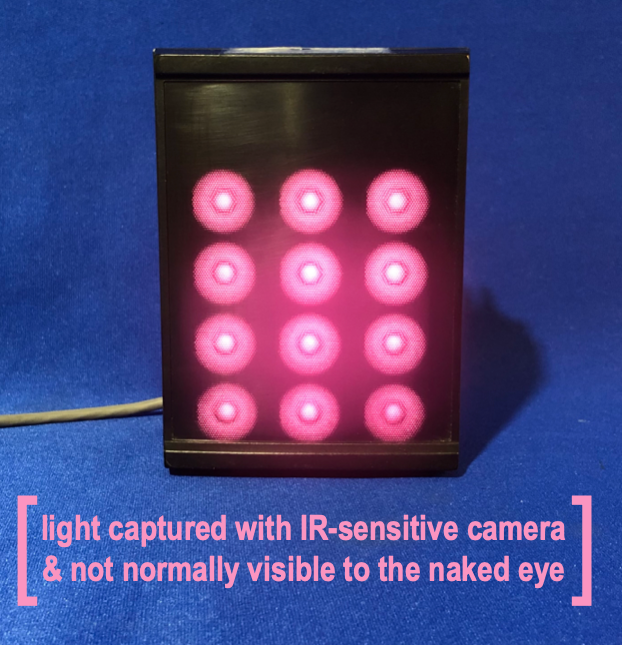

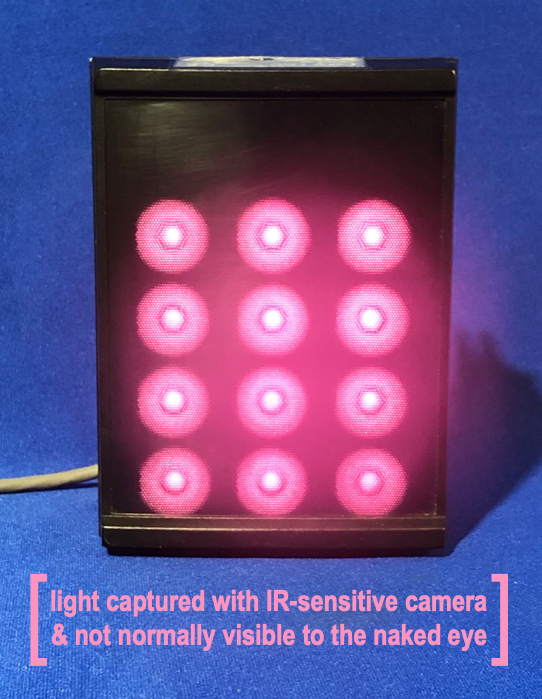

NOTE: Pictures of unit powered on were taken with an
           IR-sensitive camera and visible for that reason

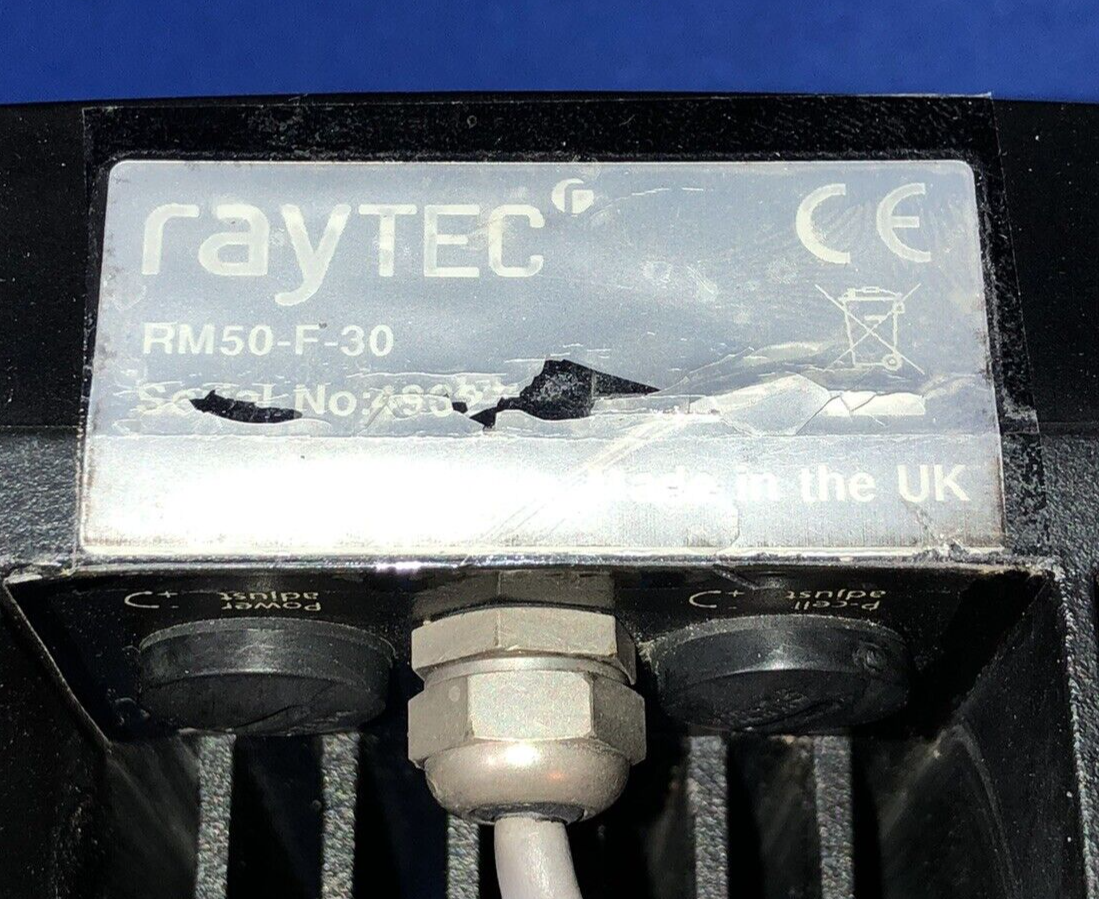

Raytec RAYMAX RM50

Illuminator & Integrated Power Supply Unit (PSU)

  -    Max Distance: up to 40m (131ft)

  -    Angle:  30, 50 or 120 degrees

  -    Optics:  SMT LED’s

  -    Consumption:  25W max

  -    Input: 12/24V AC/DC

  -    Voltage:  13.5V current controlled

  -    Weight:    1.0kg (2.2lbs)

  -    Environmental: IP66

  -    Temp Range:  -50 to +50˚C (-58 to 122°F)

  -    Cable Length:  2.5m

  -    Colour:  Black

  -    Wavelength:  850 or 940nm

  -    Dimensions:  135 x 100 x 63mm

  -    5.25” x 4” x 2.5” approx

  -    U Bracket included

Additional Info:

  https://www.surveillance-video.com/media/lanot/attachments/customimport/RM50-F-30.pdf
