[ SET of 2 ] Elation ELAR-Driver-8-12V 8-Channel 12V LED DMX Controllers
[ SET of 2 ] Elation ELAR-Driver-8-12V 8-Channel 12V LED DMX Controllers
Regular price
$135.00
Regular price
Sale price
$135.00
Unit price
/
per
[ SET of 2 ]
Elation ELAR-Driver-8-12V
8-Channel 12V LED DMX Controller
REMOVED WORKING FROM LOCAL DJ BUSINESS
UNITS POWER UP (GREEN LED VISIBLE)
BUT UNABLE TO TEST - THEREFORE BEING SOLD
AS-IS FOR PARTS / REPAIR
NO RETURNS

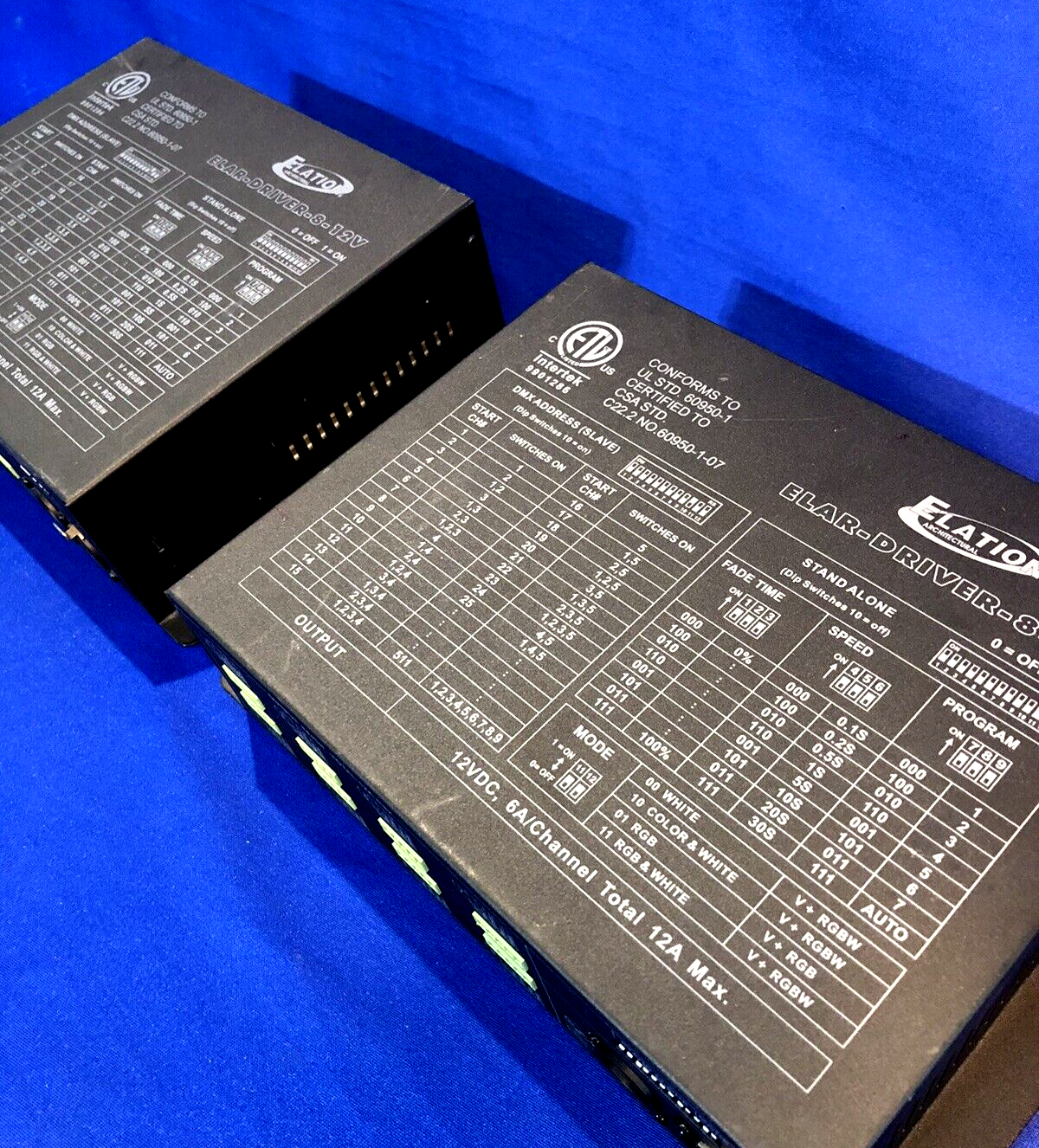

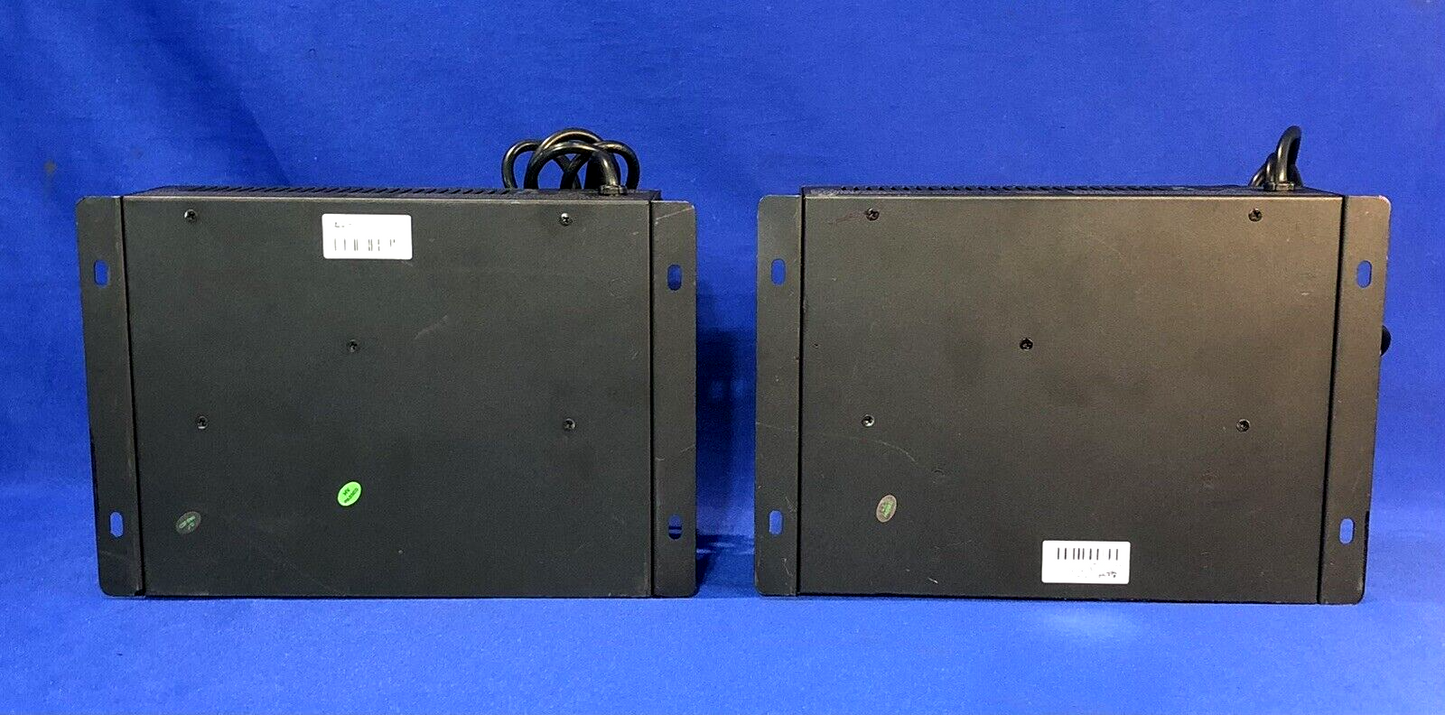

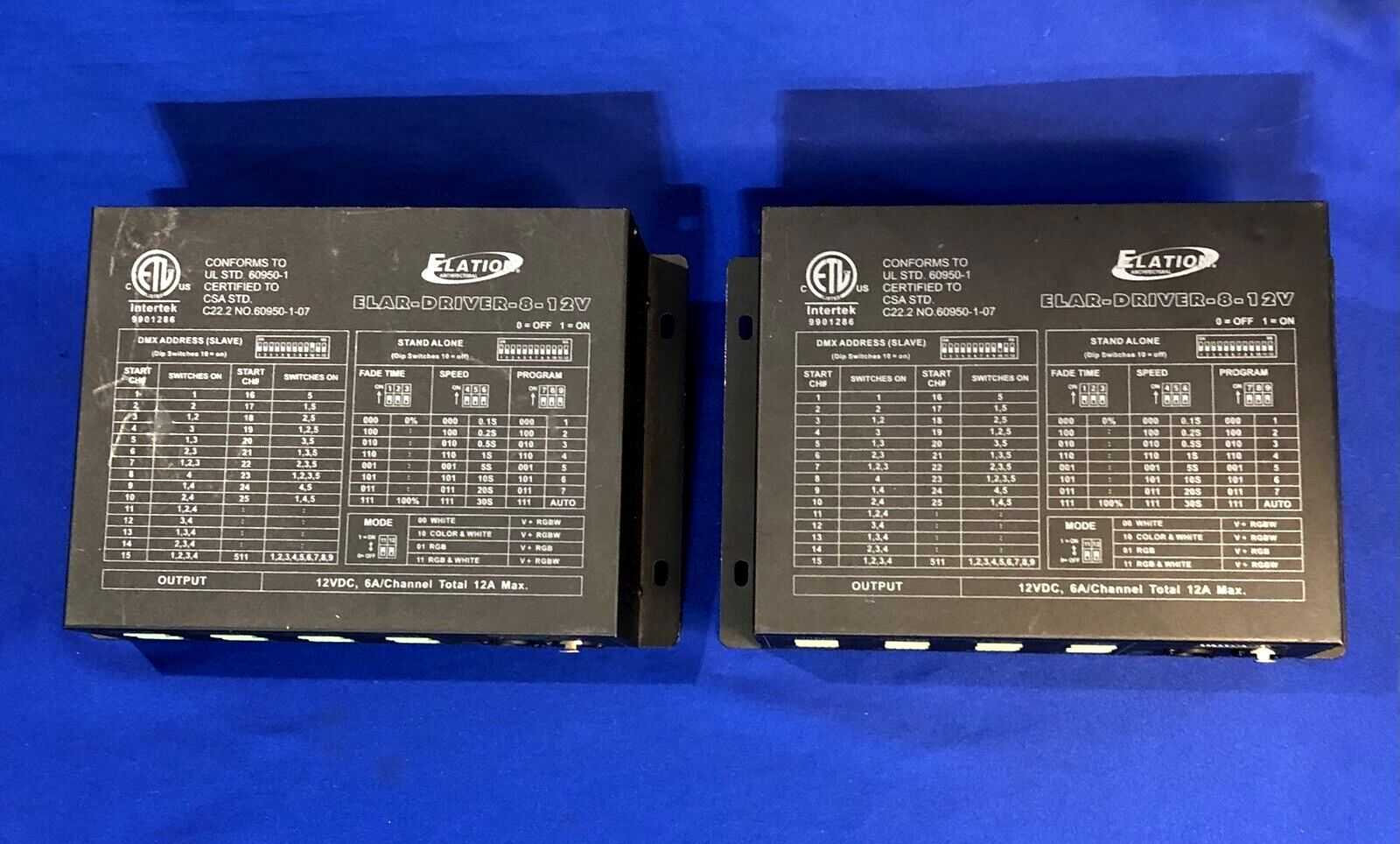

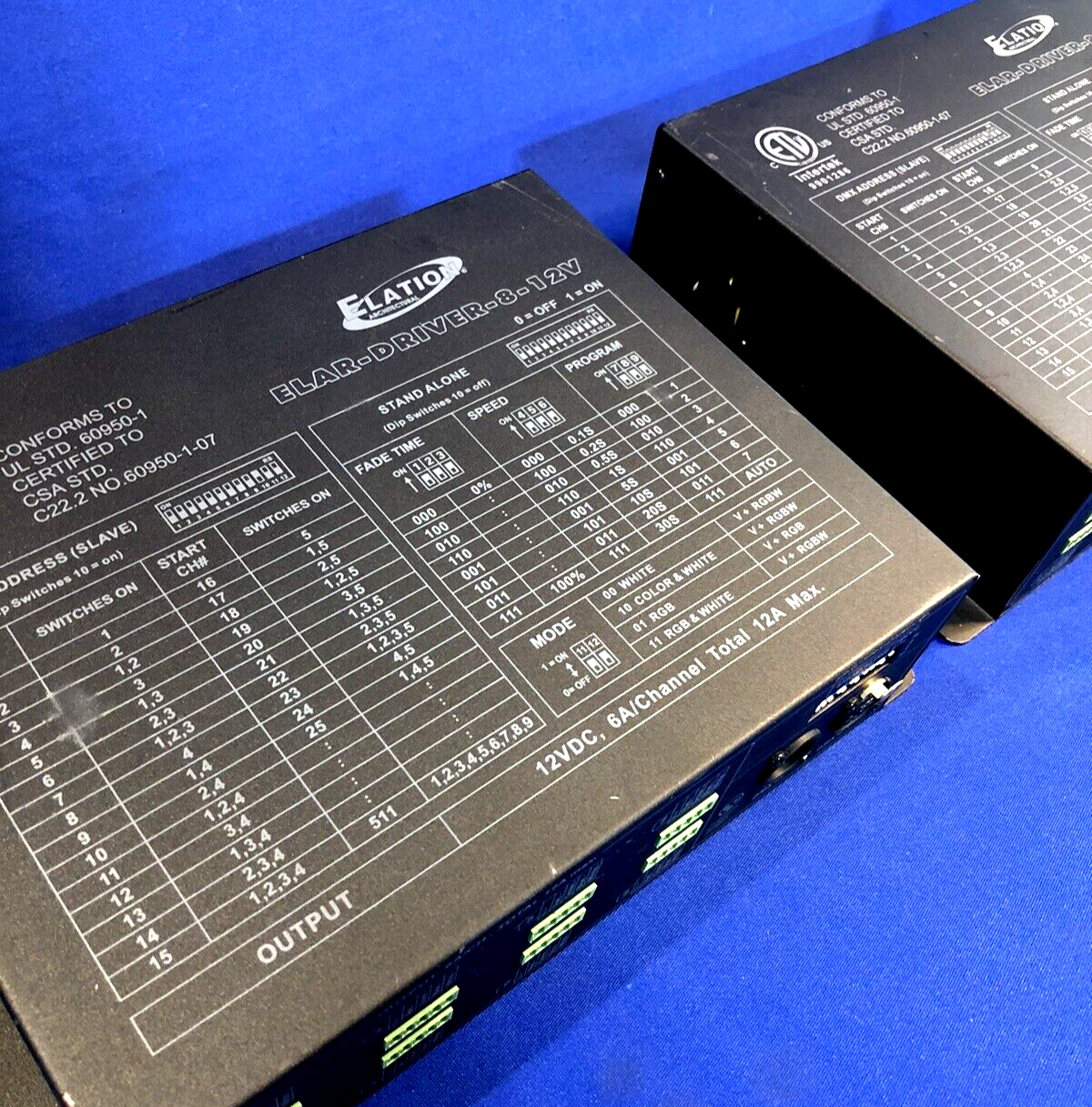

Listing is for TWO of the following:

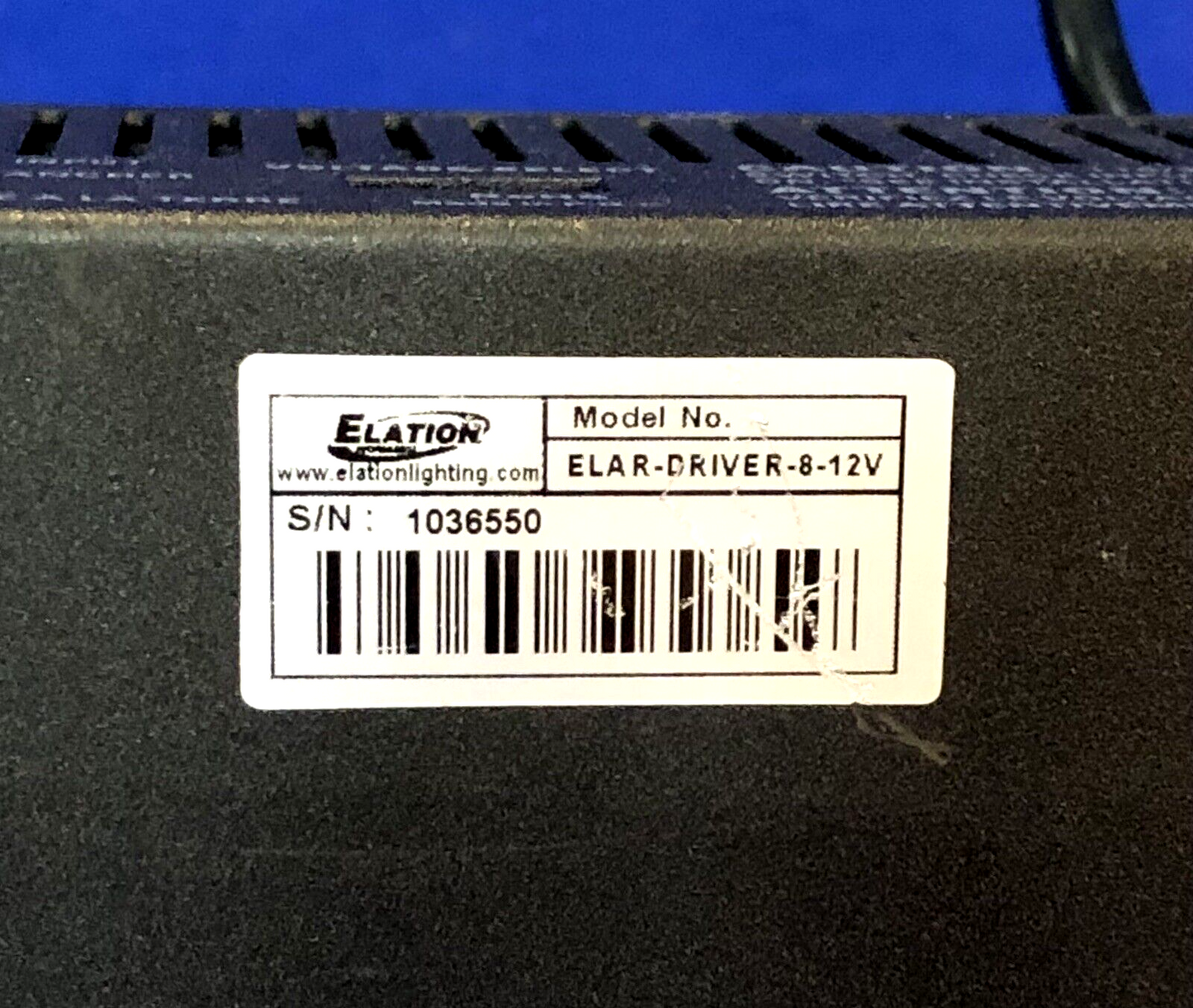

Elation ELAR-Driver-8-12V
The ELAR-DRIVER-8-12V™ is a high performance 150W 12VDC ETL listed RGBW LED DMX driver featuring 8 zone 32 channel DMX and manual stand alone control, 7 internal program macros and chase speed control, 0-100% dimming and fade time control, and 4 output modes including white, color and white, RGB, and RGB and white. The driver is contained in a compact powder coated sheet metal housing and includes (8) 5-wire 12-14 AWG terminal blocks, 3pin DMX in/out, 12 dip switches for DMX addressing and mode setting, and provides 150W 12VDC 12A max power output via an internal universal 120V or 240V 50/60Hz power supply.
FEATURES
High Performance 150W 12VDC RGBW LED DMX Driver
DMX and Manual Stand Alone Modes
7 Internal Program Macros and Chase Speed Control
0-100% Dimming and Fade Time Control
4 Output Modes: White, Color + White, RGB, RGB + White
Universal 120V-240V 50/60Hz Internal Power Supply
CONTROL / CONNECTIONS
8 Zone / 32 DMX Channels
Manual and DMX-512 Mode

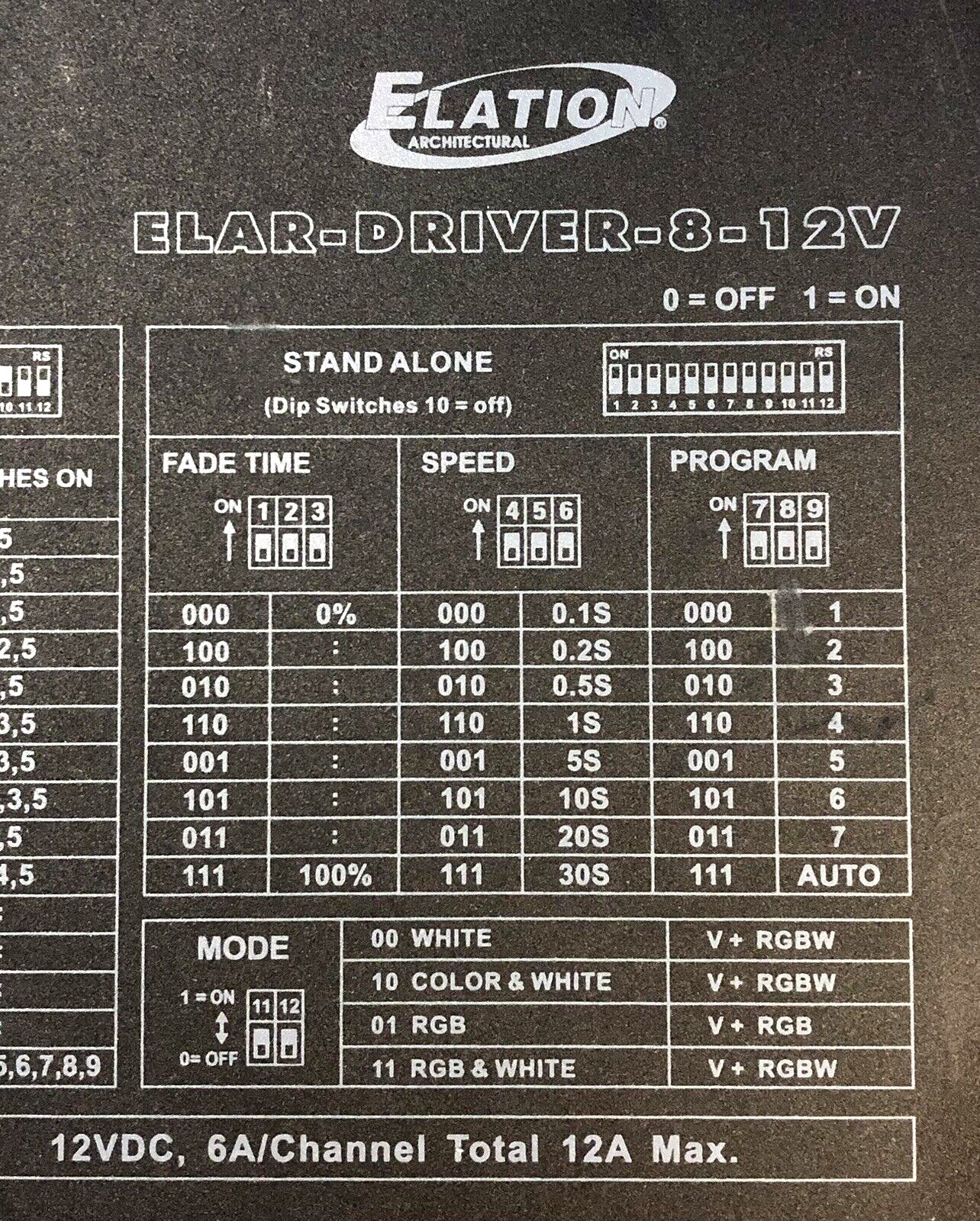

12 Dip Switches

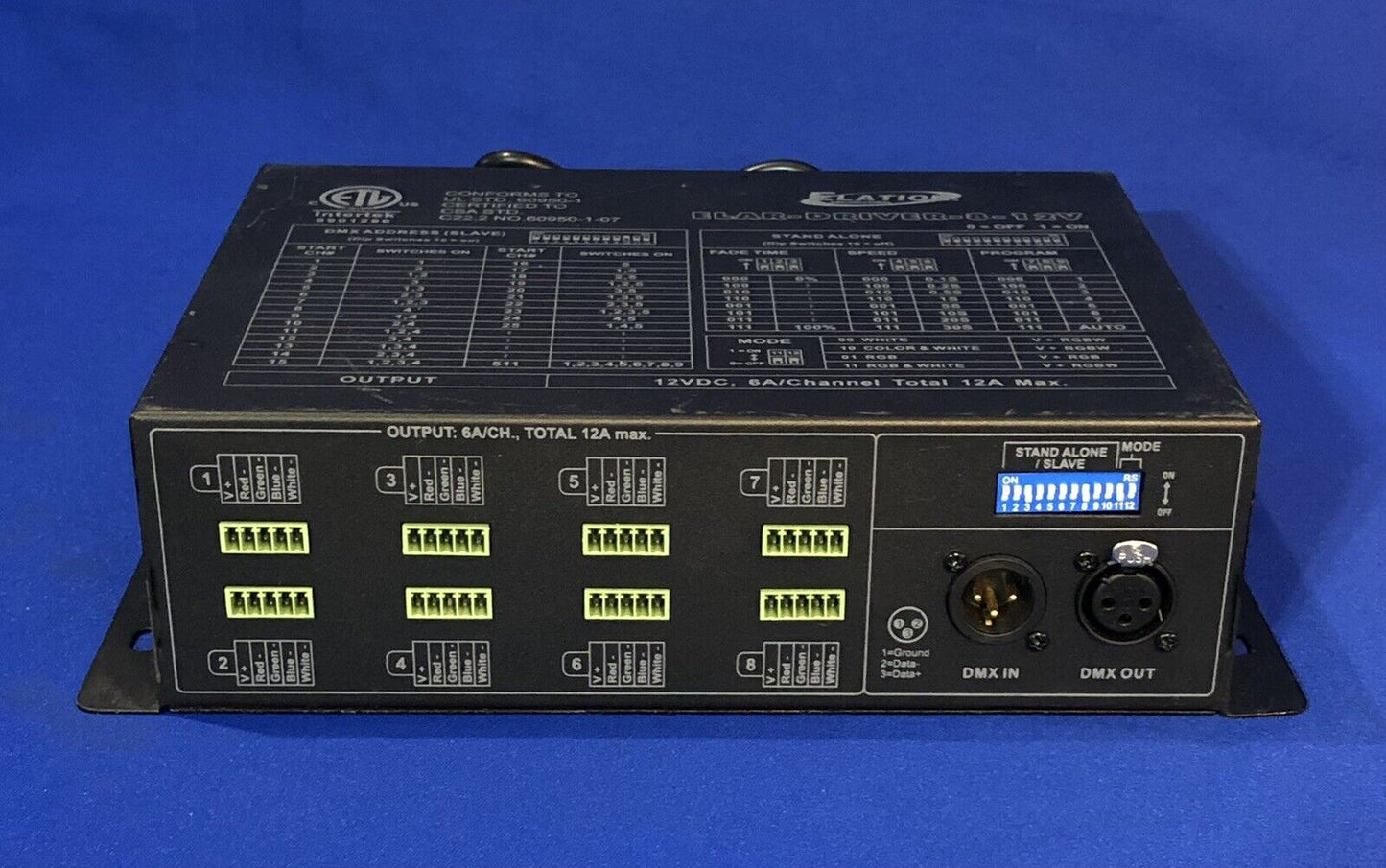

DMX IN/OUT via 3pin XLR

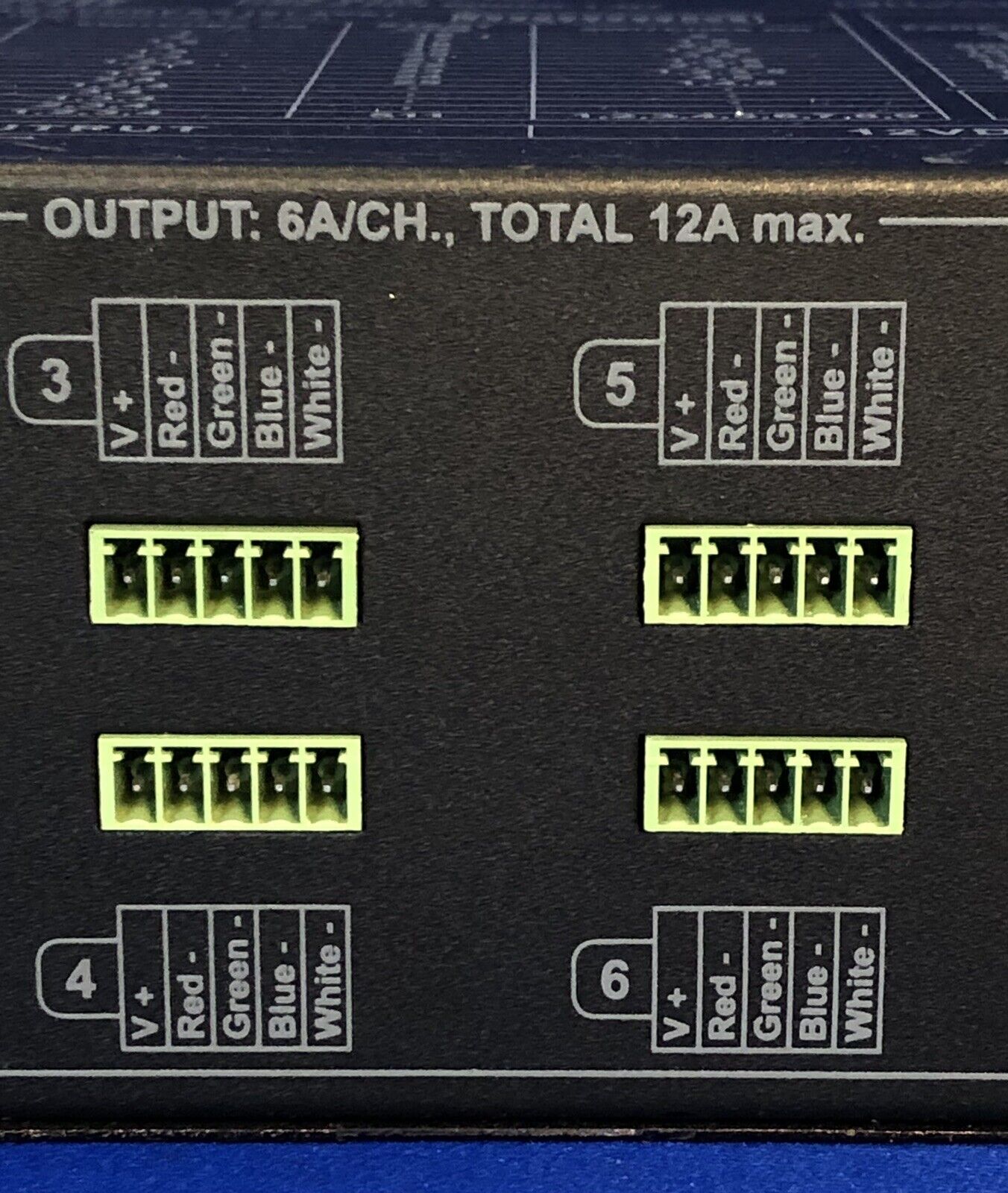

(8) 5-Wire 12-14 AWG Terminal Blocks (included)
SIZE / WEIGHT
Length: 11.2” (285.5mm)
Width: 5.7” (146mm)
Vertical Height: 3.0” (76mm)
Weight: 4.0 lbs. (1.81kg)
ELECTRICAL / THERMAL
Power Input: 110-120VAC (3.0A) | 220-240VAC (1.7A) 50/60Hz
Power Output: 12VDC 150W 4A/Channel Max
32°F to 104°F (0°C to 40°C)
Additional Info:
https://www.elationlighting.com/elar-driver-8-12v
* Includes only what is shown in pictures
* If applicable, the current registration, calibration, licensing, software, programming, or preventative maintenance has probably expired on this unit by now. Buyer may need to reset or register this device, purchase licensing and/or software prior to configuration & usage
* Please note that items are NOT included unless listed in writing or pictured such as: passwords, reset, device registration, programming, Unlock/Access/Key codes, software, drivers, speed controllers, power supplies, manuals, cords, etc.
* Please note that 3D printers, whether new or used, require tuning and calibration to print properly. They typically do not produce ideal prints 'out of the box' until the operator adjusts settings and hardware for the printer, slicing software, 3D model, and specific filament type.
The ELAR-DRIVER-8-12V™ is a high performance 150W 12VDC ETL listed RGBW LED DMX driver featuring 8 zone 32 channel DMX and manual stand alone control, 7 internal program macros and chase speed control, 0-100% dimming and fade time control, and 4 output modes including white, color and white, RGB, and RGB and white. The driver is contained in a compact powder coated sheet metal housing and includes (8) 5-wire 12-14 AWG terminal blocks, 3pin DMX in/out, 12 dip switches for DMX addressing and mode setting, and provides 150W 12VDC 12A max power output via an internal universal 120V or 240V 50/60Hz power supply.
FEATURES
High Performance 150W 12VDC RGBW LED DMX Driver
DMX and Manual Stand Alone Modes
7 Internal Program Macros and Chase Speed Control
0-100% Dimming and Fade Time Control
4 Output Modes: White, Color + White, RGB, RGB + White
Universal 120V-240V 50/60Hz Internal Power Supply
CONTROL / CONNECTIONS
8 Zone / 32 DMX Channels
Manual and DMX-512 Mode
12 Dip Switches
DMX IN/OUT via 3pin XLR
(8) 5-Wire 12-14 AWG Terminal Blocks (included)
SIZE / WEIGHT
Length: 11.2” (285.5mm)
Width: 5.7” (146mm)
Vertical Height: 3.0” (76mm)
Weight: 4.0 lbs. (1.81kg)
ELECTRICAL / THERMAL
Power Input: 110-120VAC (3.0A) | 220-240VAC (1.7A) 50/60Hz
Power Output: 12VDC 150W 4A/Channel Max
32°F to 104°F (0°C to 40°C)
Additional Info:
https://www.elationlighting.com/elar-driver-8-12v
* Includes only what is shown in pictures
* If applicable, the current registration, calibration, licensing, software, programming, or preventative maintenance has probably expired on this unit by now. Buyer may need to reset or register this device, purchase licensing and/or software prior to configuration & usage
* Please note that items are NOT included unless listed in writing or pictured such as: passwords, reset, device registration, programming, Unlock/Access/Key codes, software, drivers, speed controllers, power supplies, manuals, cords, etc.
* Please note that 3D printers, whether new or used, require tuning and calibration to print properly. They typically do not produce ideal prints 'out of the box' until the operator adjusts settings and hardware for the printer, slicing software, 3D model, and specific filament type.
