RAM Mounts
[ SET of 5 ] RAM MOUNTS C Size 1.5" Ball 2.5" Round/Rectangle RAM-101U-225-XAT1
[ SET of 5 ] RAM MOUNTS C Size 1.5" Ball 2.5" Round/Rectangle RAM-101U-225-XAT1
Regular price
$171.00
Regular price
Sale price
$171.00
Unit price
/
per
[ SET of 5 ]
RAM MOUNT KITS
PN# RAM-101U-225-XAT1
NEW IN MFR PACKAGING
( one was opened for confirmation pictures )

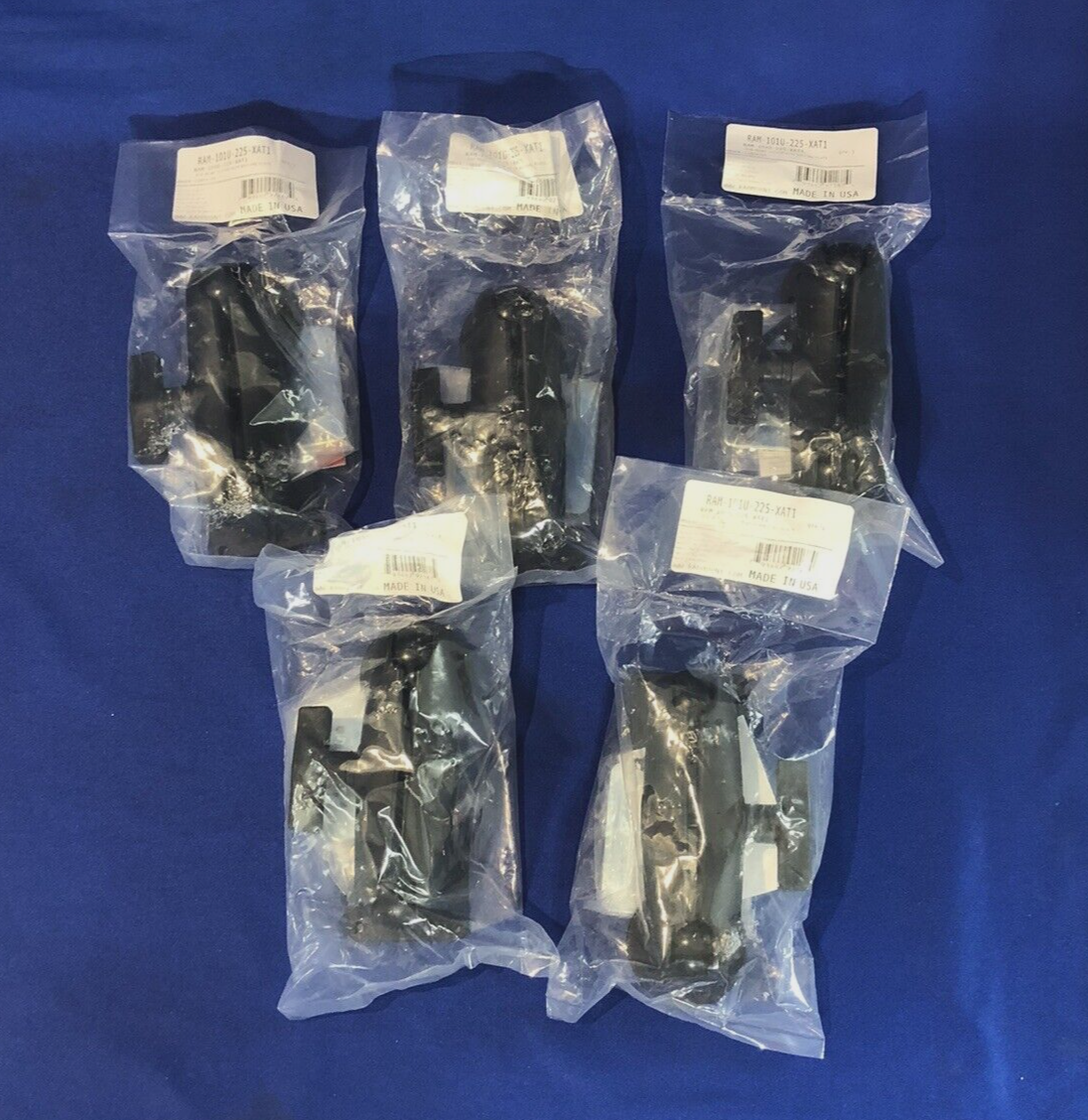

Listing is for FIVE (5) of the following:
RAM-101U-225-XAT1 RAM Mount Kits

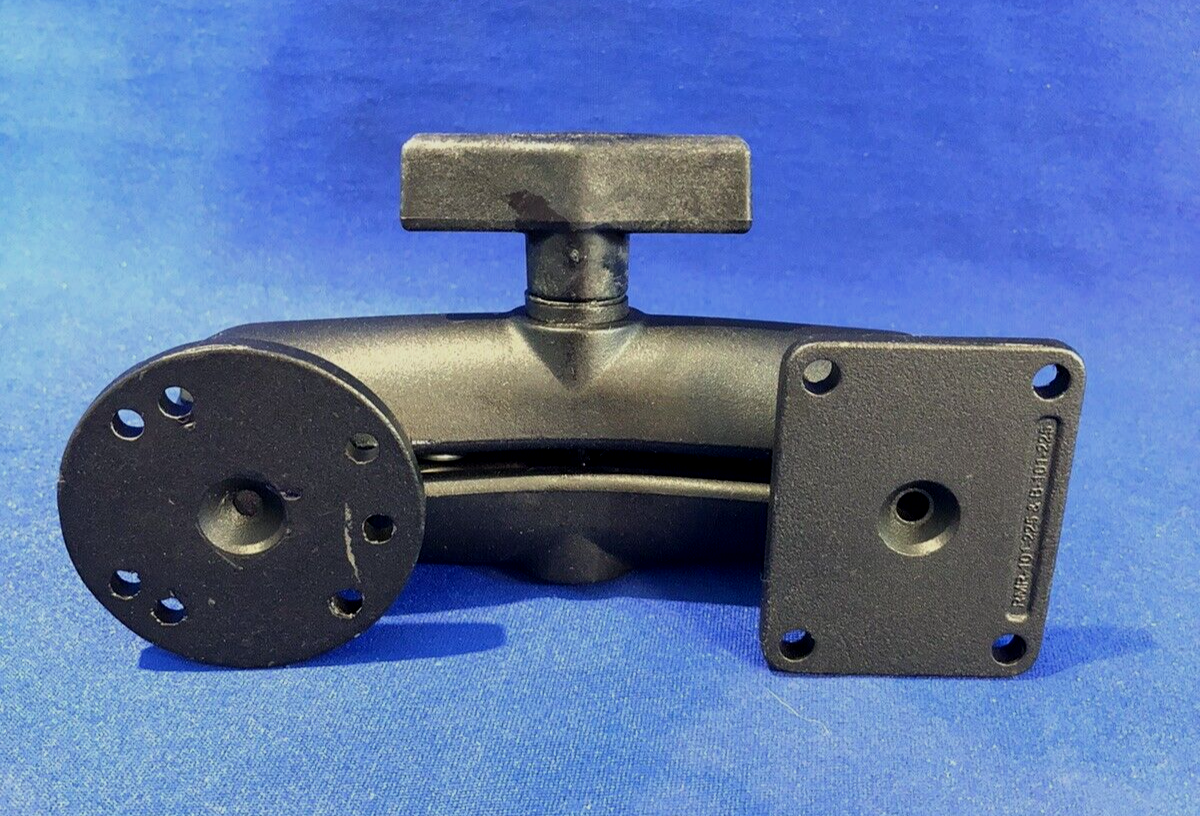

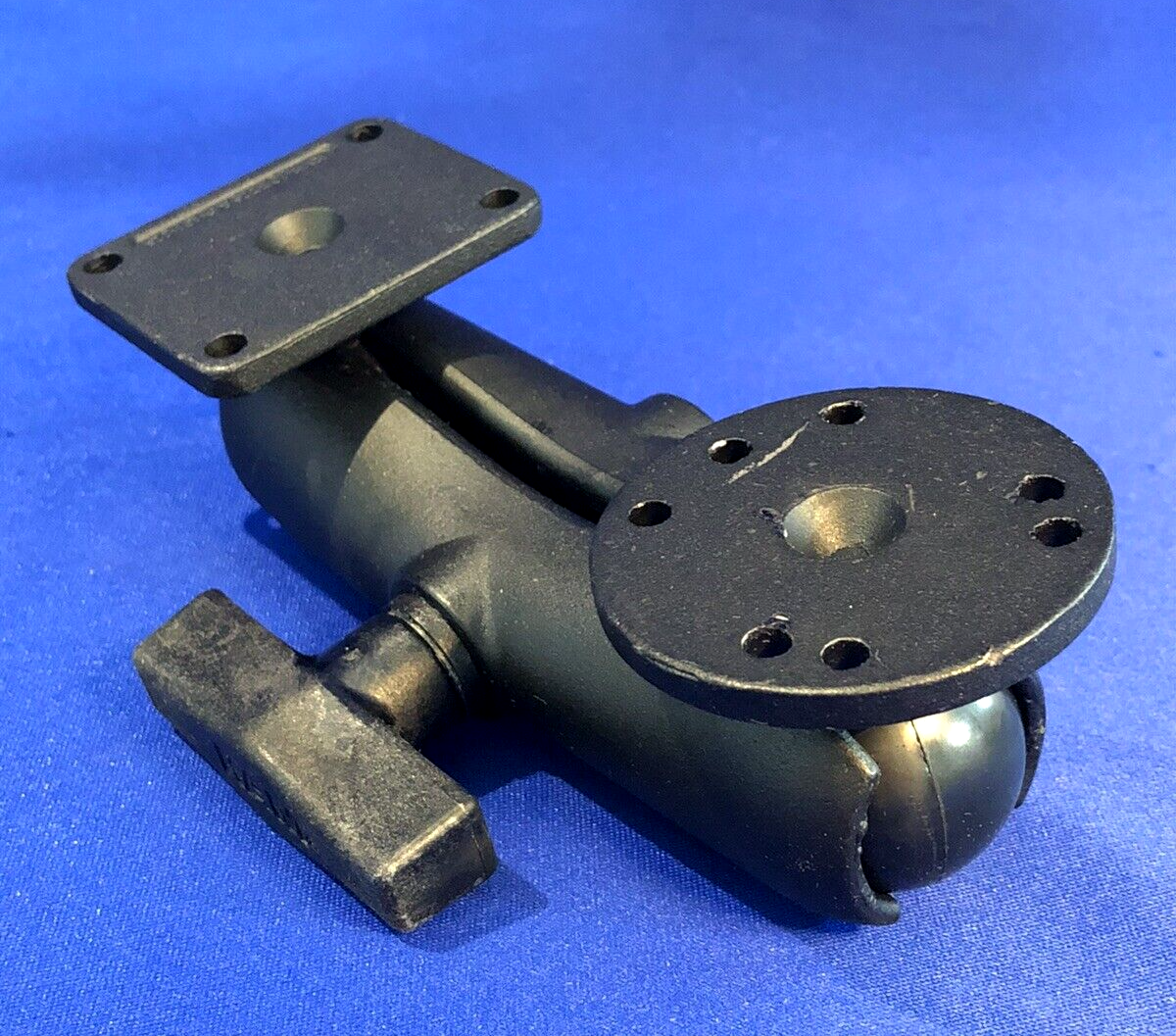

The RAM-101U-225-XAT1, powder coated marine grade aluminum mount, consists of a double socket arm mount, one round 2.5" diameter round base with the universal AMPS hole pattern and one 2 x 2.5" rectangular base. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles. For most applications, mount will support up to ten pounds.
Warranty: Manufacturer's, RAM Mounts (National Products Inc.), Limited Life Time Warranty.
Color/Material: Black power coated marine grade aluminum.
Socket Ball Size: C-Ball Size = 1.5 inch Ball. Maximum suggested weight 10 lbs.
Base Plate: RAM-202U-225 2 inch X 2.5 inch base with 4 pre-drilled holes at each corner.

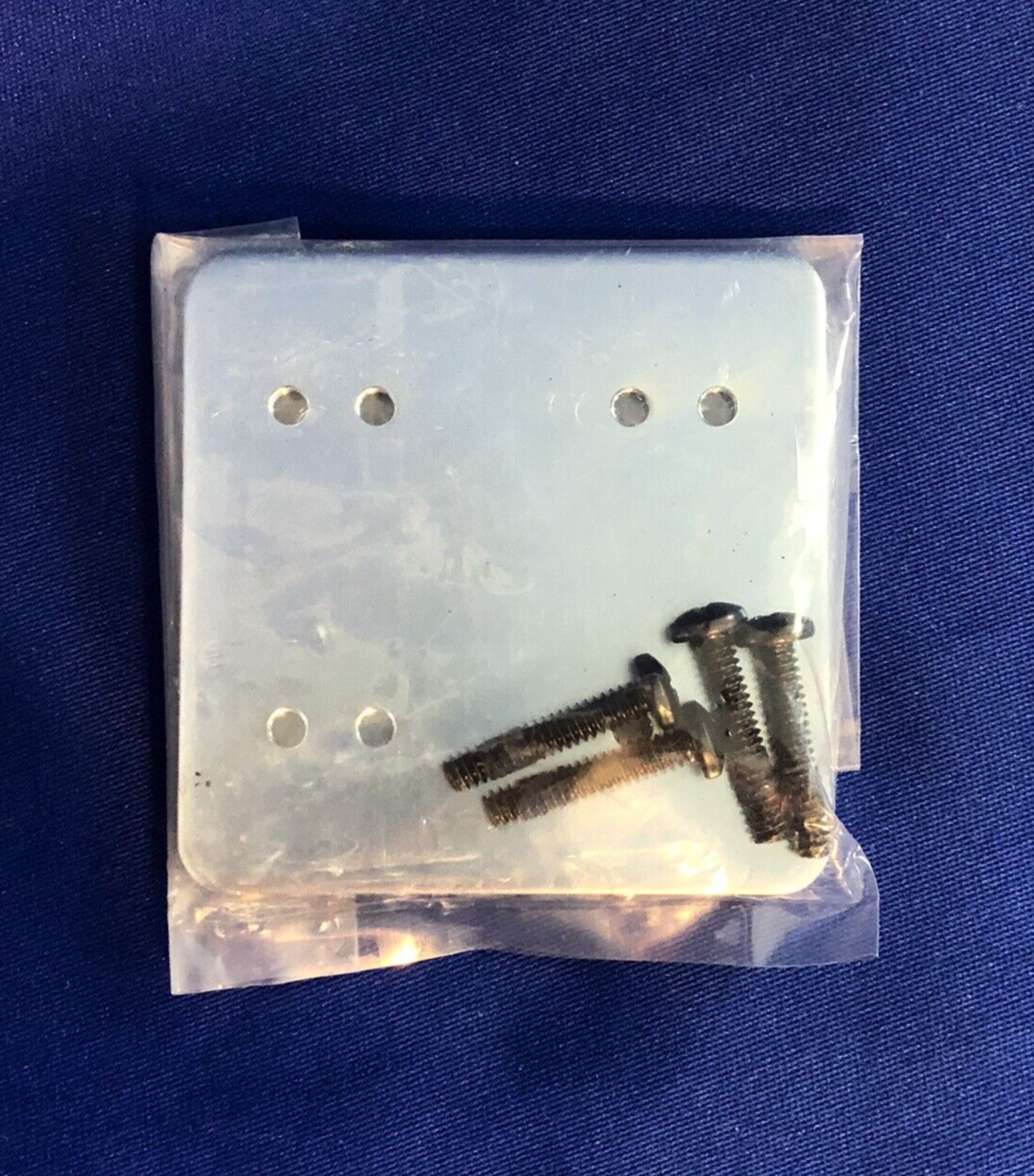

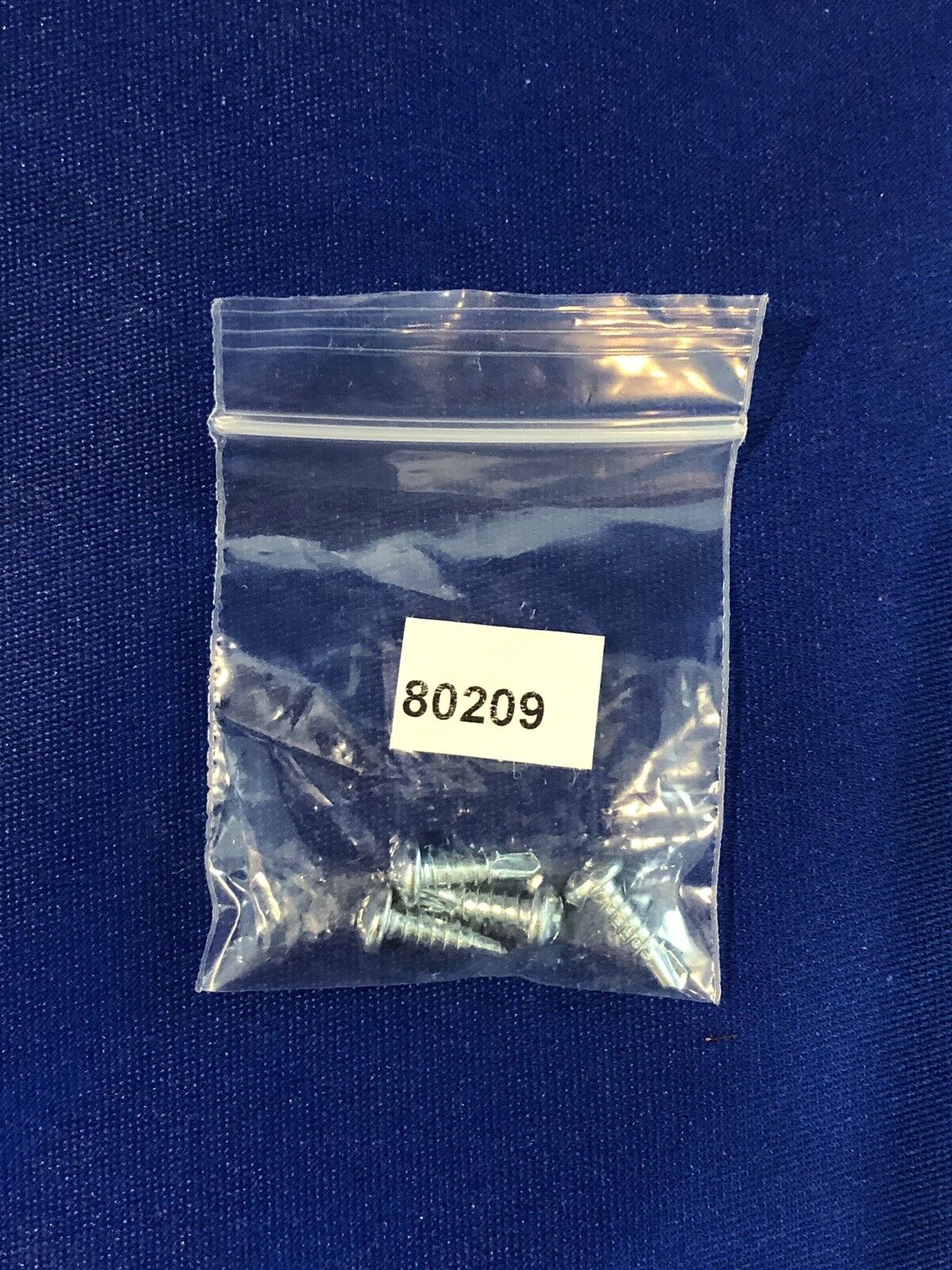

Backing Plate: RAM-202-225BU 3” x 3” steel backer plate with 10-24 threaded holes. Purchase Includes: (QTY. 1), 3” x 3” steel backer plate with 8 x 10-24 tapped holes, AMPS and 1.5” x 2” hole patterns (QTY. 4), 10-24 x 1” pan head, phillips drive screws with thread locker applied (QTY. 4), 10-24 black zinc plated nylock nuts

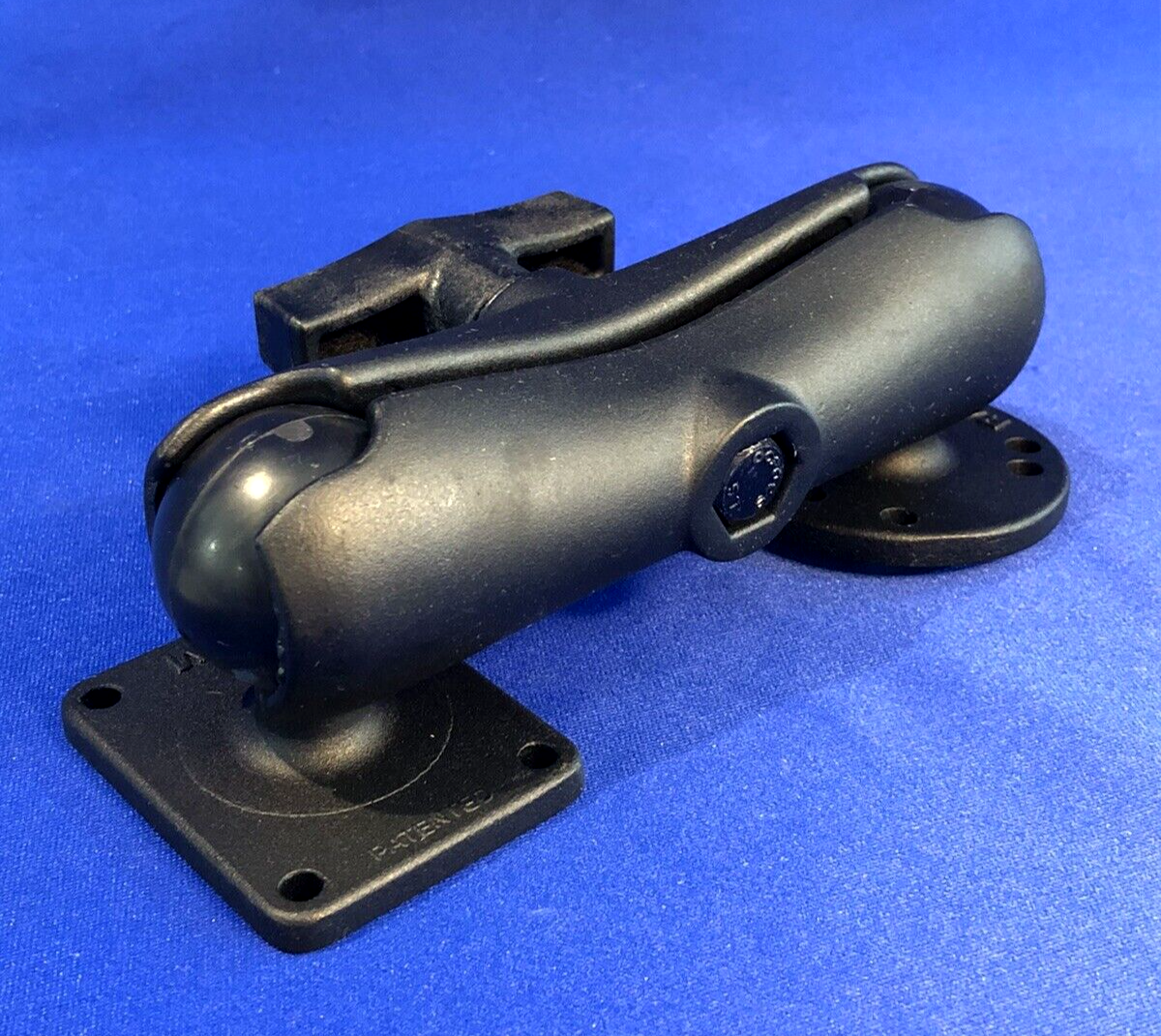

Arm: RAM-201U standard sized length sized arm for 1.5 inch balls. The arm measures 4.55 inches between socket centers (5.625 inches in overall length). A plastic twist knob allows you to articulate the arm in any direction.
Adapter Plate: RAM-202U 2.5 inch diameter base with pre-drilled holes and 1.5 inch diameter rubber ball. The pre-drilled holes accommodate the AMPS hole pattern.
Overall Length: 7.35 inches at maximum extension and the mount is collapsible.
Additional Info:
https://www.synergymountingsystems.com/products/ram-101u-225-xat1-ram-mounts-c-size-1-5-ball-with-2-5-round-plate-2-x-2-5-rectangular-plate-and-backing-plate?variant=12500053753959

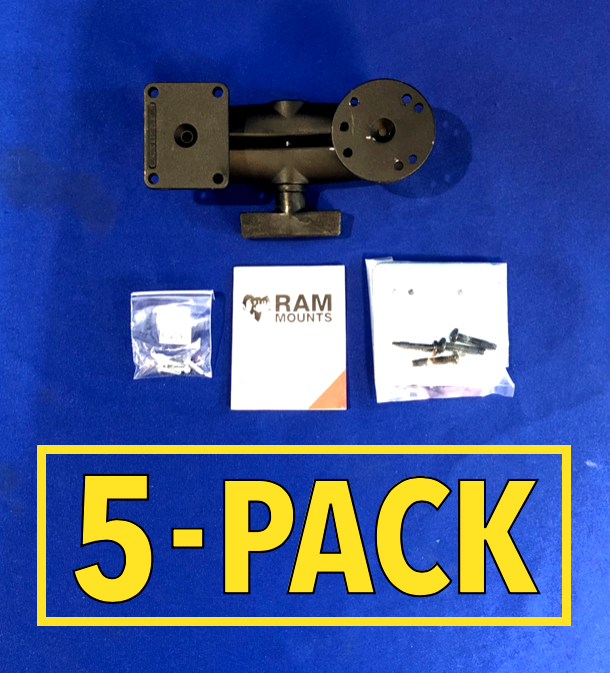

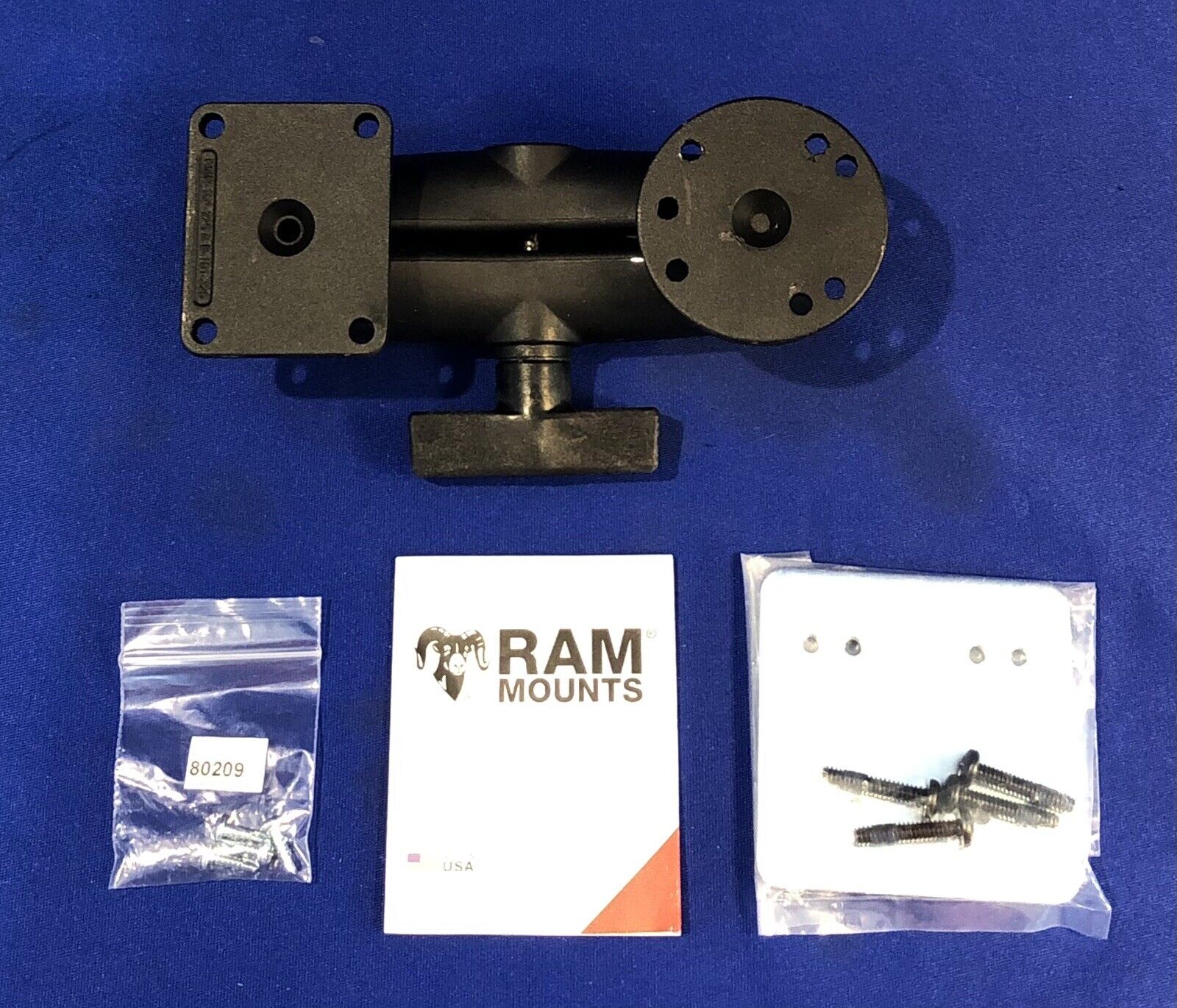

* Includes only what is shown in pictures
The RAM-101U-225-XAT1, powder coated marine grade aluminum mount, consists of a double socket arm mount, one round 2.5" diameter round base with the universal AMPS hole pattern and one 2 x 2.5" rectangular base. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles. For most applications, mount will support up to ten pounds.
Warranty: Manufacturer's, RAM Mounts (National Products Inc.), Limited Life Time Warranty.
Color/Material: Black power coated marine grade aluminum.
Socket Ball Size: C-Ball Size = 1.5 inch Ball. Maximum suggested weight 10 lbs.
Base Plate: RAM-202U-225 2 inch X 2.5 inch base with 4 pre-drilled holes at each corner.
Backing Plate: RAM-202-225BU 3” x 3” steel backer plate with 10-24 threaded holes. Purchase Includes: (QTY. 1), 3” x 3” steel backer plate with 8 x 10-24 tapped holes, AMPS and 1.5” x 2” hole patterns (QTY. 4), 10-24 x 1” pan head, phillips drive screws with thread locker applied (QTY. 4), 10-24 black zinc plated nylock nuts
Arm: RAM-201U standard sized length sized arm for 1.5 inch balls. The arm measures 4.55 inches between socket centers (5.625 inches in overall length). A plastic twist knob allows you to articulate the arm in any direction.
Adapter Plate: RAM-202U 2.5 inch diameter base with pre-drilled holes and 1.5 inch diameter rubber ball. The pre-drilled holes accommodate the AMPS hole pattern.
Overall Length: 7.35 inches at maximum extension and the mount is collapsible.
Additional Info:
https://www.synergymountingsystems.com/products/ram-101u-225-xat1-ram-mounts-c-size-1-5-ball-with-2-5-round-plate-2-x-2-5-rectangular-plate-and-backing-plate?variant=12500053753959
* Includes only what is shown in pictures
